Automotive Lift. Worth Lifts. Quality American made two post, 2 post lift, 4 post lift, four post lifts. Wheel alignment lift, alignment lift, aligner lift. From 7,000 pounds to 100,000 pounds. We ship world wide. Car lift, truck lift, above ground lift, auto lifter. New and used lifts in stock. Made in the United States. Beware of "cheap" imports from the orient. Some companies install a US motor and then tell you the lift is made in America. Demand a "certificate" stating the origin of the lift, they won't give you one.

Click to see Like New Hunter L421 14,000lb. Open front alignment Rack



  Back to Service Index   Back to twin Post Lifts  Back to Used lifts   Click for Forklift 4 post Lift

Allstate's Of America, Inc.  2595 NW 37th. St. Miami, Fl. 33142      800 223 2573      Fax 305 635-5353                        Voice  305 635-4525                e-mail to   Bob@allstates.com



CLICK FOR SUPER HEAVY DUTY 4 POST 40,000LBS  TO 100.000LBS



CLICK TO SEE HEAVY DUTY FORKLIFT 4 POST LIFT




Bendpak   12,000 lbs. scissor alignment lift, jacks, plates, late model  $9,500.00



ALIGNMENT COMPUTER AND LIFT COMBINATION DEALS
RECONDITIONED JOHN BEAN 12,000 LB. SCISSOR LIFT, JACKS, PLATES AND JOHN BEAN RED V3D CAMERA  SYSTEM, UPDATED, 90 DAY WARRANTY  $20,000.00
ALLSTATES NEW 9,000 LB. SCISSOR ALIGNMENT LIFT, JACKS, PLATES AND HUNTER S811 / DSP600 CAMERA SYSTEM LIKE NEW   $22,000.00
HUNTER 16,000 LB. PARRALELOGRAM RL/HD ALIGNMENT LIFT, JACKS, PLATES, AND HUNTER K111 COMPUTER DSP 200 SENSORS,   $18,500.00
HUNTER RX12,000 SCISSOR LIFT, JACKS, PLATES AND HUNTER S811 WITH DSP600 CAMERA SYSTEM $28,000.00
HUNTER 14,000 LB. 4 POST LIFT, JACKS, PLATES AND HUNTER R611 WITH DSP400 CAMERA SYSTEM, $21,000.00
HUNTER RL PARRALELOGRAM LIFT, JACKS, PLATES AND HUNTER R611 DSP250 SENSORS  $15,500.00
AMMCO PARRALELOGRAM LIFT, JACKS, PLATES AND JOHN BEAN V7 COMPUTER, SENSORS  $11,000.00
HUNTER 811T WITH DSP506XF WIRELESS SENSORS LARGE TRUCK MACHINE WITH 27,000 LB BENDPAK LIFT, JACKS, PLATES $27,500.00
ROTARY 12,000 LB. 4 POST OPEN FRONT ALIGNMENT RACK, JACKS, PLATES AND HUNTER 311 COMPUTER WITH DSP250 SENSORS $16,000.00









Wheel Alignment Lifts

Hunter RMHD-43 • 16,000 lb. Capacity
Heavy Duty Alignment, Parallelogram Style


Features

  • 16,000 pound lifting capacity
  • 2 Swing air jacks 8,000 capacity
  • Louvered ramps prevent wheel spin
  • Approach ramps 18"
  • Air line kit in front and rear
  • Movable work steps
  • Clear access to all sides
  • Control panel electronics ensure lift is level
  • Rises 65" work height and locks at any of 20 positions
  • Flush-mounted, full-floating slip plates are 80" long


Specifications

  • Lift Style: Heavy Duty Alignment, Parallelogram
  • Lifting Capacity: 16,000 lbs.
  • Max. Wheelbase: General Service 190.5"
  • Two-Wheel Alignment: 177.5"
  • Four Wheel Alignment: 158"
  • Min. 4-Wheel Alignment: 88"
  • Max. Lifting Height 72"
  • Runway Width: 22.5"
  • Lowered Height: 9"
  • Tread Width: Minimum Inside 40"
  • Tread Width: Maximum Outside 88"
  • Alignment Height: All Lock Positions
  • Electrical: 208-230 Volt, Single Phase, 60 Hertz
  • Air: 90-120 PSI

Late Model, original paint RM/HD

ALIGNMENT RACK, 2 JACKS, PLATES



ROTARY 12,000 LB.  OPEN FRONT 4 POST ALIGNMENT RACK JACKS PLATES



COMBO HUNTER S811  DSP600 CAMERA SYSTEM HUNTER RX9000L SCISSOR RACK, LATE MODEL




Click to see  Hunter RL 8000 LB.  ALIGNMENT LIFTS

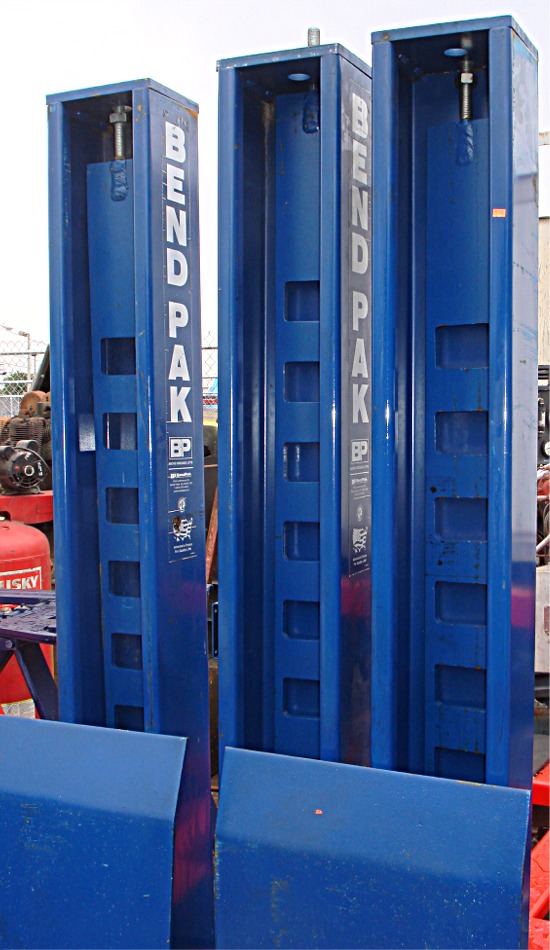

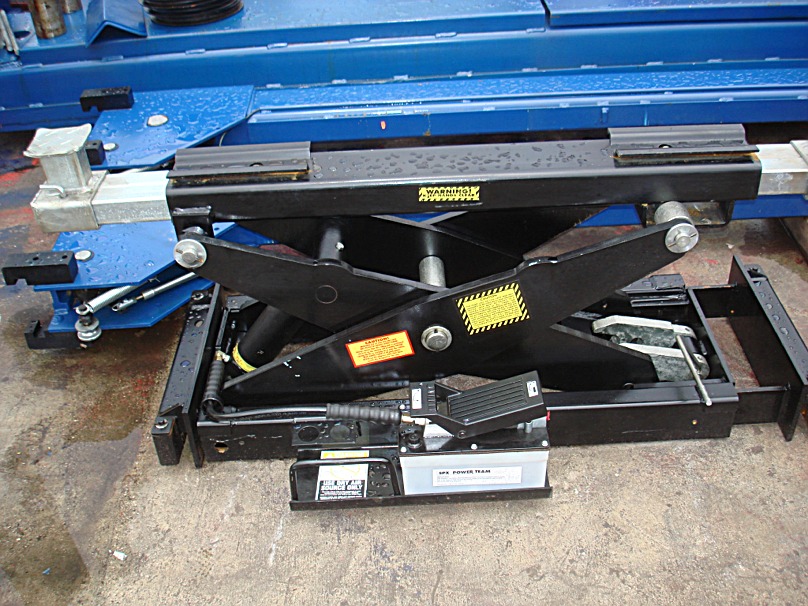

BENDPACK 27,000 lb. alignment rack. hardly used. 15,000 lb. jacks

Four-Post Lift

Model (s)  / HD-27A / HD-27XA / HD-35A / HD-35XA

• 18,000, 27,000 and 35,000-pound lifting capacity

• Runways include rail-kit for optional accessories

• Electric/hydraulic power system

• Heavy-duty turn plates included

• Integrated rear slip-plates

• Automatic leveling system

• Single hydraulic cylinder mounted underneath runway

• Internal “Anti-Sway’ slider blocks in each column

• Features heavy-duty aircraft cable

• Oversized self-lubricating cable rollers

• Rugged 4” main sheave axles

• Multi-position safety locks in each column

• Multi-position , adjustable height safety locks in each column

• Ramps feature non-skid surface

• Push-button safety release

• Runways adjust for different tread widths

• Optional drive-thru ramps available

• Optional 9K, 12K, 15K-pound capacity rolling jacks available

• ETL Approved / Pending

MODEL HD-18A HD-27A HD-27XA HD-35A HD-35XA

Lifting Capacity* . 27,000 lbs. / 12,247 Kg. 27,000 lbs. / 12,247 Kg. 35,000 lbs. / 15,876 Kg. 35,000 lbs. / 15,876 Kg.

*Max Capacity / s. / 4082 Kg. 13,500 lbs. / 6,124 Kg. 13,500 lbs. / 6,124 Kg. 17,500 lbs. / 7,938 Kg. 17,500 lbs. / 7,938 Kg.

*Max Capacity / . / 4082 Kg. 13,500 lbs. / 6,124 Kg. 13,500 lbs. / 6,124 Kg. 17,500 lbs. / 7,938 Kg. 17,500 lbs. / 7,938 Kg.

A - Overall Width . 154" / 3912 mm. 154" / 3912 mm. 154" / 3912 mm. 154" / 3912 mm.

B - Outside Length 201" / 5105 mm. 257" / 6528 mm. 317" / 8052 mm. 257" / 6528 mm. 317" / 8052 mm.

C - Overall Length 241" / 6121 mm. 297" / 7544 mm. 357" / 9068 mm. 297" / 7544 mm. 357" / 9068 mm.

D - Height of Columns 93” / 2362 mm. 93” / 2362 mm. 93” / 2362 mm. 93” / 2362 mm. 93” / 2362 mm.

E – Min. Runway Height 10-1/2” / 267 mm. 10-1/2” / 267 mm. 10-1/2” / 267 mm. 10-1/2” / 267 mm. 10-1/2” / 267 mm.

F – Max. Rise 60” / 1524 mm. 60” / 1524 mm. 60” / 1524 mm. 60” / 1524 mm. 60” / 1524 mm.

G - Max. Lifting Height 70-1/2” / 1791 mm. 70-1/2” / 1791 mm. 70-1/2” / 1791 mm. 70-1/2” / 1791 mm. 70-1/2” / 1791 mm.

H - Width Between Columns 134" / 3404 mm. 134" / 3404 mm. 134" / 3404 mm. 134" / 3404 mm. 134" / 3404 mm.

I - Runway Width 22" / 559 mm. 22" / 559 mm. 22" / 559 mm. 28" / 711 mm. 28" / 711 mm.

38" - 56" 38" - 56" 38" - 56" 36" - 47" 36" - 47"

J - Width Between Runways (*) 965 mm. – 1422 mm. 965 mm. – 1422 mm. 965 mm. – 1422 mm. 914 mm. – 1194 mm. 914 mm. – 1194 mm.

K - Length of Runways 203" / 5156 mm. 263" / 6680 mm. 323" / 8204 mm. 263" / 6680 mm. 323" / 8204 mm.

L - Min. 4-Wheel Alignment (**) 83" / 2108 mm. 83" / 2108 mm. 83" / 2108 mm. 83" / 2108 mm. 83" / 2108 mm.

M - Max. 4-Wheel Alignment (**) 138" / 3505 mm. 138" / 3505 mm. 138" / 3505 mm. 138" / 3505 mm. 138" / 3505 mm.

N - Max 2-Wheel Alignment (**) 151" / 3835 mm. 211" / 5359 mm. 271" / 6883 mm. 211" / 5359 mm. 271" / 6883 mm.

Lock Spacing Every 6" / 152 mm. Every 6" / 152 mm. Every 6" / 152 mm. Every 6" / 152 mm. Every 6" / 152 mm.

Lifting Time 75 Seconds 75 Seconds 75 Seconds 75 Seconds 75 Seconds

Standard Motor (**) 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph. 220 VAC / 60 Hz. 1Ph.








ROTARY 4 POST, 10,000LB. LIFT. ABSOLUTELY LIKE NEW, BARELY USED.

$3,400.00  INCLUDES RAILS FOR SLIDING JACKS. JACKS ARE NOT INCLUDED



CAN BE CONVERTED TO ALIGNMENT LIFT.

USED JACKS ARE AVAILABLE

                                      SOLD





  BENDPAK 12,000LB. 4 POST LIFT. RECONDITIONED $3,000.00



Worth 4 post lifts, closed front Models 12000 - 12000E - 18000E

Single Point Safety Release is standard on all worth 4-Post lifts. This is a very convenient feature to keep technicians from having to walk to each post to release the safeties.

Heavy I-Beam runways available in 14" or 22" width.
Worth 12,000 pound Open Front Alignment lift and 18,000 pound Alignment lift. Feature rails for optional sliding jacks. 3 H.P. motor is standard. All chain design. ( No cables to replace or adjust.) Both runways are completely adjustable to accommodate narrow vehicles as well as wider trucks. Full electric-hydraulic power. No air required to operate. Rear slip plates are included and built-in. Front beam is placed well behind the turn plates, which makes performing the alignment and associated repairs much easier. the advantage of an open-front without the high cost.

new model 12000AX Extended ramp length in front allows two positions for the front turn-plates. Includes filler plates for the position that is not in use. Adds 15" extra capacity.

18000AX Adds the same extra 15" capacity to the 18,000pound model

HIGHEST-QUALITY-LOWEST PRICE- AMERICAN MADE

Worth 12,000lb. alignment lift with F350 diesel dually service truck

Model 12000A



25,000 and 30,000 pound models

Automatic Back-Up Safeties are standard on all Worth 4-Post lifts. They are located in each post and automatically engage at any height for added protection.

Rolling Air Jacking Beams are available in 8000, 15,000 and 20,000 pound capacities.

Three horsepower motor is standard on all Worth 4-Post lifts.

26 gallon rolling Oil Drain Pan is Optional on all 4 post lifts. (requires optional rails on Non alignment lifts). It is ideal for performing all types of fluid services, including transmission, oil, differential, or cooling systems.



LIFT SPECIFICATIONS


Model number 12000 12000E 18000E 25000 30000
Overall Width (A) 11' 4" 11' 4" 11' 4" 11' 10" 11' 10"
Overall Length (B) 17' 10" 19' 6" 19' 6" 25' 2" 25' 2"
Rise (including Runway) 78" 78" 78" 70" 70"
Ramp Width (C) 14" 14" 14" 24" 24"
Wheelbase 172" 192" 192" 240" 240"
Clearance between Post (D) 120" 120" 120" 120" 120"
Lifting Capacity (lbs.) 12000 12000 18000 25000 30000
Motor 3HP 3HP 3HP 3HP 3HP
Voltage (Single Phase ) 60 Hz. 220 220 220 220 220
Shipping Weight 9lbs.) 2680 2800 3500 5900 6600

ALIGNMENT LIFT SPECIFICATIONS

   12000A  12000AX

extended

 18000A   18000AX

extended

   25000A*            30000*
Overall Width (A) 11' 4"   11' 4"   11' 10" 11' 10"
Overall Length (B) 21' 8"   21' 8"   25' 2" 25' 2"
Rise (Including runway) 78"   78"   70" 70"
Wheelbase 2-Wheel Align 187" 202" 187" 202" 235" 235"
Wheelbase 4-Wheel Align 83"-143" 83"-158" 83"-143" 83"-158" N/A N/A
Ramp Width (C) 22"   22"   24" 24"
Clearance between Post (D) 120"   120"   120" 120"
Lifting capacity (lbs.) 12000   18000   25000 30000
Motor 3hp   3hp   3hp 3hp
Voltage (Single-Phase) 60 Hz. 220   220   220 220
Shipping Weight (lbs.) 3400   3800   6140 6840



New 8800lb. scissor alignment lift including two sliding jacks and turnplates.

Price is $8,500.00

Max lifting height=  67 inch  in  55 seconds

220 volt single phase power

weight   =   4,000lbs.

ramps are 15 feet long, overall 16 feet







USED JOHN BEAN SCISSOR ALIGNMENT LIFT, two jacks, turnplates $9,000.00. Late model

also have an Omer with two jacks and plates , refurbished for $5,500.00



SCISSOR LIFT





KEY BENEFITS:

• Lifts straight up and down, no fore or aft movement. Maximum space efficiency
• Five scissors lifts use same space as Four 4-Post lifts
• Totally free undercar access between runways
• 7 alignment-level safety-locked working heights
• Turntable cutouts and integrated rear slip plates (alignment ready)
• Built-in air connections for air tools and roller jacks
• Two roller jacks standard with all models
• Back up safety systems: mechanical locks and hydraulic pressure safety valves
• Optional wiring kits for cordless operation between lift and the aligner
• ALI / ETL / CSA certified
• Front and rear safety stops
• Long, gradually sloping drive-on ramps


EQUIPMENT SPECIFICATIONS:

  48109B 48209B
Lifting capacity 9,000 lbs 9,000 lbs
Align WB capacity 144" 172"
Overall deck length 168" 198"
Maximum lifting height 72" 72"
Runway widths 24" 24"
Distance between runways 36" 36"
Level working heights 7 7
Shipping weight. 4,120 lbs 4,270 lbs
Roller Jacks 2-JBC145 2-JBC145
Electrical required 208-230v/1Ph 208-230v/1Ph
Site concrete requirement   3" concrete /
Bay size requirement 24’10" by 12’ 27'x12'
