TUBING BENDER ECONOMY MANDREL STYLE



  Back to Service Index     Back to Home    Back to Muffler Page

Allstate's Of America, Inc. 2595 NW 37TH. ST. MIAMI, FLORIDA 33142     800 223 2573,   305 635-4525  Fax 305 635-5353      e-mail    Bob@allstates.com                http://www.allstates.com

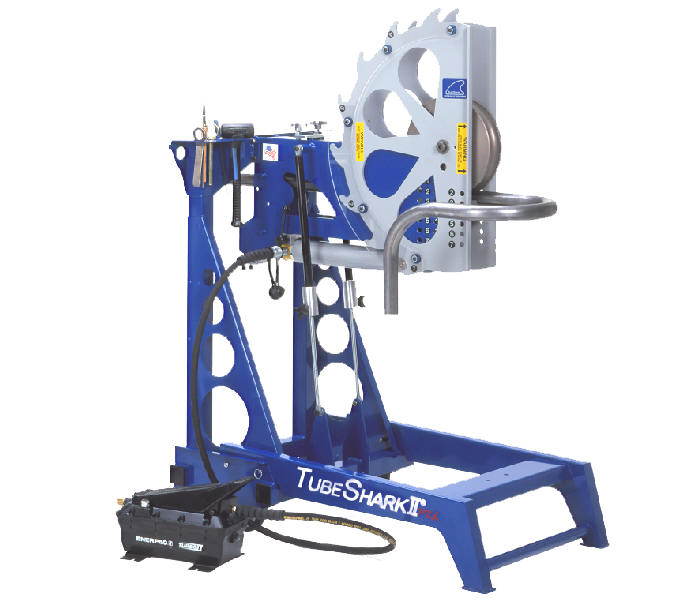

Tube® Bender with air/hydraulic power unit. Portable Tube® folds for storage/transport. Air/Hydraulic Power Unit connects to compressor.

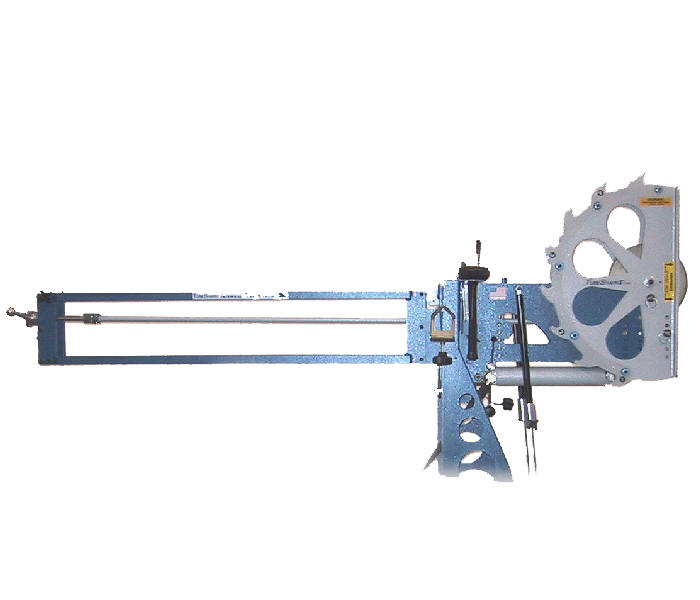

Electric/Hydraulic Power Unit provides faster bending for production applications. Many Die & Shoe Sets Available. ITS Internal Tube Support for tighter radius bends & thin wall tubing.

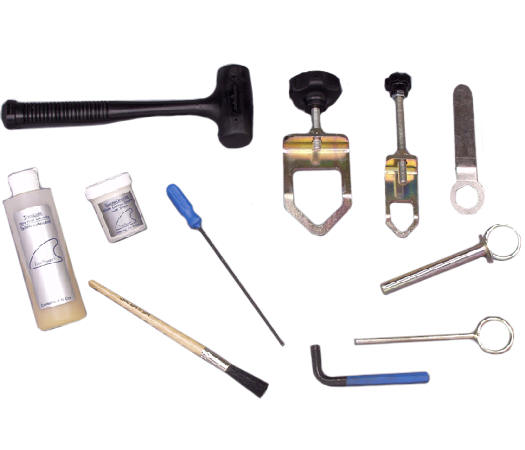

Tube® Bender with bench mount stand. Accessories-tools & lubricants available with your Tube® bender.







PART NUMBER DESCRIPTION PRICE


Benders and Power Units


TSA-2-1-0002* Tube® bender with pneumatic pump power unit. $3,230.00
TSA-2-1-0003* Tube® bender with commercial electric/hydraulic power unit. $4,705.00
TSA-2-1-0004* Tube® bender with pneumatic pump (bench mount) $2,395.00
TSP-1-0001* Commercial electric/hydraulic power unit $1,985.00


Round Tube Bending Dies Sets
(Complete 3 piece set)


TSTA-2-1-0003 2" OD tube bending die/shoe set on 8"R $544.00
TSTA-2-1-0001 2" OD tube bending die/shoe set on 6"R $464.00

TSTA-2-1-0007 1 3/4" OD tube bending die/shoe set on 8"R $544.00
TSTA-2-1-0005 1 3/4" OD  tube bending die/shoe set on 6"R $464.00
TSTA-2-1-0004 1 3/4" OD  tube bending die/shoe set on 5"R $439.00

TSTA-2-1-0012 1 5/8" OD  tube bending die/shoe set on 8"R $544.00
TSTA-2-1-0010 1 5/8" OD  tube bending die/shoe set on 6"R $464.00
TSTA-2-1-0009 1 5/8" OD  tube bending die/shoe set on 5"R $439.00

TSTA-2-1-0018 1 1/2" OD  tube bending die/shoe set on 8"R $544.00
TSTA-2-1-0016 1 1/2" OD  tube bending die/shoe set on 6"R $464.00
TSTA-2-1-0015 1 1/2" OD  tube bending die/shoe set on 5"R $439.00
TSTA-2-1-0014 1 1/2" OD  tube bending die/shoe set on 4"R $401.00

TSTA-2-1-0022 1 3/8" OD  tube bending die/shoe set on 6"R $460.00
TSTA-2-1-0021 1 3/8" OD  tube bending die/shoe set on 5"R $435.00
TSTA-2-1-0020 1 3/8" OD  tube bending die/shoe set on 4"R $401.00

TSTA-2-1-0028 1 1/4" OD  tube bending die/shoe set on 6"R $460.00
TSTA-2-1-0027 1 1/4" OD  tube bending die/shoe set on 5"R $435.00
TSTA-2-1-0026 1 1/4" OD  tube bending die/shoe set on 4"R $401.00

TSTA-2-1-0034 1" & 7/8" OD  tube bending die/shoe set on 6"R $472.00
TSTA-2-1-0033 1" & 7/8" OD  tube bending die/shoe set on 5"R $447.00
TSTA-2-1-0032 1" & 7/8" OD  tube bending die/shoe set on 4"R $438.00
TSTA-2-1-0031 1" & 7/8" OD  tube bending die/shoe set on 3"R $432.00

TSTA-2-1-0038 3/4" & 1/2" OD  tube bending die/shoe set on 4"R $438.00
TSTA-2-1-0037 3/4" & 1/2" OD  tube bending die/shoe set on 3"R $432.00




Pipe Bending Die Set
(Complete 3 Piece Set)


TSTA-2-1-0045 1 1/2" pipe die/shoe set on 8"R $544.00
TSTA-2-1-0043 1 1/2" pipe die/shoe set on 6"R $464.00

TSTA-2-1-0050 1 1/4" pipe die/shoe set on 8"R $544.00
TSTA-2-1-0048 1 1/4" pipe die/shoe set on 6"R $464.00
TSTA-2-1-0046 1 1/4" pipe die/shoe set on 4"R $452.00

TSTA-2-1-0054 1"  pipe die/shoe set on 6"R $460.00
TSTA-2-1-0053 1"  pipe die/shoe set on 5"R $435.00

TSTA-2-1-0060 3/4" & 1/2" pipe combination die/shoe set on 6"R $472.00
TSTA-2-1-0058 3/4" & 1/2" pipe combination die/shoe set on 4"R $438.00

TSTA-2-1-0064 3/8" & 1/4" pipe combination die/shoe set on 4"R $472.00
TSTA-2-1-0063 3/8" & 1/4" pipe combination die/shoe set on 3"R $432.00




Individual Replacement Parts for
Round Tube and Pipe


CALL FOR P/N 6"R forming die (standard single) $328.00
CALL FOR P/N 5"R forming die (standard single) $298.00
CALL FOR P/N 4"R forming die (standard single) $278.00
CALL FOR P/N 3"R forming die (standard single) $263.00
  >>Add $30 for double grooved dies

CALL FOR P/N Tube or pipe forming shoe (standard single) $83.00
CALL FOR P/N Tube or pipe forming shoe (standard double) $98.50
CALL FOR P/N Tube or pipe feed shoe (standard single) $93.00
CALL FOR P/N Tube or pipe feed shoe (standard double) $112.00




Follower Bars
(Optional - requires Universal Base Plate)

For Use with Delicate Materials


CALL FOR P/N Round form follower bar - one channel $254.00
CALL FOR P/N Round form follower bar - two channel $292.00




Square Tube Bending Components


TST-2-1-0124 Square master die 6"R $475.00
TST-2-1-0123 Square master die 5"R $462.00
TST-2-1-0122 Square master die 4"R $440.00
TST-2-1-0121 Square master die 3"R $389.00

TST-2-1-0127 Universal base plate (required for square bending) $139.00

  Square Follower & Form Shoe Sets
TSTA-2-1-0069 1 1/2" square shoe set $330.00
TSTA-2-1-0070 1 1/4" square shoe set $320.00
TSTA-2-1-0071 1" square shoe set $310.00
TSTA-2-1-0072 3/4" square shoe set $290.00
TSTA-2-1-0073 1/2" square shoe set $280.00

TSTA-2-1-0074 1 1/2" x 1" rectangular shoe set $320.00
TSTA-2-1-0075 1 1/2" x  3/4" rectangular shoe set $310.00
TSTA-2-1-0076 1" x 1/2" rectangular shoe set $290.00



ITS™ System and Components


TSITS-2-1-0001 ITS™ System Complete, 70" capacity $1,180.00
TSITS-2-1-0002 ITS™ 4'-0' Extension Section $565.00

CALL FOR P/N ITS™ Tube inserts (specify tube OD, Material and wall thickness) $120.00



Accessories


TS0042 Small round tube clamp $40.00
TS0040 Large round tube clamp $45.00

TS0030 Shark Grease - 2 oz. $13.15
TS0035 Tube Lube 8 oz. oil refill $16.80

TS20128 Digital Protractor $210.00
TS20136 Bend Calculator Software - CD $147.00



* Machine Prices Include: Selected Power Unit, Operating Tools, Video, and Crating.

** Custom die/shoe sets are available. Call for pricing.
