New in crate   SICAM large  56"  truck tire changer   $10,000.00    regular price is  $16,000.00





The best truck changer around. Easy to operate,

low maintenance and any mechanic can repair it.

Coats S34 Truck tire changer handles all truck tires from 15" through 28". tube type and Tubeless with electro-hydraulic power.

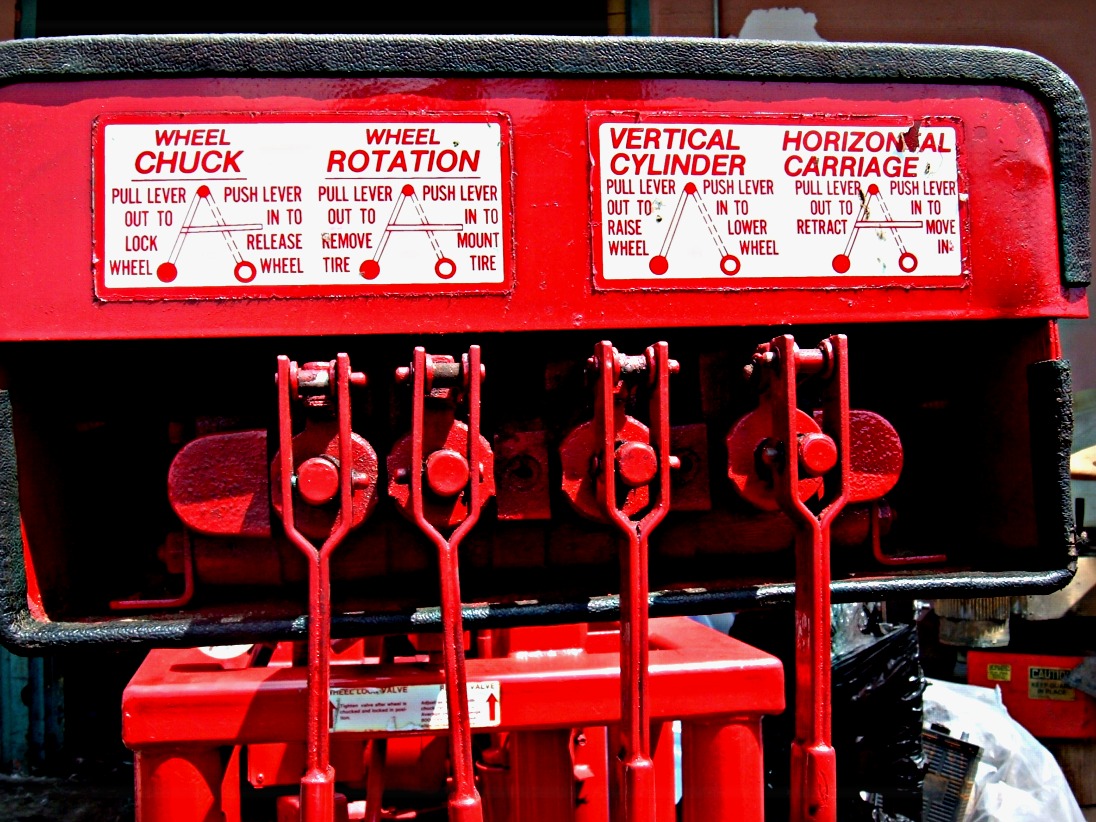

Heavy duty hydraulic motor with chain drive. Hydraulic controls, valves and levers for each operating cylinder or motor.

Hydraulic wheel locking for fast chucking.

OPTIONAL wheel chuck arms up to 42" wheel.

specifications. 22" wide  x 84' long  x 74" high

Horizontal and vertical travel  20" Weight  1,250 lbs.

Electrical requirements:  110 volt 30 amp.. or 220 volts 20 amp. 1 phase.









Tire Changer Machines - CoatsŪ

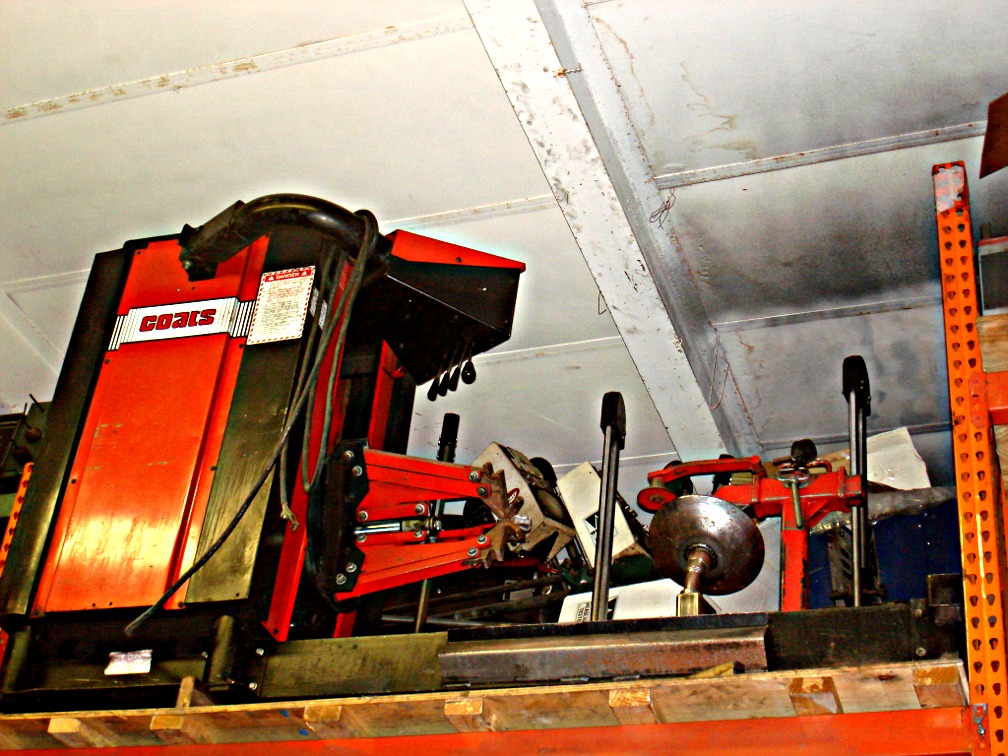

HIT 5000/9000



These heavy duty tire changer machines can accommodate tube or tubeless tires with rim diameters from 15" to 38" (5000) and 15" to 44" (9000).

Tire Changer HIT 5000/9000


Specifications


Electrical Requirements 220v, 1 Ph 60Hz*
Air Required No
Min/Max Wheel Diameter 15" to 38" (HIT 5000)
15" to 44" (HIT 9000)
Maximum Tire Diameter 76" (HIT 5000)
83" (HIT 9000)
Maximum Section Width 34" (HIT 5000)
40" (HIT 9000)
Tire Types Tubeless/Tube Type
Shipping Weight 1,400 lbs. (HIT 5000)
1,600 lbs. (HIT 9000)

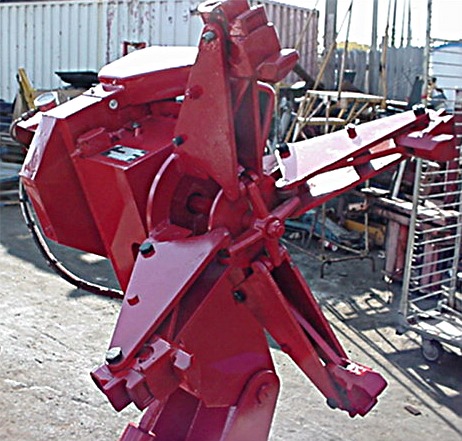

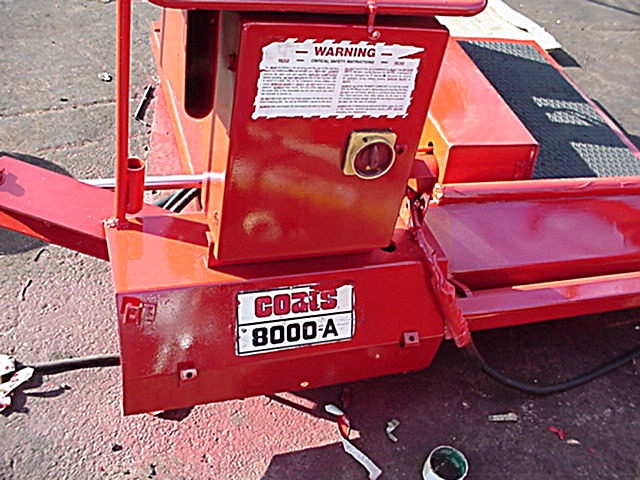

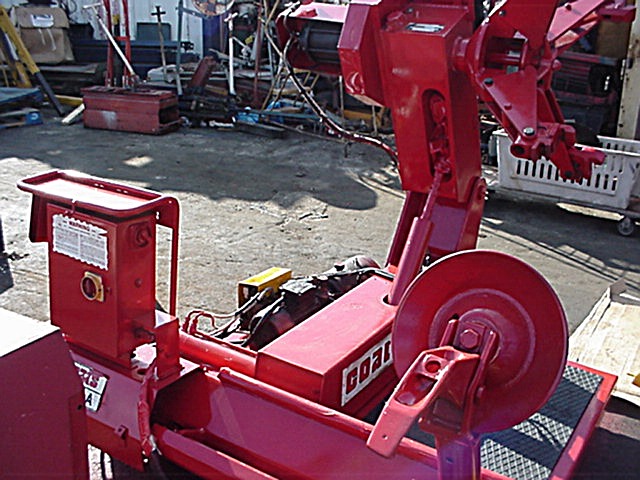

COATS 8000A, VERY LARGE TRUCK TIRE CHANGER 52"

PRICE IS    EXCELLENT CONDITION

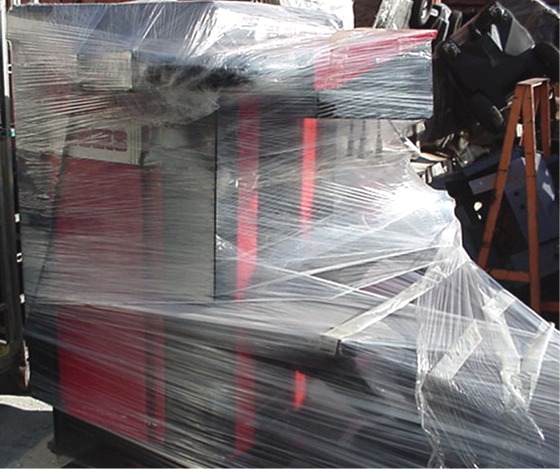

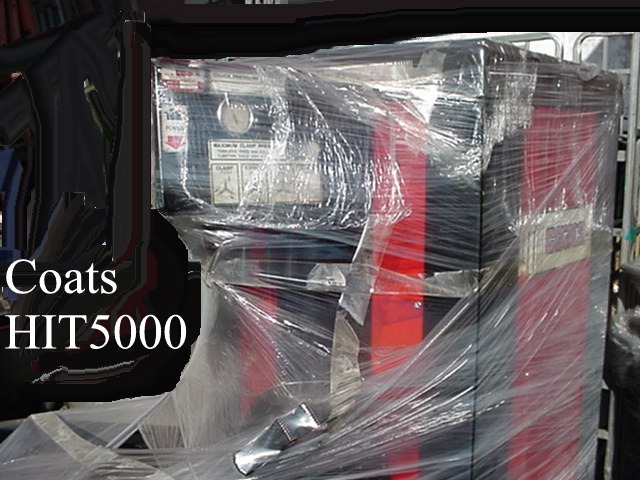

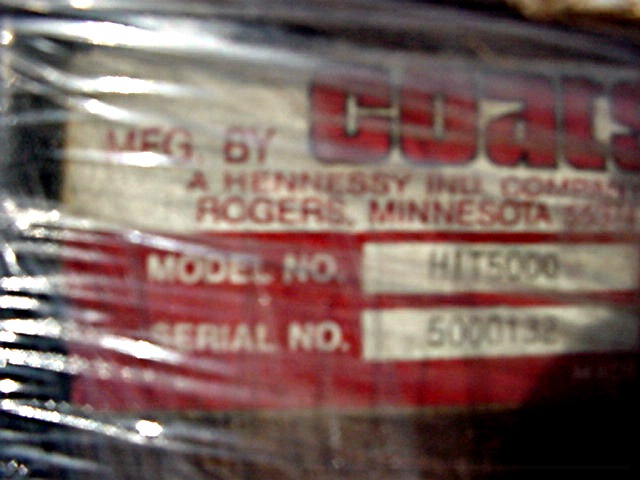

COAT HIT5000 LARGE TRUCK CHANGER IN EXCELLENT CONDITION

$7,500.00

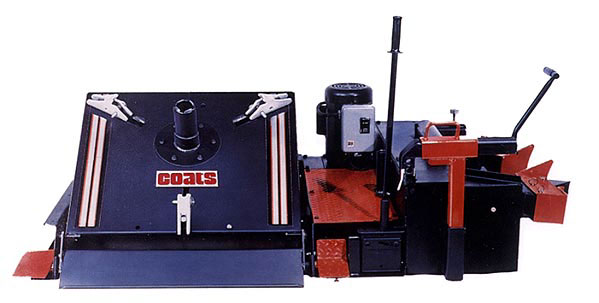

RECONDITIONED COATS MODEL 6000, DESIGNED FOR SERVICING TUBELESS TIRES. RUGGED, DEPENDABLE, FAST, SAFE AND EASY TO USE. DESIGNED FOR WHEEL WIDTHS OF 6" TO 15" AND DIAMETERS OF 16.5" TO 24.5". THE COATS 6000 CAN HANDLE ALL 15" SINGLE-PIECE HIGHWAY RIMS. INCLUDING DEMOUNTABLE DAYTON WHEELS, REVERSE DISC BUDD WHEELS AND STANDARD DISC WHEELS. POWER IS ELECTRO-HYDRAULIC FOR THE DOUBLE BEAD LOOSENER  (ADJUSTABLE TO A 20" WIDTH) AND PNEUMATIC FOR THE THREE-JAW, SELF-CENTERING RIM CHUCK. MOUNTING TIRES IS EASY THANKS TO A TWO-POSITION CHUCK ADJUSTMENT RANGE AND THE PIVOTING TABLETOP THAT ALLOWS MOUNTING/DEMOUNTING IN ANY POSITION FROM NEAR VERTICAL TO NEAR HORIZONTAL.  ONE CONTROL STICK IS USED FOR PIVOTING THE TABLETOP AND CLAMPING THE RIM CHUCK, WHILE BEAD-LOOSENING, MOUNTING AND DEMOUNTING ARE ACTIVATED BY DEDICATED TWO-WAY PEDALS.  SHIPPING WEIGHT IS 1150 POUNDS. MAXIMUM TIRE DIAMETER IS 44" Photo shown is a new machine, not our reconditioned one.





BISHMAN /BRANICK 931 THE ONE MAN TRUCK TIRE CHANGER ELECTRIC HYDRAULIC  POWER CHUCKS RIM, AND LIFTS TIRE INTO POSITION ON MACHINE. UP TO 7,000 LBS. PRESSURE IS APPLIED TO DEMOUNT TUBED TIRES FROM 15" THROUGH 28" OR TO BREAK THE BEADS AND MOUNT AND DEMOUNT TUBELESS TIRES FROM 17.5 THROUGH 24.5

TUBELESS TIRES ARE DEMOUNTED AND MOUNTED WITH ANOTHER TOOL IN PLACE OF THE BEAD BREAKER DISCS. ALL OF THE HARD WORK AND HEAVY LIFTING IS DONE BY POWER.

ELECTRIC HYDRAULIC POWER MAKES IT A SIMPLE, EASY JOB FOR ONE MAN TO DEMOUNT TUBE TYPE TRUCK TIRES OR TO MOUNT AND DEMOUNT TUBELESS TRUCK TIRES.

ONE REFURBISHED MODEL AVAILABLE.  $

 Tire changer does the hard work. Lifts the tire up onto the machine with hydraulic power

Handles up to 28" truck tires.

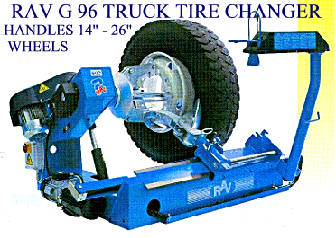

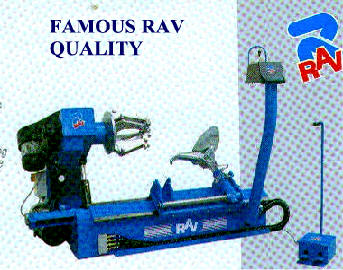

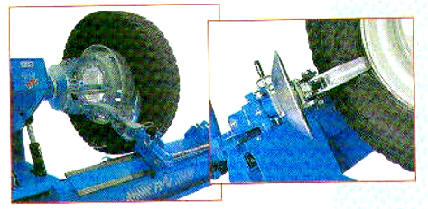

TIRE CHANGER FOR COMMERCIAL VEHICLES WHEELS (14" TO 26").

IN ORDER TO AVOID DAMAGE TO THE RIM, THE HYDRAULIC PRESSURE OF THE RIM CLAMPING CHUCK IS ADJUSTABLE. THE OPERATING DIMENSIONS OF THE RIM CLAMPING UNIT AND OF THE HEAD-TOOL CARRIAGE ALLOW THE TIRE CHANGER TO OPERATE ON  A WHOLE RANGE OF WHEELS, INCLUDING "SUPER-SINGLE".

THE CONTROLS, PLACED ON THE HEAD-TOOL CARRIAGE, CAN BE ROTATED BY 120 DEGREES, IN ORDER TO ALLOW OPERATION IN THE MOST SUITABLE CONDITION.

THE CONTROLS, WITH LEVER TYPE HYDRAULIC DISTRIBUTORS, ENABLE TO REGULATE THE SPEED DURING THE COMPLETE MOUNTING/DISMOUNTING OPERATION.
CHUCKING UNIT ROTATION MOTOR              1.5 KW

HYDRAULIC DRIVE UNIT MOTOR                      .75 KW

RIMS                                                                    14" TO 26"

MAX. ALLOWED WHEEL                                    1480 MM

MAX. WHEEL WIDTH                                            800 MM

WEIGHT                                                                   460 KG

 EQUIPPED WITH DOUBLE MOUNT-DEMOUNT TOOL TO OPERATE ON TUBE OR TUBELESS TIRES.



(LIST = $10,000.00)
