Super mag 28 INCH TIRE CHANGER. Includes ROBO-ARM KIT

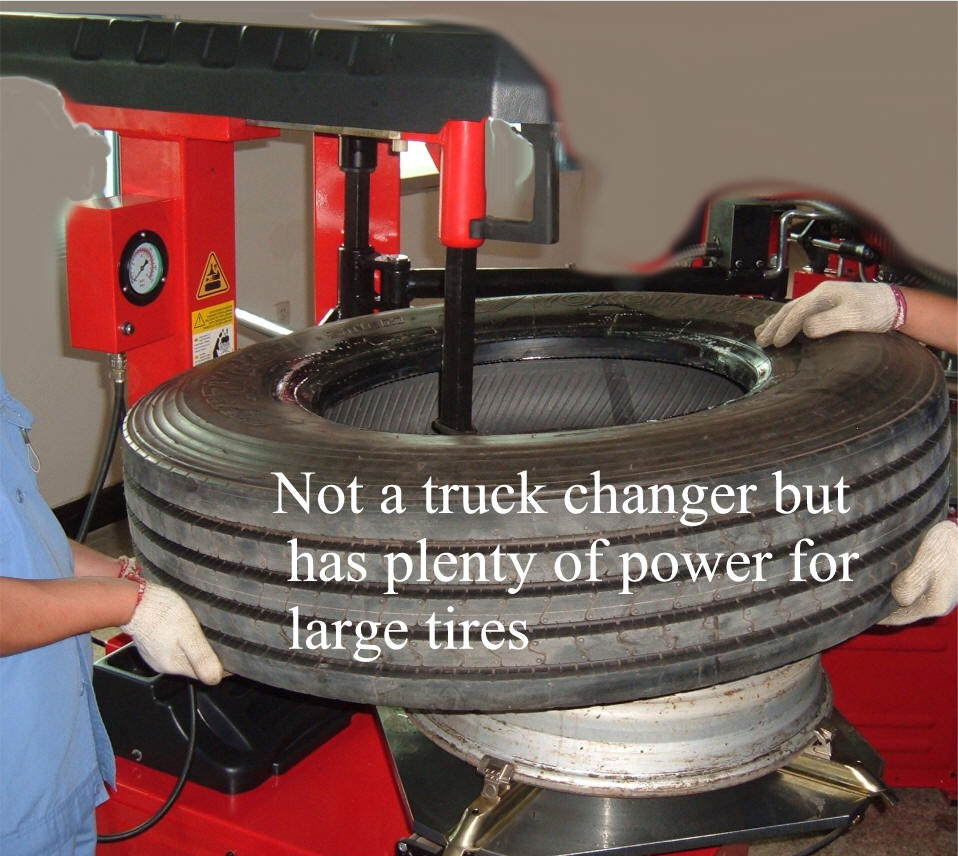

EUROPEAN STYLE TIRE CHANGER WITH 28 INCH CAPACITY. CAN BE EXTENDED TO 30 INCH WITH THE OPTIONAL MOTORCYCLE ADAPTORS. OPTIONAL ATV ADAPTORS ARE ALSO AVAILABLE. Highest quality at a very reasonable price. Not made for truck tires, but has the power to handle them.





 Back to Service Index     Back to Home  Back to Tire Changer



Allstate's Of America, Inc.  2595 NW 37th. St. Miami, Fl. 33142      800 223 2573      Fax 305 635-5353                        Voice  305 635-4525                e-mail to   Bob@allstates.com







Standard features：

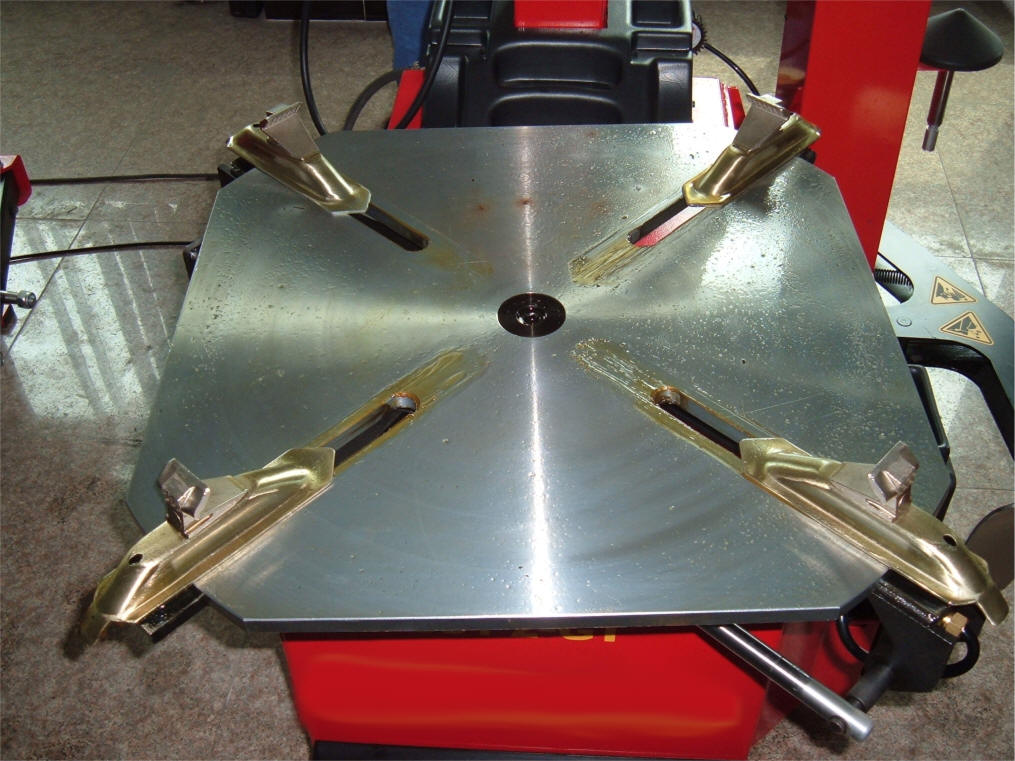

Rim clamping from outside 12＂－28＂
Rim clamping from inside 14＂－30＂
Max.wheel diameter 1000mm
Max.wheel width/turntable 410mm
Max.wheel width/bead-breaker 360mm
Bead-remover cylinder(force at 10 bar) 2500Kg
Operating pressure 8-10bar(145Psi)
Power suply 110/220V(1ph) 380V(3ph)
Motor power 0.75/1.1Kw
Net weignt 345Kg
Noise <70dB
 Other SPECIFICATIONS：
The combined NHT881-3-GT is full automatic changer specially for wide tread and low-profile tires.

◎Post inclinable
◎Pneumatic locking for vertical shaft and moving arm
◎Air Tank
◎Quick inflating
◎Pneumatic Bead-remover
◎Air-release button for pressure device
◎Tool Box for Maintenance
