DCM TECH SEAT AND GUIDE

USED DCMTECH SEAT AND GUIDE MACHINES. TWO IN STOCK,  HMC2000 and HMC2000 L ONE IS PASSENGER CAR SIZE AND THE OTHER IS VERY LARGE DIESEL SIZE. BOTH IN VERY NICE CONDITION.

Van Norman Seat & Guide with air float table in great condition. Also Peterson TCM25  and TCM40 in stock.



  Back to Engine Page     Back to Home Page     Contact Us

ALLSTATE'S OF AMERICA, INC. 2595 N.W. 37TH. ST. MIAMI, FL. 33142  305 635 4525  FAX 305 635 5353

EMAIL TO: BOB @ALLSTATES.COM

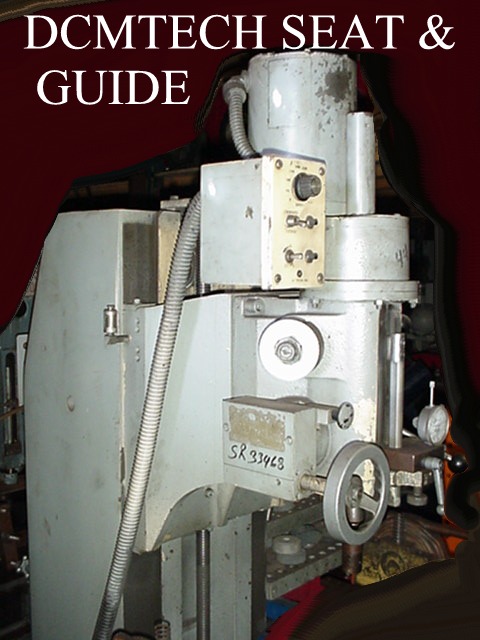

DCMTECH model HMC2000
DCMTECH SEAT & GUIDE MACHINE.

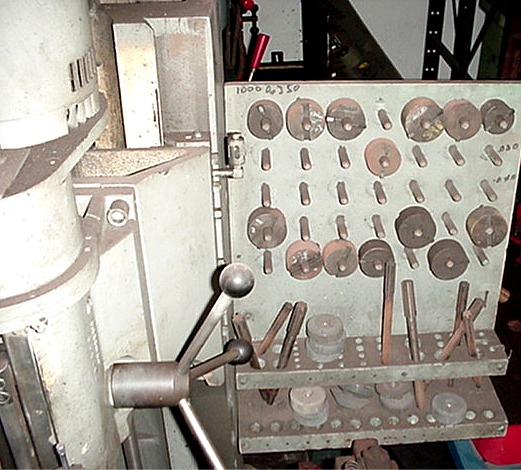

INCLUDES A LOT OF TOOLS. ONLY SOME OF THEM ARE SHOWN ABOVE. GREAT CONDITION.

VERY HEAVY DUTY MACHINE. EASY TO OBTAIN PARTS.    $4,500.00

Height =  86"     Weight   =   2600lbs.

floor space  =  36" x 53"   work space =  36" x 94"

Throat  =  11"      Spindle motor = 2 HP

Max. clearance above table =  34"

Head travel  =   14"  Spindle travel  =  6 1/2"

Column motor  1/6 HP,  115 volts

Spindle Speed  = 0 - 450 Infinitely variable

Rigid 12" x 14" Column casting with dovetail ways

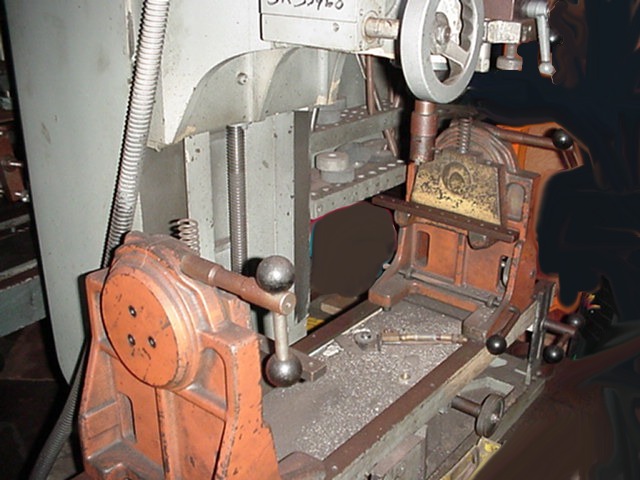

Universal Air flotation Cradle w/360 degree Rotation

Hard chrome plated 3 1/2" dia. Quill with 6.5" travel

Independent Trunions adjust to Head length of 6" to 38"

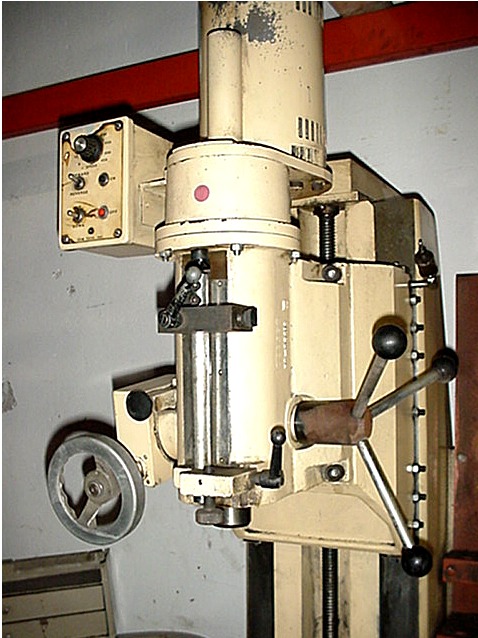

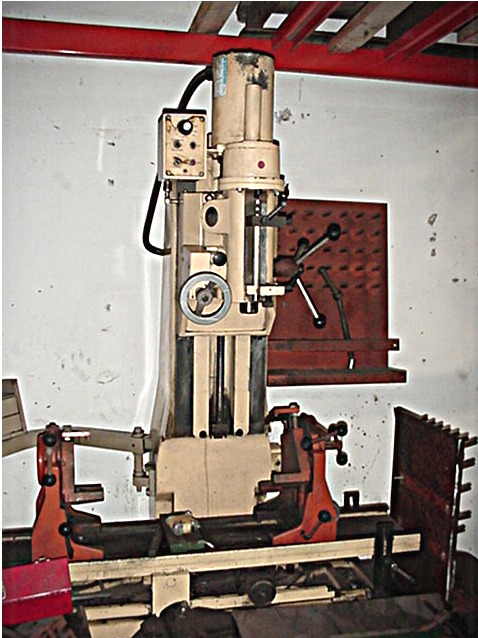

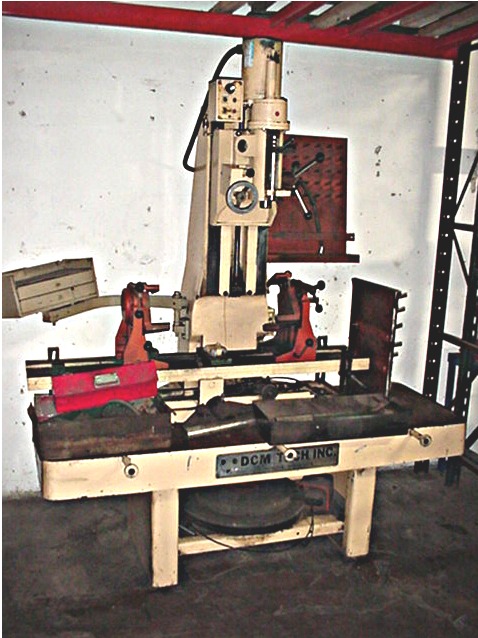

DIESEL size  HCM2000L  and also does all smaller sizes. Premium class Seat and guide machine that is in original condition with the original paint. DcmTech, we also have the same machine in a smaller size with an excellent tooling package.



HMC2000L

Height  = 94"   Weight  =  3200 lbs.

Floor space = 38" x 72"  Work space  = 38" x 120"

Throat  = 12"       Head travel  = 14"

Max. clearance above table   =  40"

Spindle motor  =  2 HP

Spindle Travel  =   6  1/2"

Column motor  1/6 HP,  115 volt

Spindle Speed  =  0 - 450  Infinitely Variable

Electrical, =  220 volt,  1 phase, 60Hz.


Rigid column castings

Heavy duty reinforced Table Casting

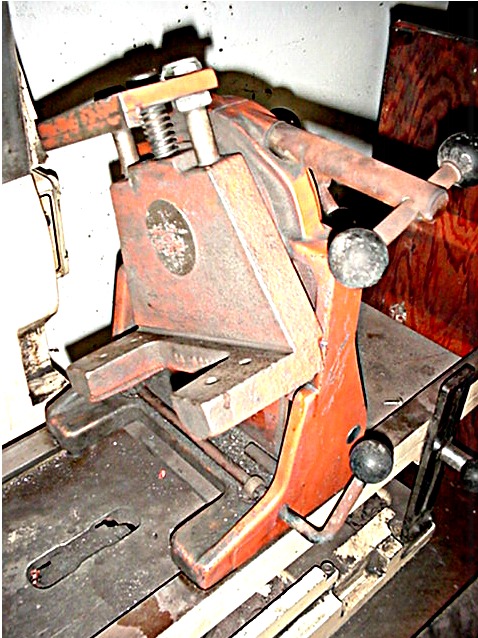

Universal Air Flotation Cradle w/360 degree Rotation- Adjusts for

compound angles.

Head capacity  6"  to  53"



Van Norman seat and guide machine with air float table

Great original condition

$4,000.00
