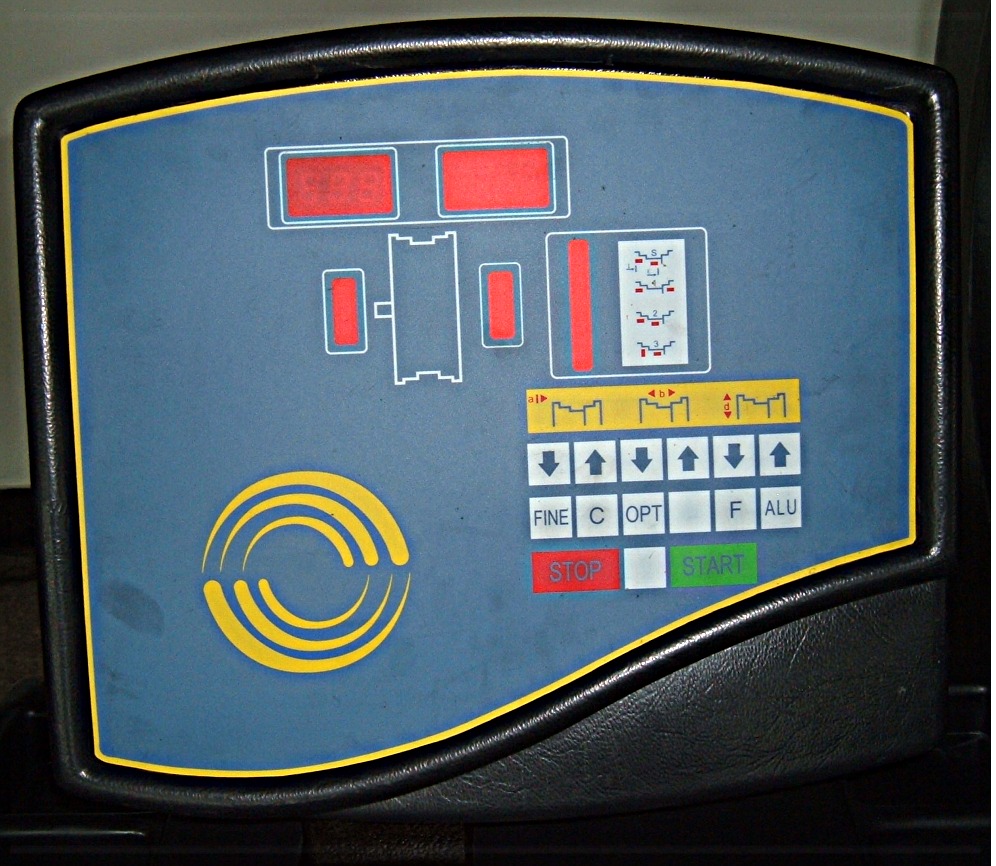

Automatic START/STOP

Automatic distance and wheel diameter measuring

Self diagnosis

Self Calibration

Changeable between grams and ounce

Includes Hood

4 aluminum functions for light allow wheels

Cycle Time           8 second

Maximum wheel weight     140 lbs.   70Kg.

Power     110 volt   60Hz.

Balancing Speed     <200rpm

Balancing Precision       + - 1 gram

Rim diameter            10 inch  to 24"   +

Rim width                  1.5 inch    to  20 inch

Weight          308  lbs.         140  kg.

Motorcycle kit "C" is normally furnished with Motorcycle balancer.

Kit "A" and kit "B" are optional.

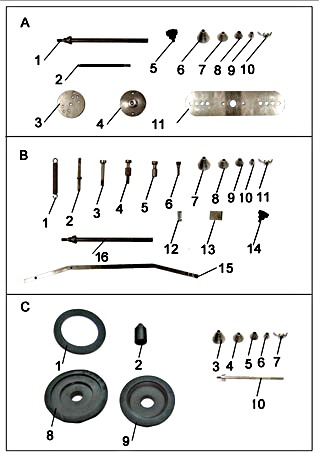

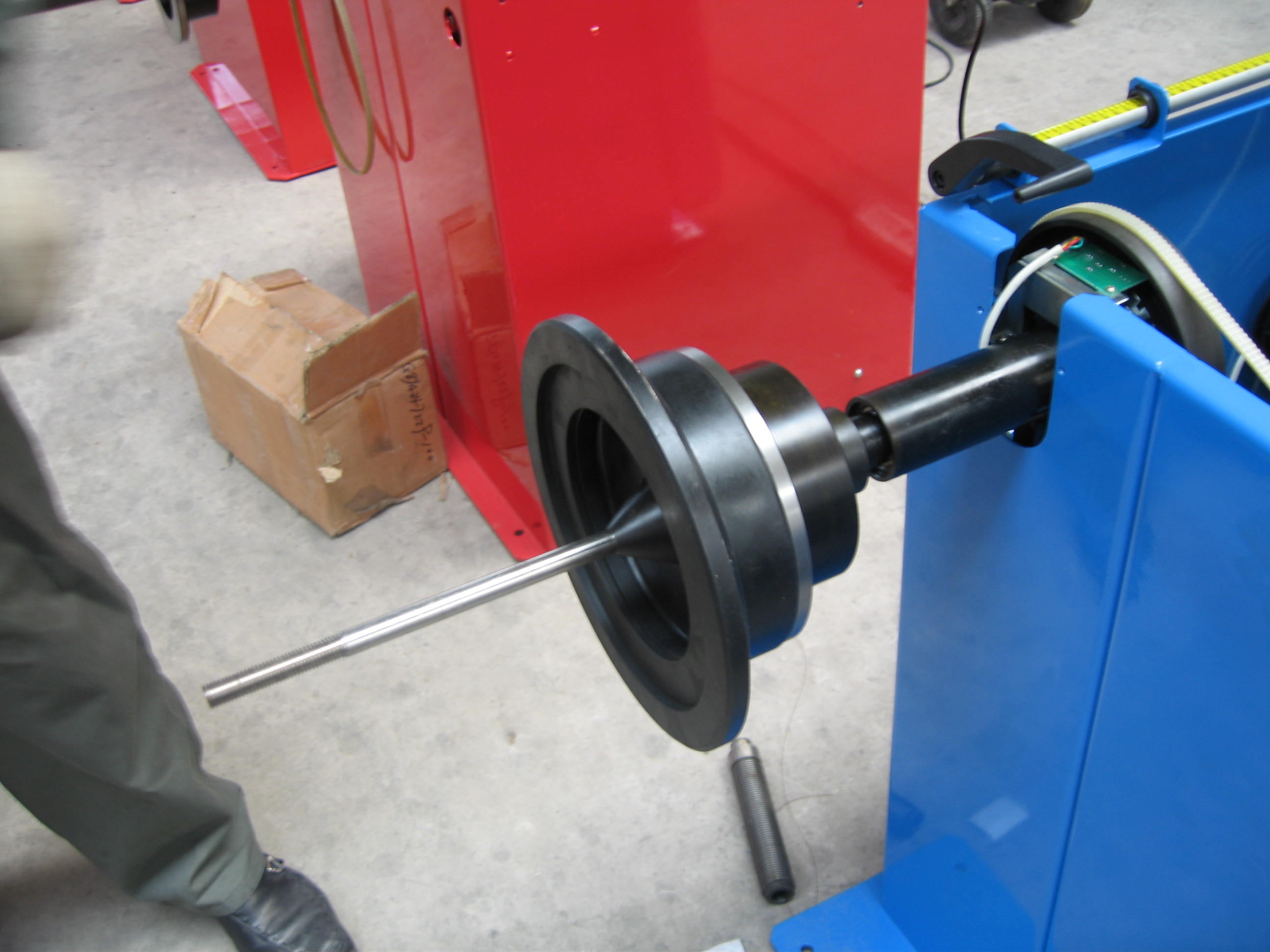

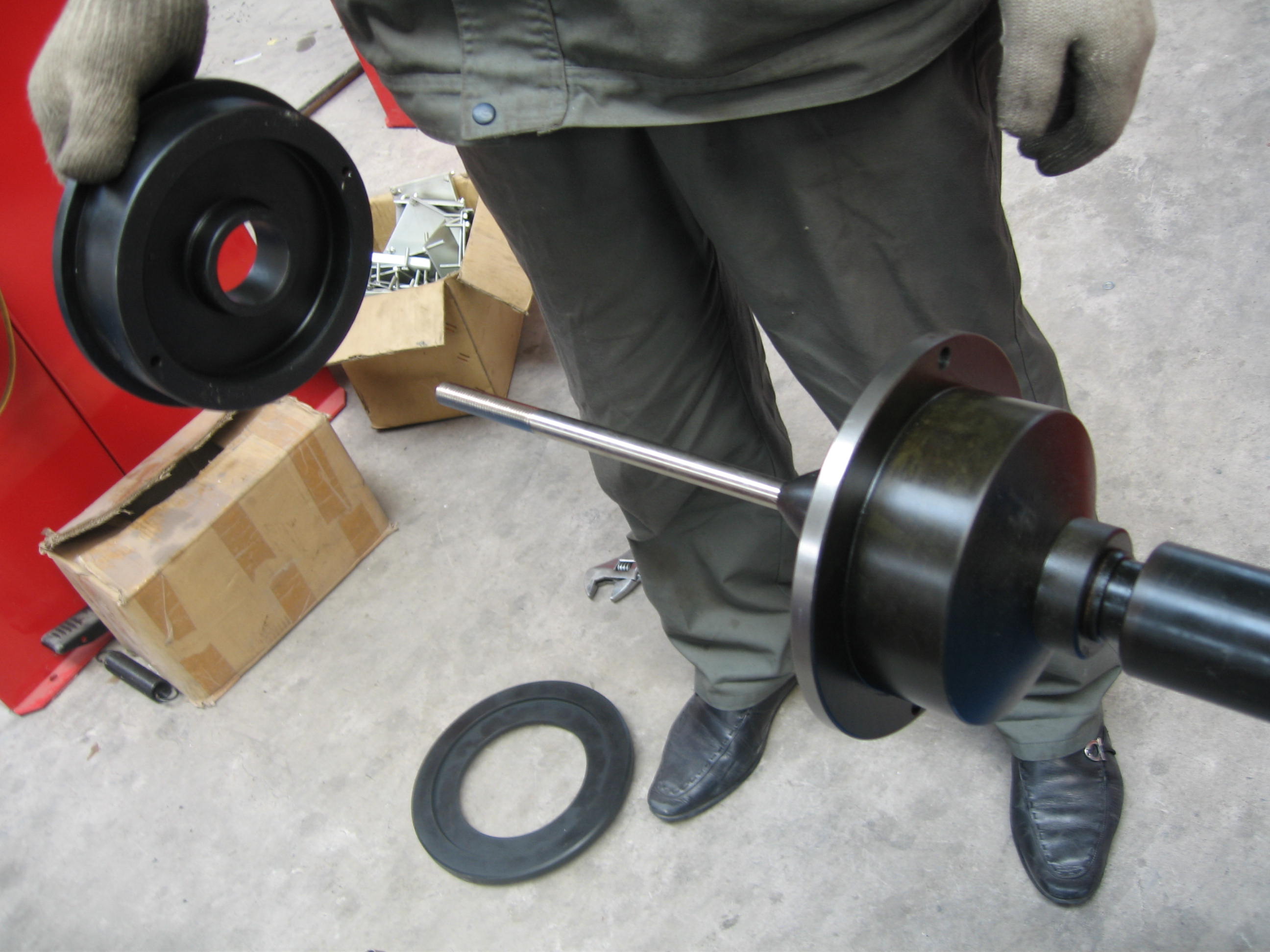

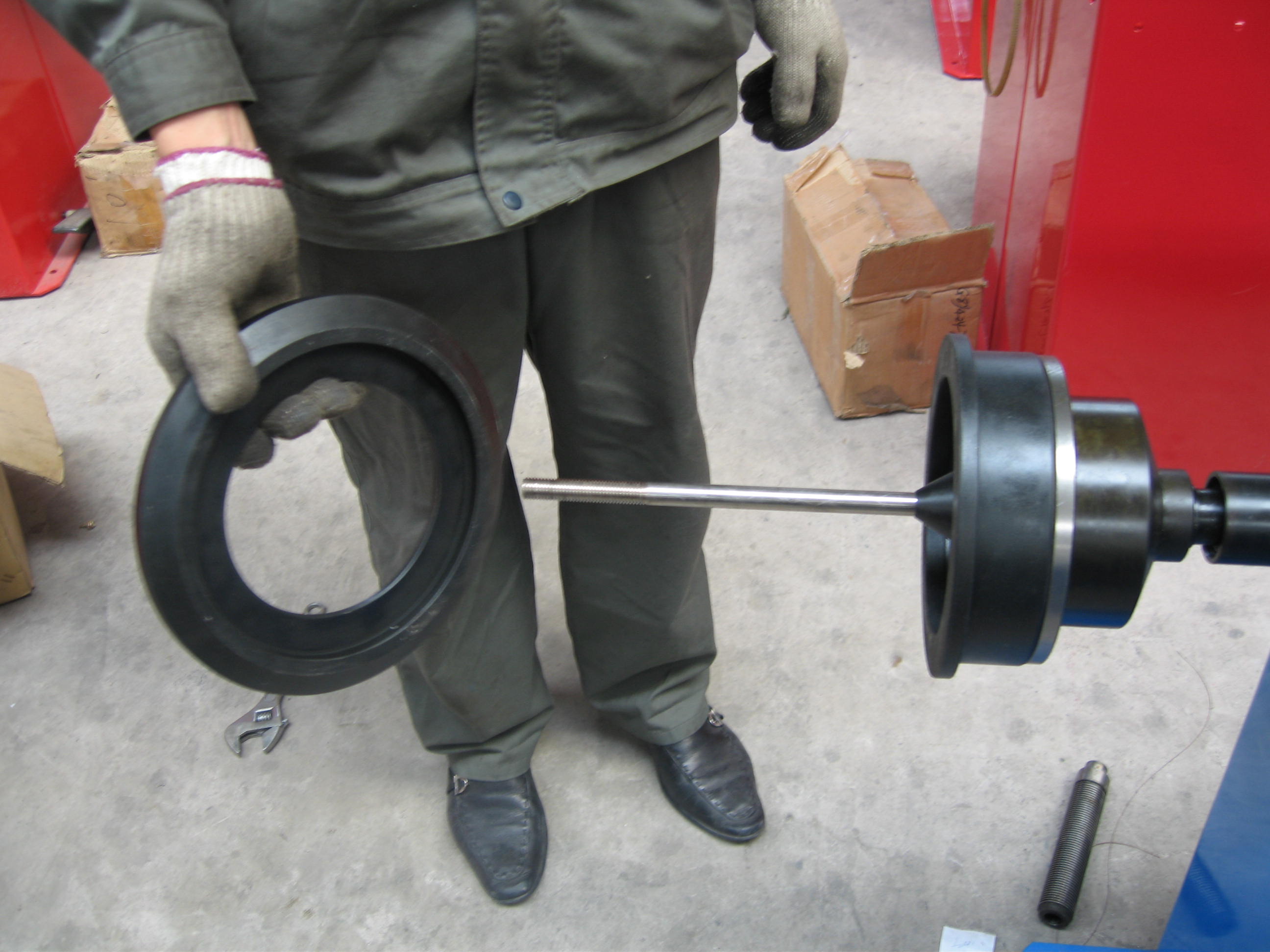

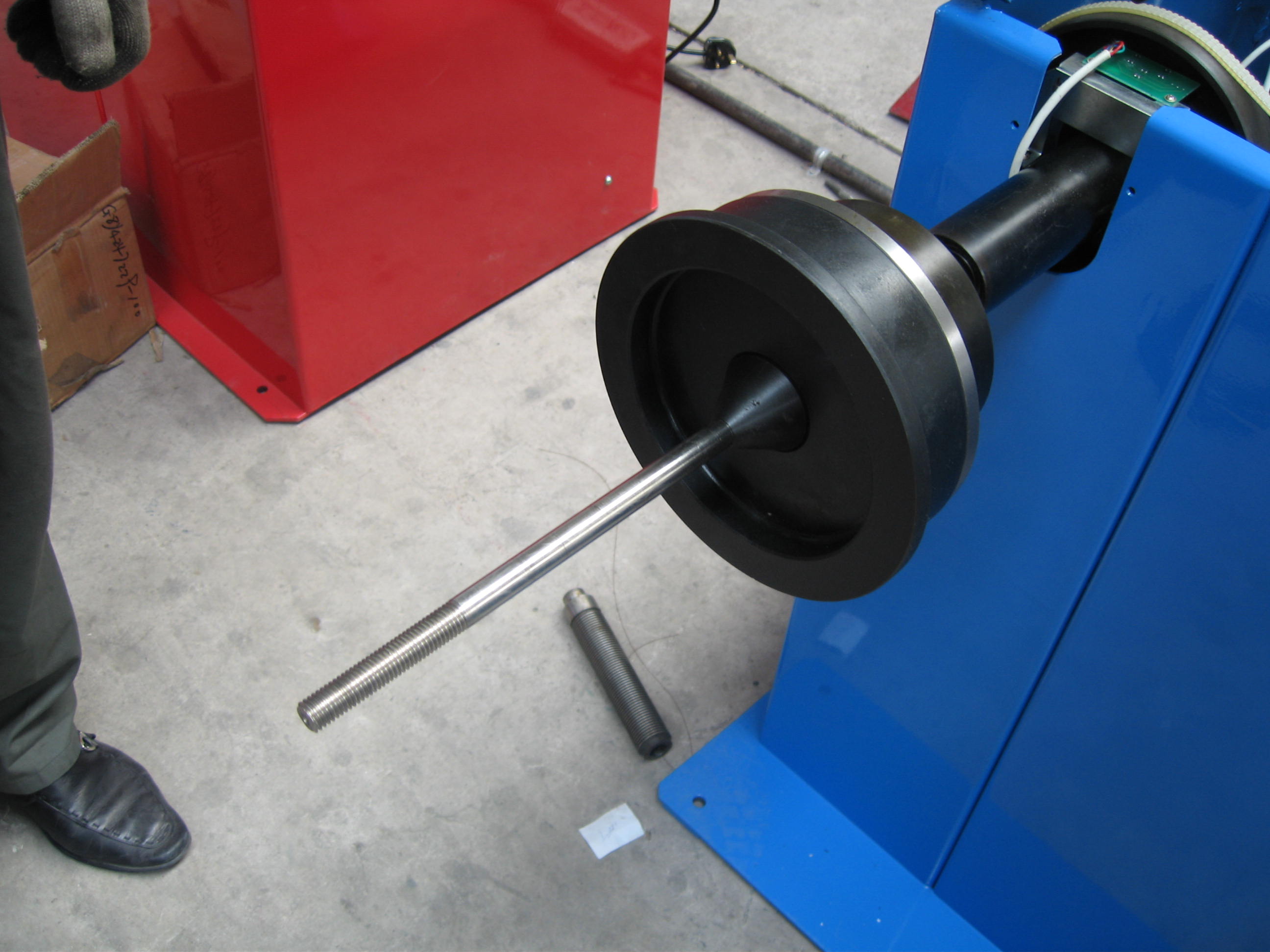

Available Motorcycle :Adaptor:Kits for Wheel Balancer

Adaptor A
1.Orientation Screw
2.Orientation Rooter
3.Orientation Disk
4.Orientation Flange
5. Clubs Bolt
6.Cone A
7.Cone B
8.Cone C
9.Cone D
10. Wing Nut
11.Orientation Board

Adaptor B
1.Big Spring
2.Pin
3. Bolt A
4. Bolt B
5. Bolt C
6. Bolt D
7. Cone A
8. Cone B
9. Cone C
10. Cone D
11. Wing Nut
12.Small Spring
13. Link Block
14. Clubs Bolt
15. Orientation Board
16. Orientation Screw

Adaptor C
1.Seal Ring
2.Oritentation Cone
3. Cone A
4. Cone B
5. Cone C
6. Cone D
7. Wing Nut
8.Big Orientation Disk
9.Small Orientation Disk
10. Orientation Screw


1
4
2
1
2
1
1
1
1
1
1


4
2
2
2
2
2
1
1
1
1
1
2
2
2
1
1


1
1
1
1
1
1
1
1
1
1

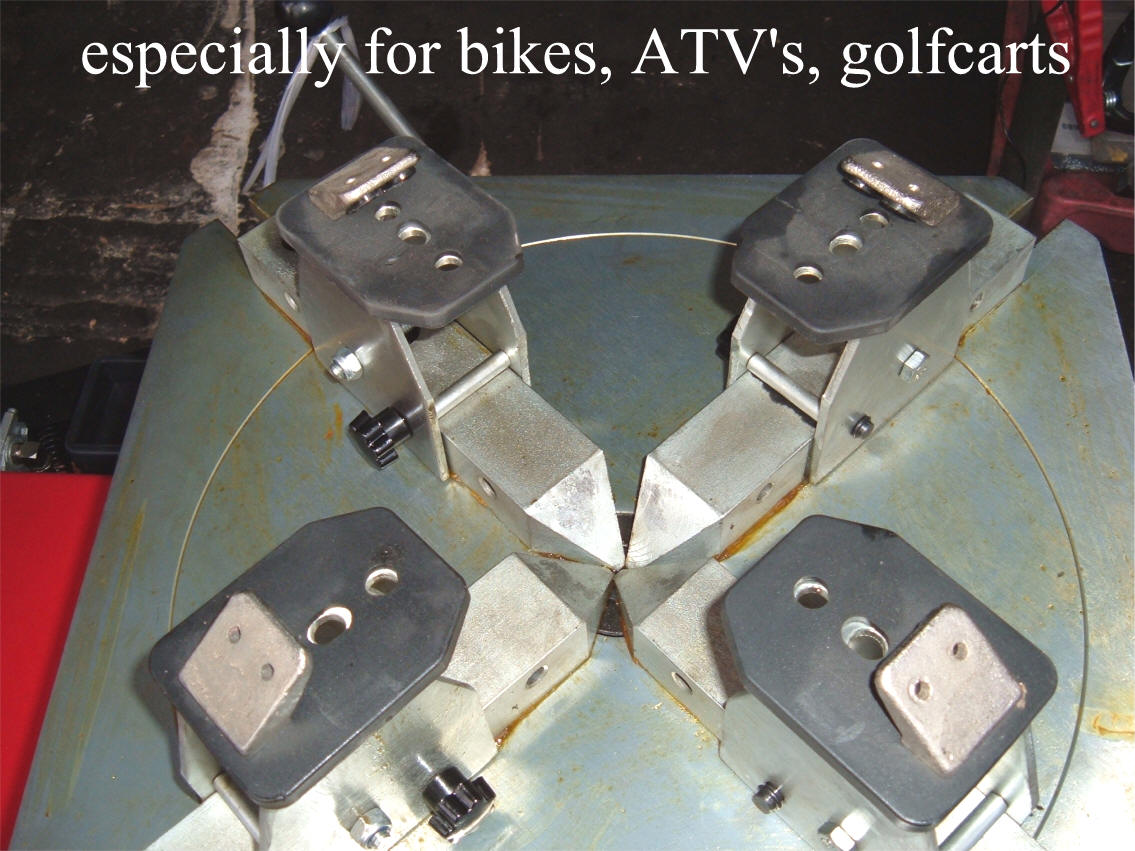

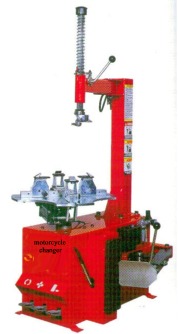

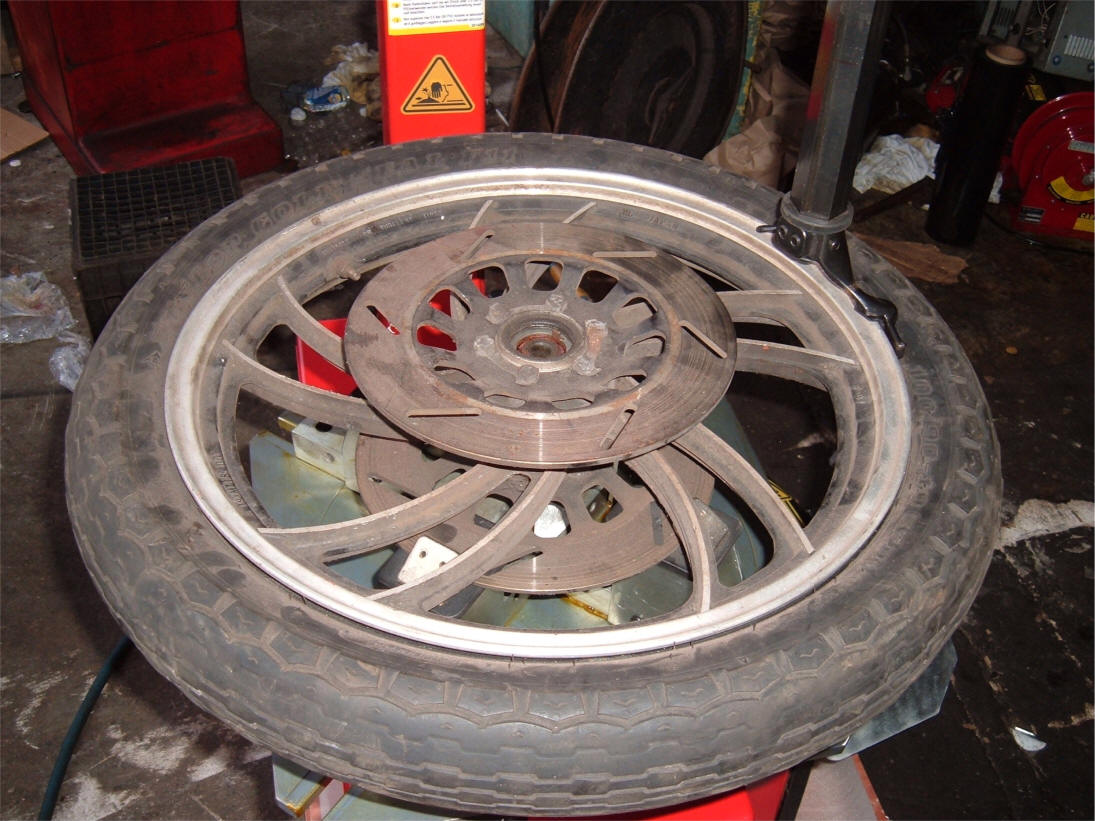

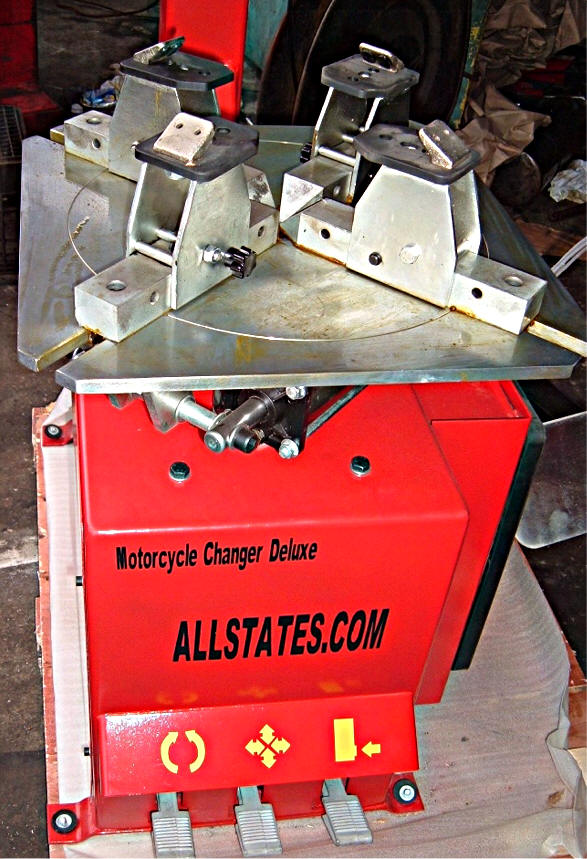

A REAL Changer for Motorcycles,

Not a car changer with adaptors.

Motorcycle, ATV, Golf Cart

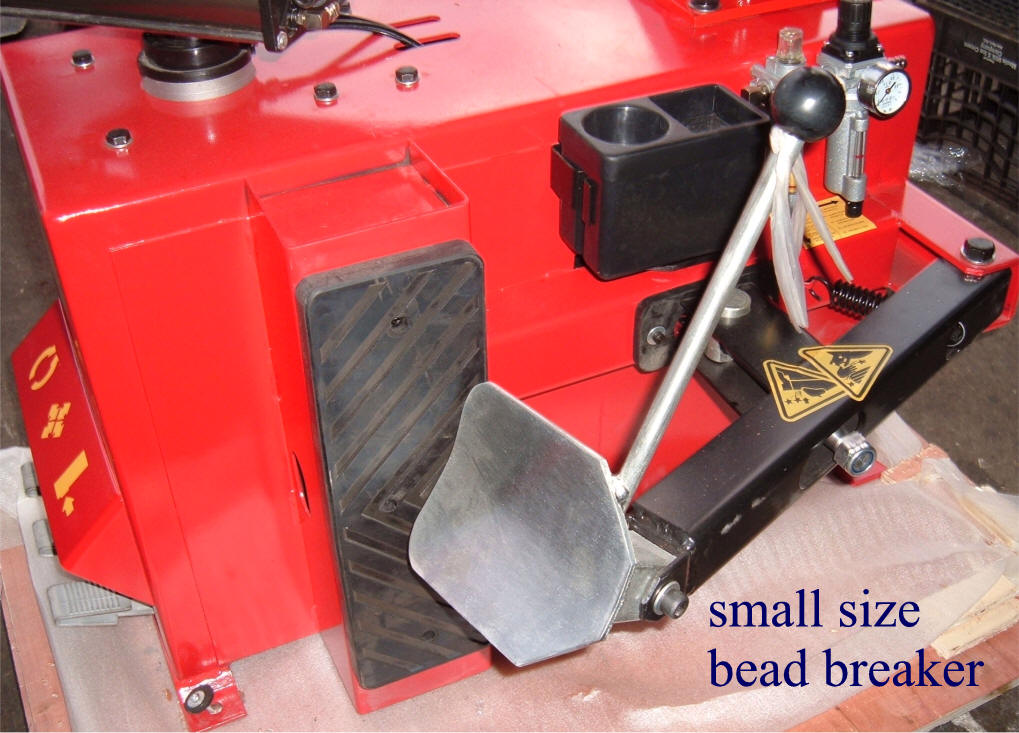

Small Bead Breaker for narrow tires

capacity 6 inch to 21 inch

maximum wheel diameter   960 mm

maximum wheel width        320 mm     (12 inch)

Bead remover force            2500 KG

operating pressure    8 to 10 Bar    145 PSI

Power supply       110/220 volt

Motor Power       0.75  to  1.1 KW

Maximum spindle torque   110 Kg.m

Noise   < 70 db.









































RAVAGLIOLI

Leader in the garage workshop equipment industry for over 40 years, in 110 countries



Since 1958, Ravaglioli has been a byname for experience, evolution and technology. The company's top-quality products have marked its history over the years. Safety, compliance with international standards, ongoing and stringent tests are all part of the Ravaglioli approach to equipment design, devised to fully answering the needs of operators in the automotive field. For over forty years, the Ravaglioli brand has successfully accompanied every stage of garage workshop operations, from vehicle repairs to controls and inspections.

Tire changers for Cars, vans motorcycles


G820I Ideal for cars, vans, motorcycles

Heavy duty support structure to guarantee proper working conditions at all times.
- Rigid self-centering chuck and wide clamping range: 9.5»÷18» external, 11.5» ÷ 20.5» internal.



Tyre changers for cars, motorcycles and light commercial vehicles.
The rear of the unit is free from fittings to allow installation in confined space, thus making it the ideal solution for customers requiring a product which is simple, reliable and economical (garages, service stations, etc.).

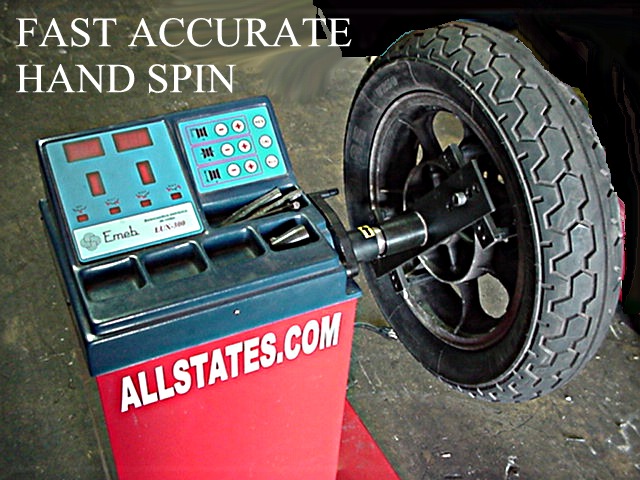

ALLSTATE'S MOTORCYCLE AND CAR BALANCER



HAND SPIN, HIGH QUALITY,  MOTORCYCLE BALANCER. WITH MOTORCYCLE ADAPTOR SET, THE PRICE IS $2,000.00

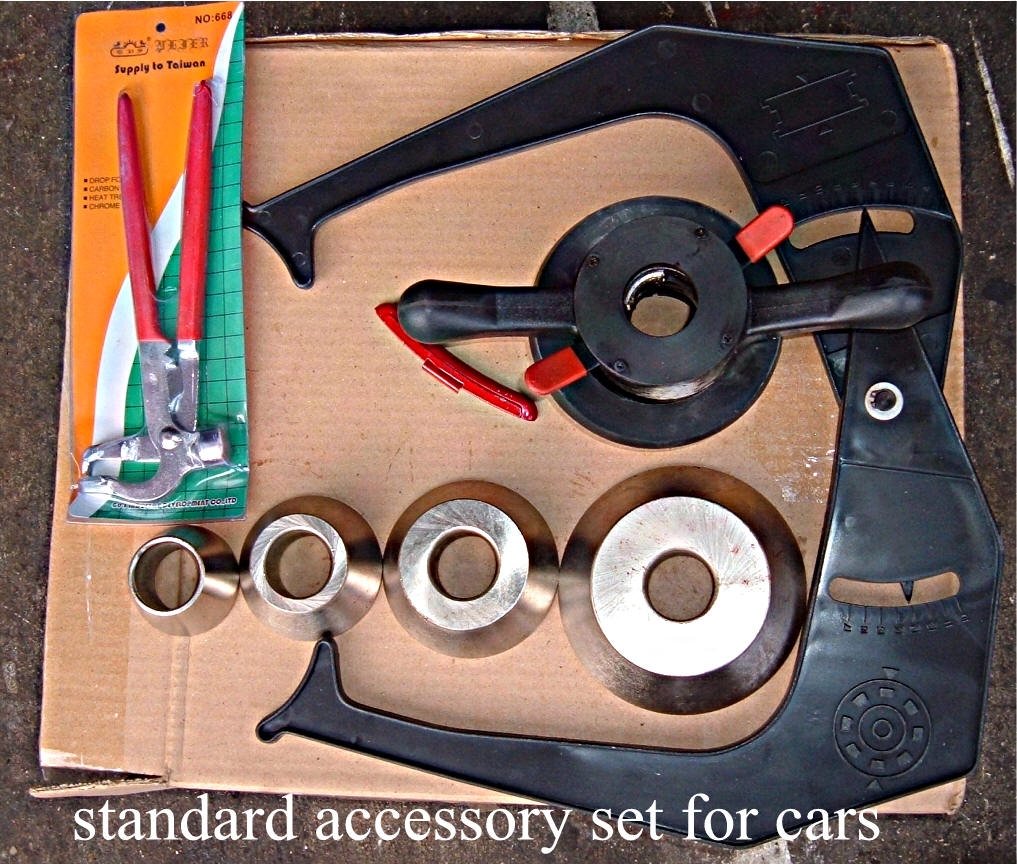

* CAR ADAPTOR SET IS OPTIONAL *

SELF CALIBRATION IS BUILT IN.

EXTREMELY ACCURATE.

5 BALANCING PROGRAMS: NORMAL, STATIC, AND 3 DIFFERENT ALUMINUM WHEEL MODES.

READS IN OUNCES OR GRAMS. ACCURATE TO 1 GRAM.

10" to  24" WHEEL

1.5" to 20" RIM WIDTH

110 VOLT POWER

MAX WHEEL WEIGHT = 60KG.

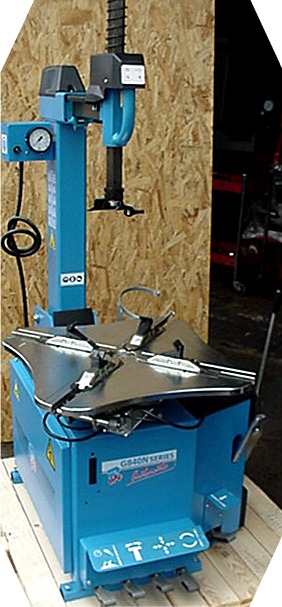

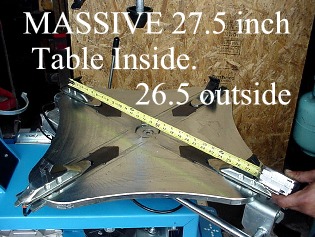

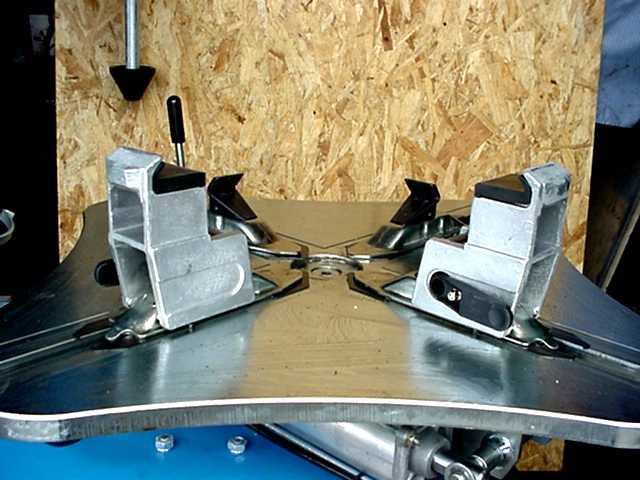

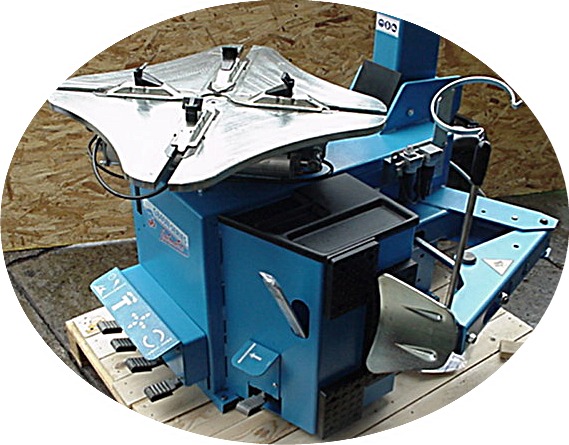

RAV 840 TILT-BACK WITH MASSIVE 27.5" TABLE ROBO-ARM OPTIONAL



Motorcycle > Wheel Balancer > G111 BIKE

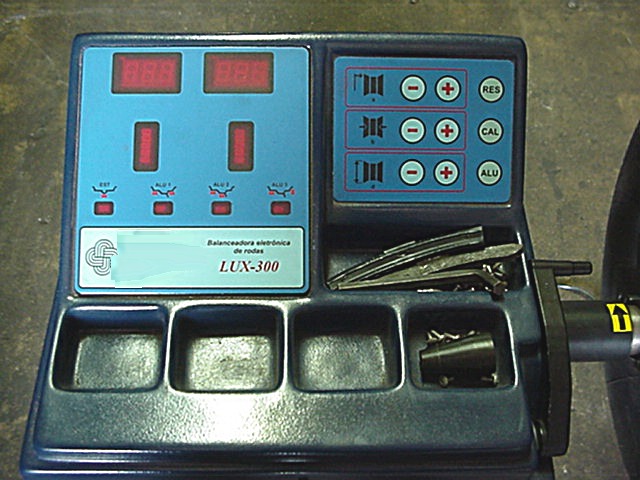

The self-diagnostic program prevents errors in operation. Display readout of imbalance and positions. The display clearly indicates when sufficient speed is reached for measuring. Wheel diameter and width are displayed in inches or millimeters. Out of balance values are displayed in grams or ounces. Pedal brake.


WHEEL BALANCER WITHOUT MOTOR

This compact and simple wheel balancer performs all the functions of the most expensive machines. It is designed for easy and accurate balancing of wheels for motorcycle, passenger car and light commercial vehicles up to 60 kg of weight.
The wheel is started by hand crank or by a gentle hand spin on the tire tread.
One single spin with low speed provides all the values. Microprocessor controlled wheel balancer with self-calibration and self-diagnostics. Specific balancing programs for static (motorcycle wheels) and ALU wheels (light alloy).
The self-calibration program is easy and rapid and does not require a balanced wheel.
