GO POWER D557 2000HP DUAL ROTOR DYNO AND DATA ACQUISITION SYSTEM, COOLING TOWER, STAND, BEAUTIFUL



Dual rotor

Max HP 1000

750 Ft lbs

7500 RPM continuous

12000 RPM intermittent

Unit can be set up as a fixed base or as a portable setup.

It comes with a splined input shaft to mount up to most bell housings.

This unit is still sold new through Stone Bennett Corporation



D-557
D-557 Dynamometer
1000 HP (746kW) Maximum Power,
700 Lb-Ft (1,017Nm) Maximum Torque,
10,000-12,000 rpm Maximum Speed







The D-57 series dynamometers can be used both with diesel and gasoline automotive engines at speeds up to 7,500 rpm continuous and 10,000 rpm intermittent. The D-57 is designed to be quickly and easily fitted to an engine mounted on a fixed base or mobile engine stand. The ease of use, when combined with a Go Power Systems instrumentation package, allows the user to achieve precise testing and results with a minimum of set up time.  There are a wide variety of adapters and engine carts available which will allow attachment to all standard engine types. Go Power Systems engineering can readily design adapters for virtually any application.  Go Power Systems has available cooling columns, engine carts, engine adapters and many other options and accessories necessary to outfit test cells from the entry level to the most sophisticated automated data acquisition control systems.


Specifications:
• Type of absorption: Water brake
• Construction: High strength bronze alloy absorption module,
• Bearings: Four (4) grease roller/ball type or lubricated roller/ball
• Operating range: 7,500 rpm continuous, 10,000 rpm intermittent (12,000 rpm with optional oil mist bearing lubrication system)
• Rotation direction: Clockwise or counter clockwise
• Torque transducer: Electronic strain gauge (temperature compensating)
• Speed pickup: 60 tooth gear with inductive sensor
• Rotating Assembly: Stainless steel mainshaft with double axial-vaned rotor


Water requirements:
• Inlet: 3/4”-1” (19-25mm) line, capable of 45 GPM (US) min
(2.2 liters/s min) @ 45 PSI (240kPa)
• Outlet: 2” (50mm) gravity drain to atmosphere
• Torsional damping: Required
• Weight: 90-140lbs (34-64kg) depends on options selected

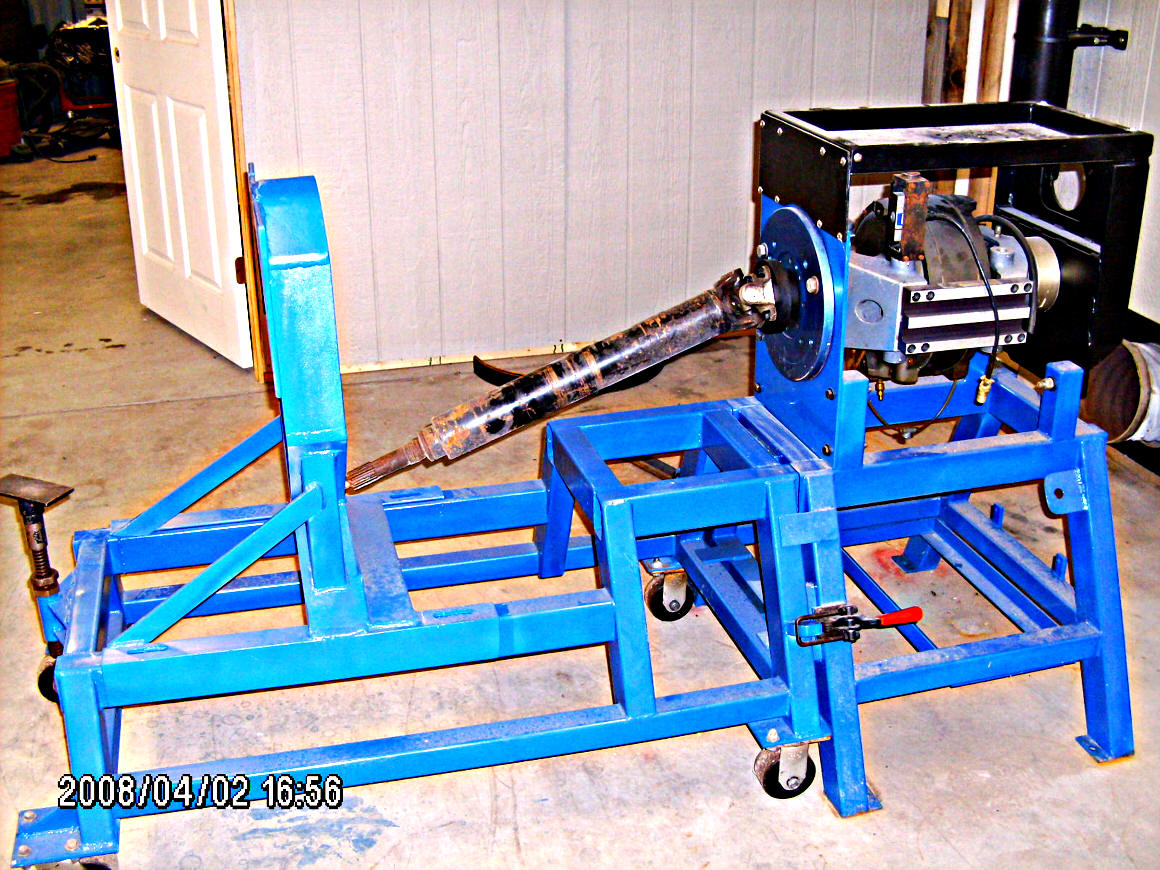

  1. D557 Go-Power Twin Rotor Water Brake and Stand

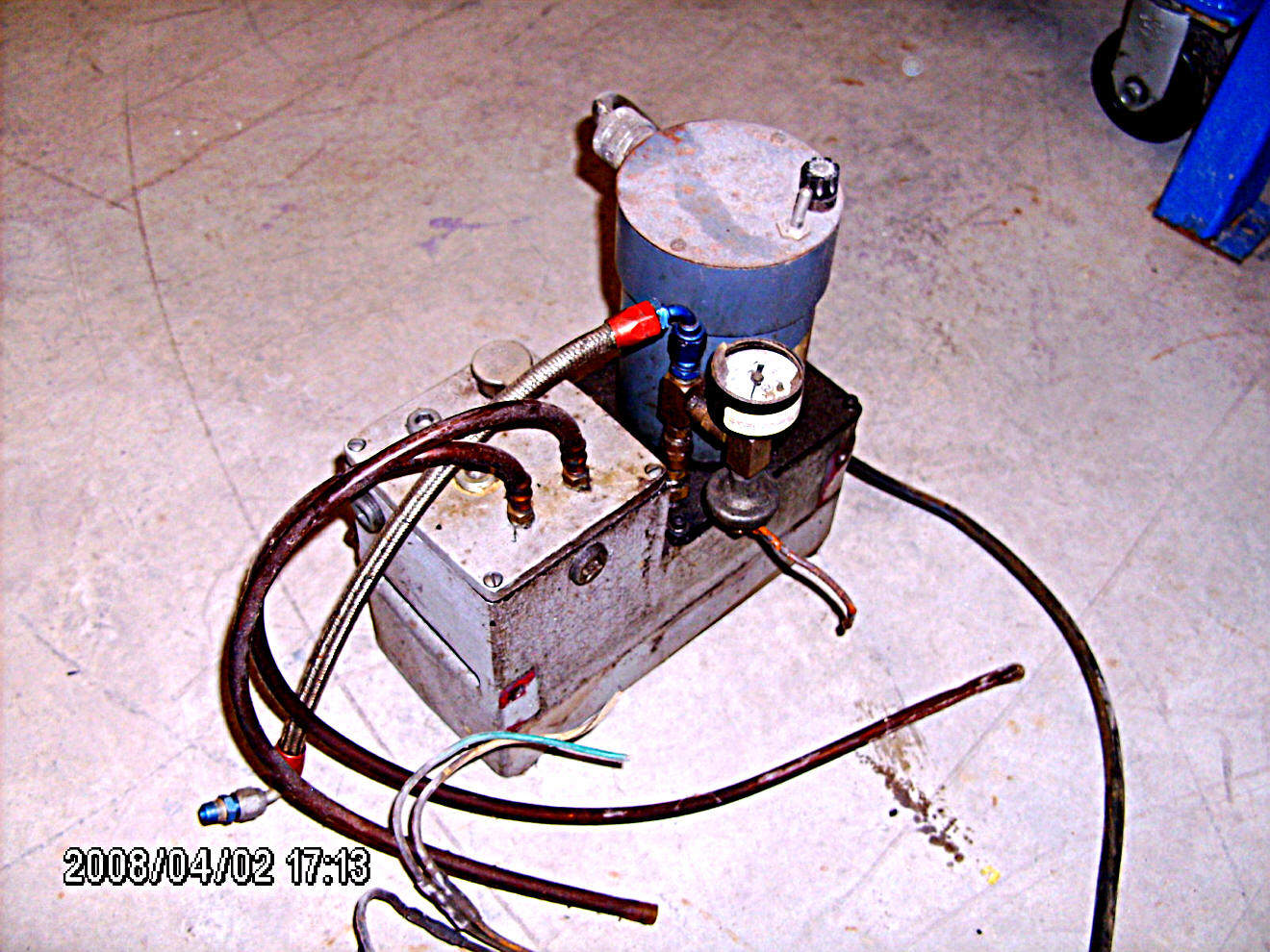

  2. Dyno Lubrication Oil Pump
  3. 2000 lb Strain Gage (Cable Included)
  4. Engine Docking Cart set up for Small / Big Block Chevrolet
  5. Dyno Driveshaft

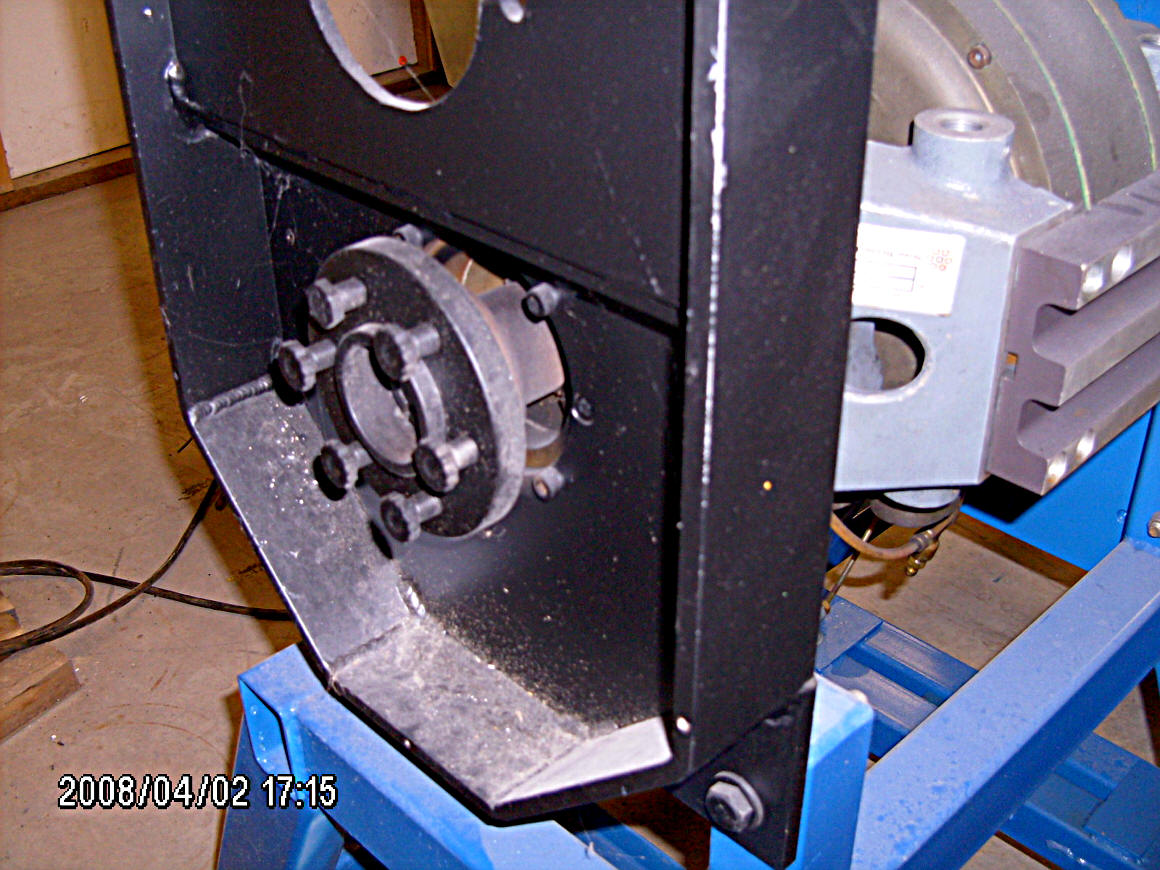

  6. SBC/BBC Flywheel and splined adapter for Dyno Driveshaft

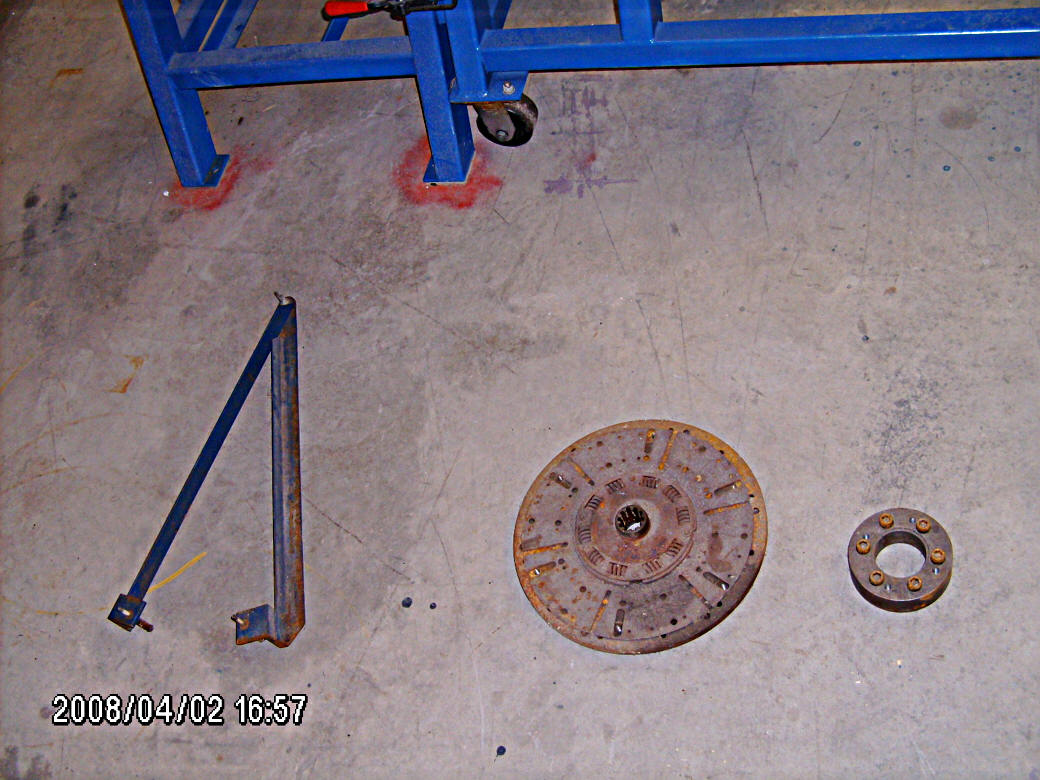

  7. Calibration Arm
  8. Original 750 lb/ft Torque Gage (Used with Diaphragm Load Cell which are included)

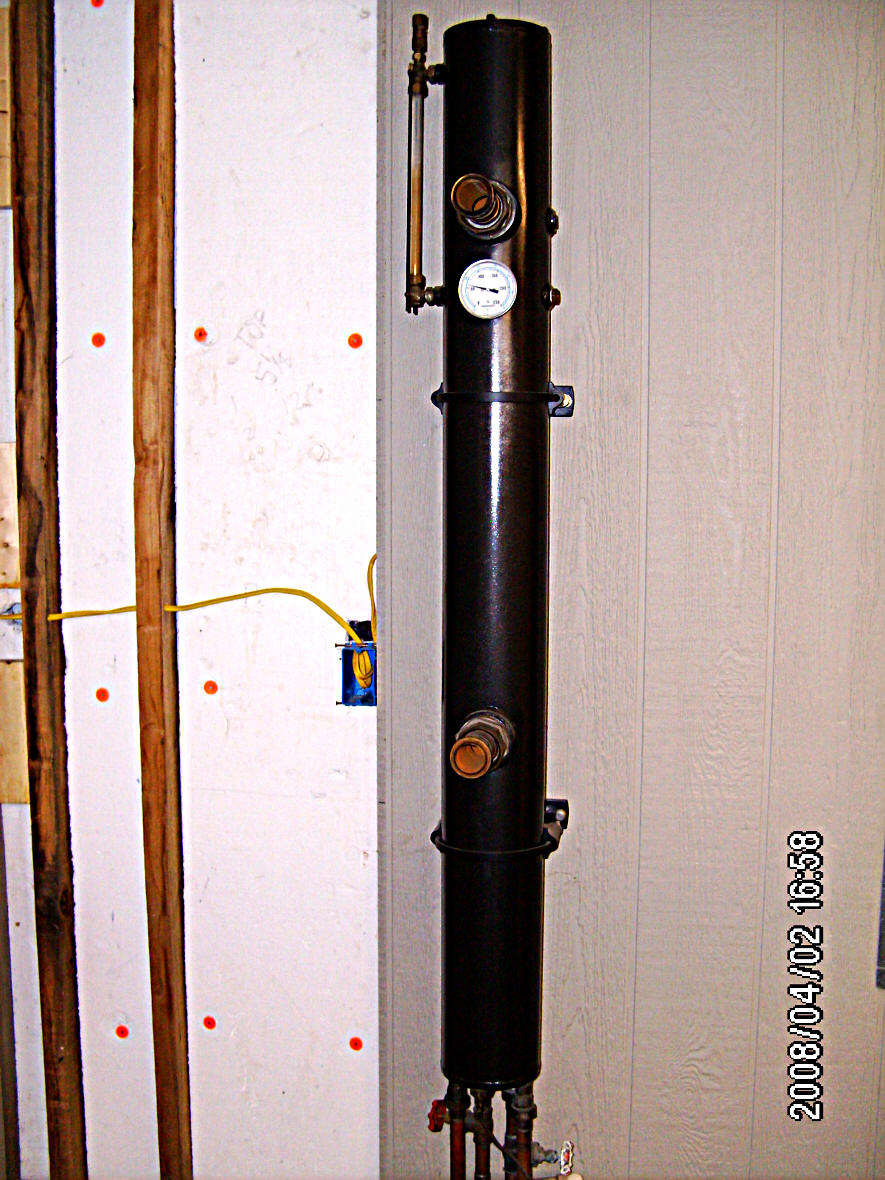

  9. Cooling Tower with assorted Copper tubing for plumbing purposes

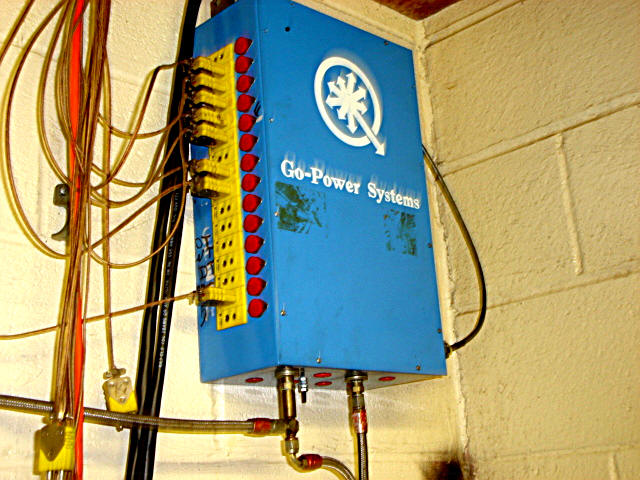

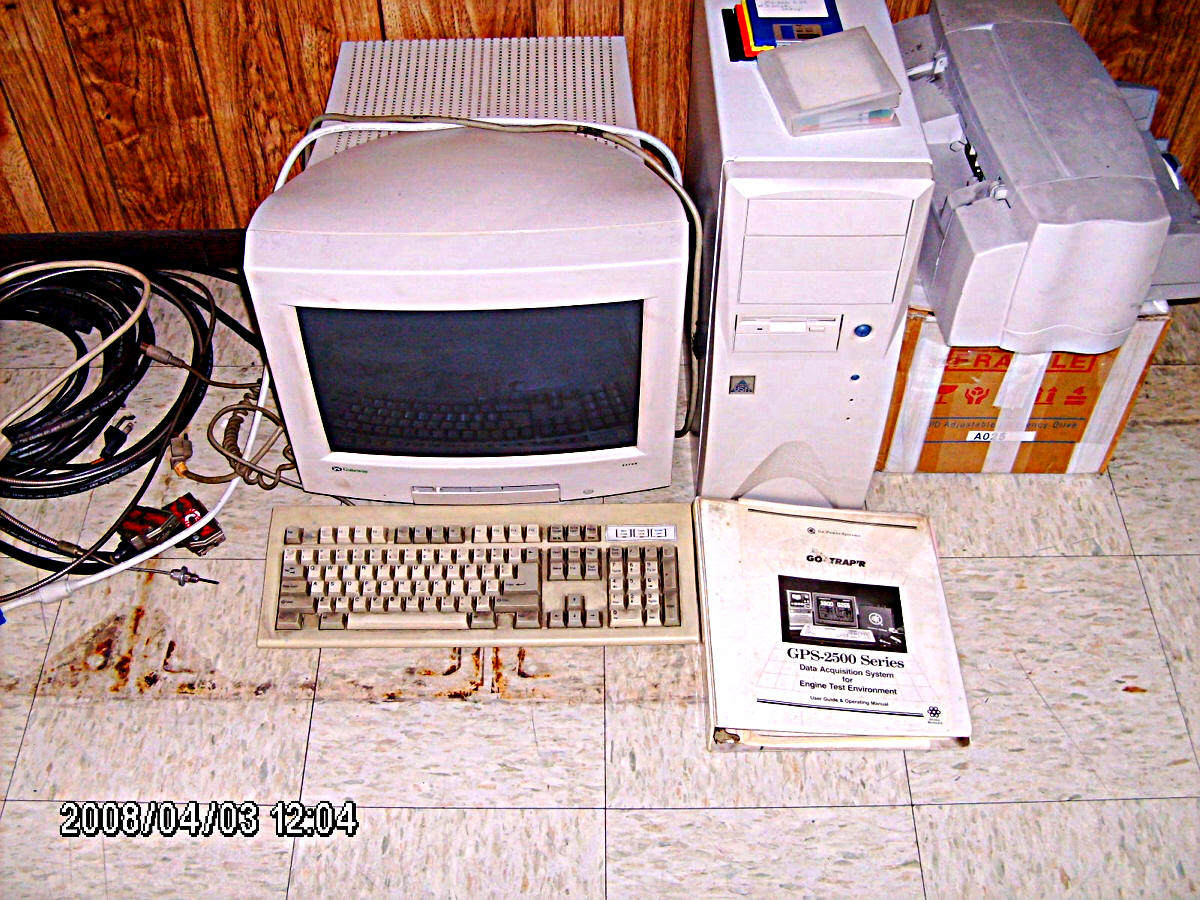

  10. Complete GPS-2500 Data Acquisition System
All items are in very good shape as you can see in the pictures
