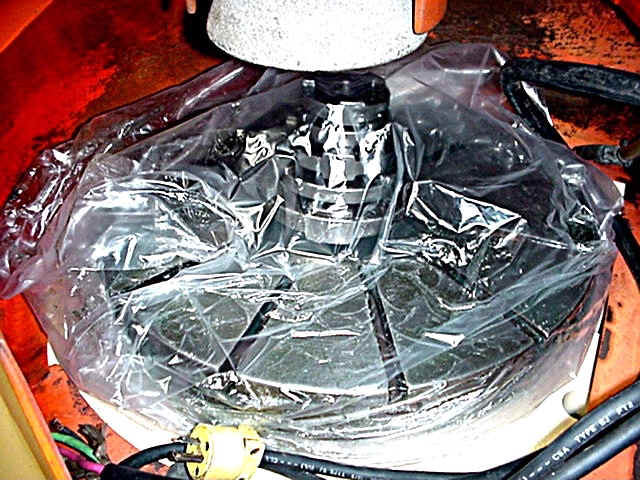

Heavy duty 18" diameter Rotary table with 12  T-slots

One piece base casting with Reinforcing Ribs assure maximum rigidity

Precision 10" diameter Roller thrust bearing

Removable front cover for access to machine adjustments

Dual Belt Work table Drive - Adjustable from front of machine

Table fully supported by integral Thrust Bearing

Friction reducing graphite impregnated surface on thrust Bearing

Oil bath lubrication between table and Thrust bearing

OPTIONAL CLUTCH TOOLING AVAILABLE

230 volt, 3 phase (also one phase)

motor =  5HP  3510 RPM

Height  =  5'  4"   Weight  =  1400 lbs.

Floor space =  3' x 3'

Maximum capacity  =  25"

Head Travel  =  8" vertical
