Service Brake & Clutch Riveter, De riveter, Line, De-Line

Brake Shoe Grinder

Back to Service Index     Back to Home    Contact Allstates

Allstate's Of America, Inc. 800 223 2573,   305 635-4525  Fax 305 635-5353      e-mail    Bob@allstates.com                http://www.allstates.com


STAR, riveter, deriveter and grinder. Includes some tooling, and a nice workbench cabinet. In very good working order. Hard to find a used one of this model. Priced at only $ 2,400.00

OTHER MODELS IN STOCK

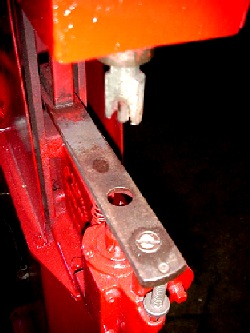

Star Machine Tool model 150 De-riveter De-Liner

Complete with tips, nice condition, refurbished

110 volt AC, asking price $800.00

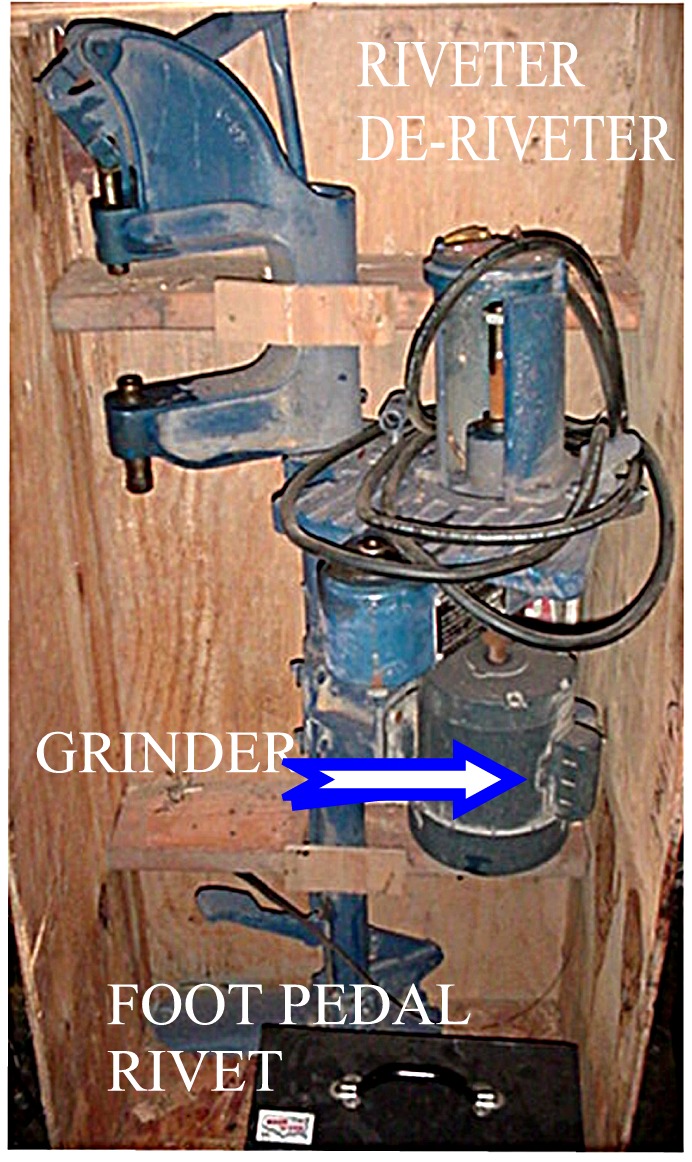

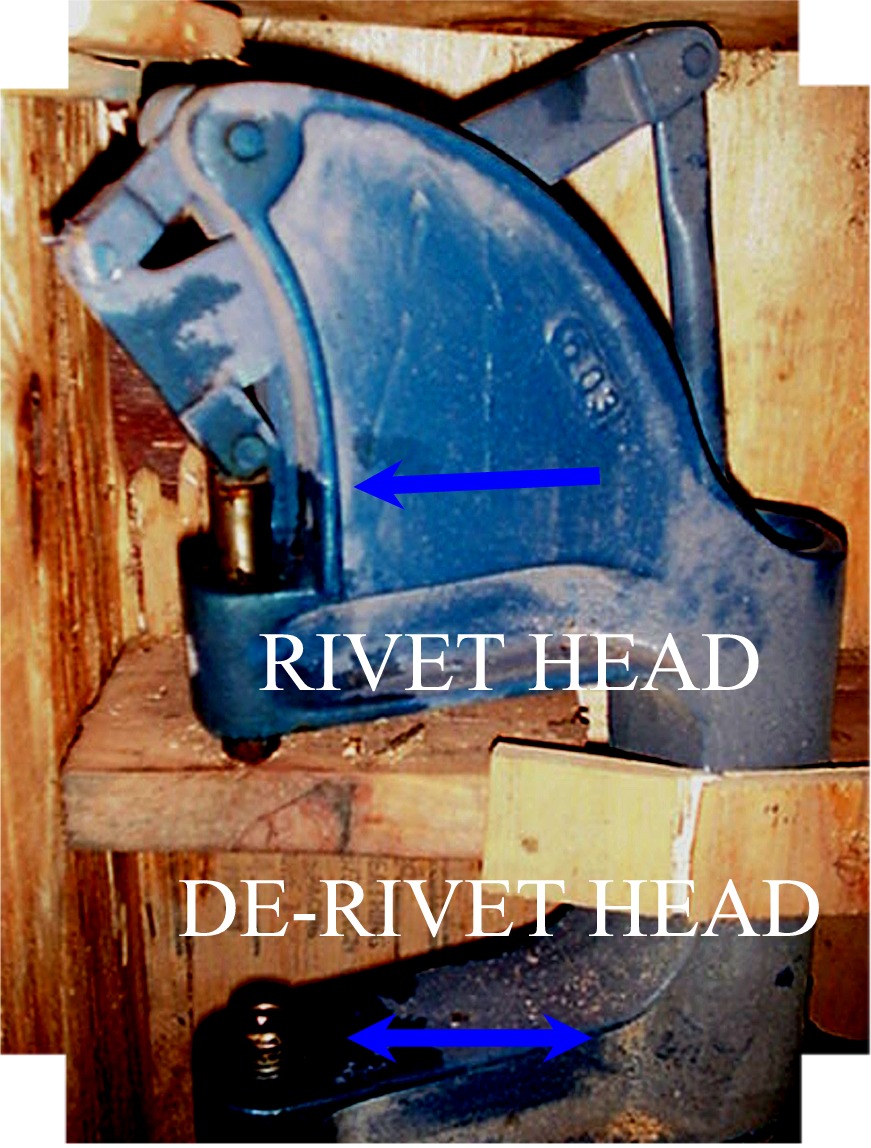

NEW RIVET, DERIVET, GRINDER, COUNTERSINK MACHINE
METALMAX MODEL 501 HEAVY DUTY COMBINATION ELECTRIC MOTOR AND FOOT OPERATED  RIVETER, DE-RIVETER, GRINDER USED IN THE MANUFACTURING, AND RE-MANUFACTURING OF AUTOMOTIVE BRAKE AND CLUTCH LININGS.

LARGE TOOL KIT INCLUDES:

BAG OF KNOCKOUTS        75, R-11, R-12, R-13,

BAG OF ROLL SETS            77, 78, AND 80,

BAG OF STAR SETS            74, 88,

BAG OF ANVILS                   34, 35 , 35A,

BAG OF BUSHINGS              36, 76,

BAG OF PINS (2 EA)             75-1, R-11P, R-12P, R-13P,

BAG DRIFT PIN, DERIVET   73, 81,

BAG ALLEN WRENCHES,     SD-28, SD-29, SD-37,

PLUG ADAPTOR

KNOCKOUT PIN                      DU-805-4

CARBIDE COUNTERSINKS   90, 95, 91,  92, 94, 96,

  SPECIFICATIONS

RIVETING CAPACITY RANGE (RIVET DIAMETER)         1/8"  TO  1/4"

DERIVETING CAPACITY RANGE (RIVET DIAMETER)    1/8"  TO  1/4"

DRILLING CAPACITY RANGE (DIAMETER)                      1/8"  TO  1/4"

COUNTERSINKING CAPACITY RANGE (DIAMETER)      1/4"  TO  1/2"

GRINDING CAPACITY RANGE (DIAMETER)                      6"  TO 24"

GRINDING CAPACITY WIDTH                                               7 1/2"

GRINDER RPM                                                                           1725

THROAT DEPTH                                                                        6 1/2"

DIMENSIONS         LENGTH 16",    WIDTH 24", HEIGHT 53 1/2"

MOTOR                       1/3HP, 115VOLTS, 60HZ. 1 PHASE, 175 RPM, TOTALLY         ENCLOSED FAN COOLED, FUNGUS PROOF.

WEIGHT                                                                                        160LBS.

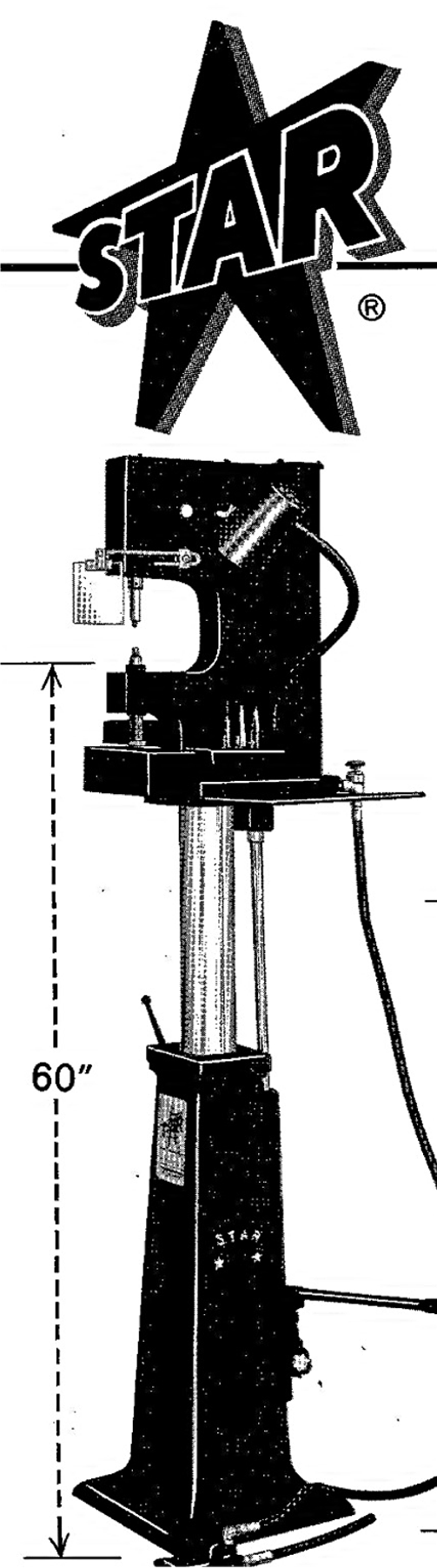

Star Machine and Tool model 170HL Air Power

Automatic riveter. Hydraulic adjustable head height from

42" to 60 " height. Rivet capacity-up to 3/8" semi-

tubular  6,500lbs. of plunger force

Handles a five foot brake band

net weight 345 lbs.



CLICK HERE TO SEE USED ONE IN EXCELLENT CONDITION

 MOST POWERFUL INDUSTRIAL-AUTOMOTIVE RIVETER. HYDRAULIC-ADJUSTABLE RIVETING HEAD HEIGHT

ONE NEW STAR MODEL 170V EXTRA HEAVY DUTY AIR POWERED RELINER FOR RELINING

 BRAKE SHOES AND CLUTCH PLATES, WITH A PEDESTAL MOUNTED COUNTERSINKER,

3” X 7.5’ GRINDER. COMPLETE WITH A ¾ HP MOTOR  115/230V, 60 HZ. SINGLE PHASE,

 1725 RPM AND STANDARD TOOLING FOR 3,4,5,7,8, AND 10 SERIES RIVETS.

ADJUSTABLE HEAD  UP TO 60” CAN HANDLE 5 FOOT BRAKE BANDS.



SHIPPING WEIGHT IS 448LBS.







Star model 80LC Heavy duty Riveting and Counter

Sinking machine. Will remove and set all tubular rivets

from 3-3 to and including 10-12 Built in hydraulic

compensating cylinder to eliminate breakage.

Non-repeat foot treadle . Deep throat

for large clutches, brake shoes and bands.

1/2 HP 115 volt motor. Price $1,600.00

Star model 80H De-riveter, De-Liner

Barrett manual Rivet machine

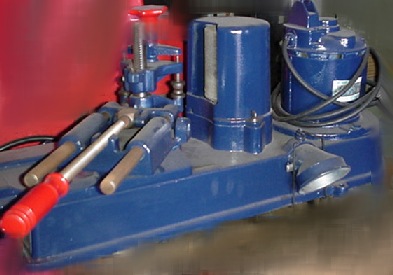

Ammco brake shoe grinder

heavy duty, drum type. Uses

coarse paper. 110 volt, 1 phase

50-60 hertz. refurbished price

$800.00

Barrett model Brake shoe grinder. uses "pad' for grinding.

4 available. Price  $600.00 each refurbished

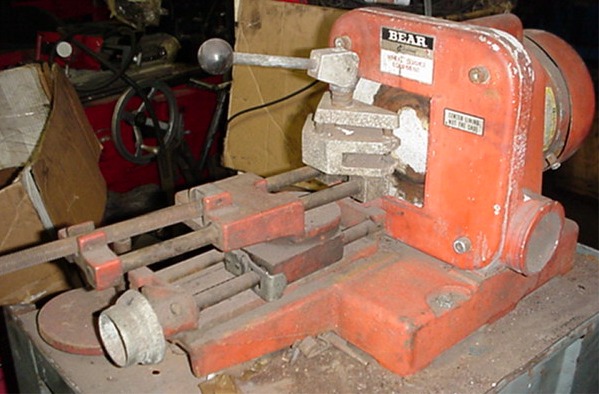

Bear brake shoe grinder. Uses

disk pad for grinding. Refurbished

price is $600.00

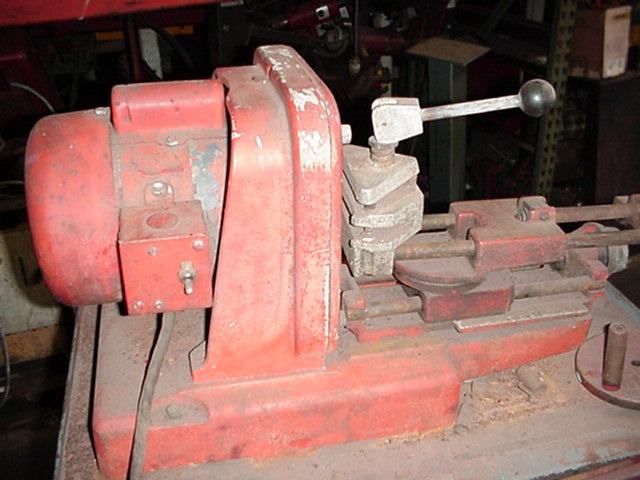

BEAR SHOE GRINDER ARCHER

$600.00
