Parking/Hobby Lifts

Print brochure as a PDF

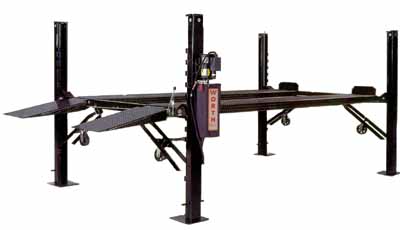

SP7000   SP7000ET
key.jpg (2573 bytes) Commercial Grade motor with key lock. The key lock feature is optional and keeps just anyone from operating the lift. The unit can be ordered in 12V, 110V or 220V.
Jtray.jpg (2870 bytes) Jacking Tray is optional on the Shop Pro 7000 and lets you have the capability of jacking the vehicle up while on the lift (to do tire rotations and brake jobs).
aramp.jpg (2450 bytes) Aluminum Ramps are optional on the Shop Pro 7000 and provide a lightweight, easy to remove ramp.
caster.jpg (2518 bytes) Caster Kit is optional on the Shop Pro 7000 and lets you have the capability of moving your lift as needed.
dtray.jpg (2976 bytes) Poly Drip Trays are optional on the Shop Pro 7000
and provide a light - weight drip cover for vehicles below.

deck.jpg (2095 bytes) Solid Deck is optional on the Shop Pro 7000 and is great when storing anything including motorcycles.



Specifications SP7000 SP7000ET

Wheelbase 160" 180"
Ramp Width (C) 19" 19"
Clearance Between Post (D) 93" 93"
Overall Length (including 36" Ramps) 17'2" 18'10"
Overall Height 81" 91"
Overall Width 106" 106"
Lifting Capacity (lbs.) 7000 7000
Motor 1HP 1HP
Voltage (Single Phase) 60HZ 110 110
Lifting Time (Seconds) 50 55
Maximum Clearance Under Runway 67.5 77.5
Shipping Weight (lbs.) 1735 1898


Features

*Extended lift height to provide enough room for vans and SUV's
*Aircraft quality tested lift cables
*Rigid anti-spread column design for added stability.
*Precision individual spring locks with 10 locking positions to let you set your
  vehicle at several different heights with safety.
