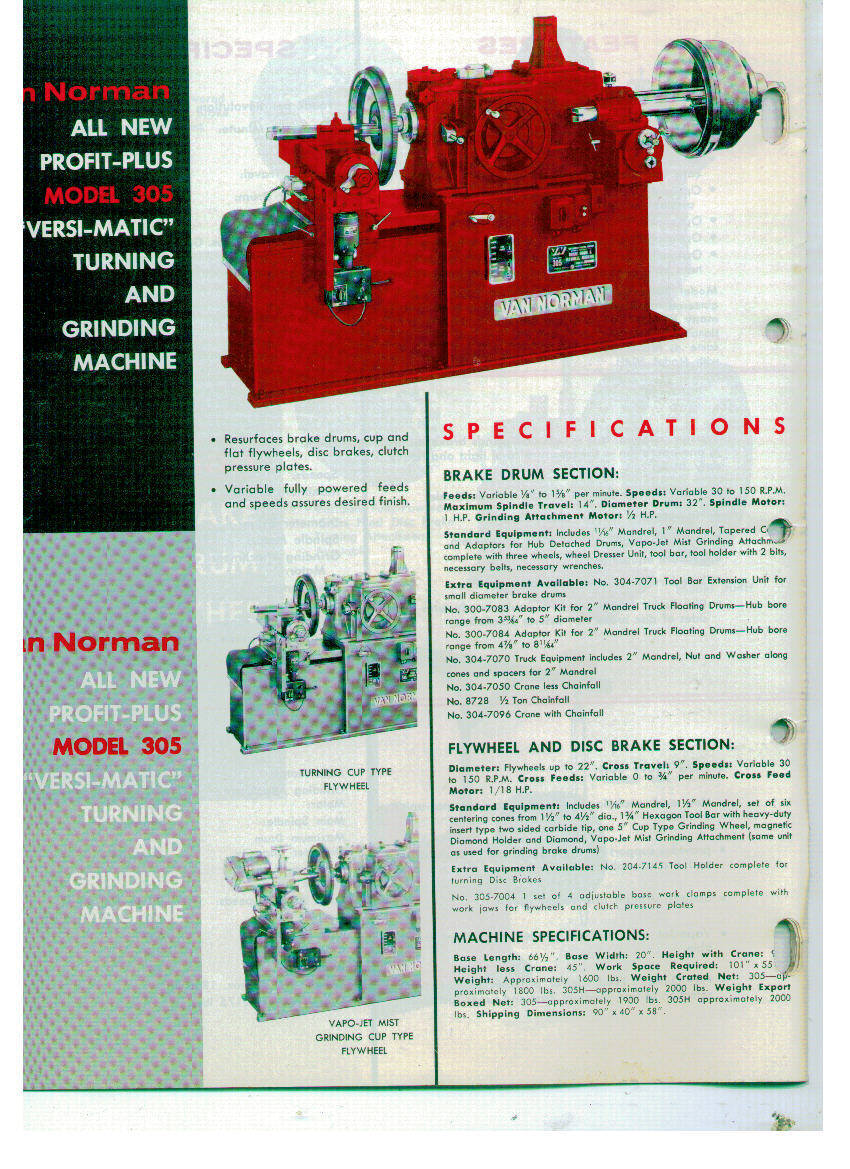

VAN NORMAN model 305H TRUCK DRUM LATHE Super heavy duty, easily handles dual wheels. refurbished and works great. Standard truck adaptor set included.    Price  $5,500.00

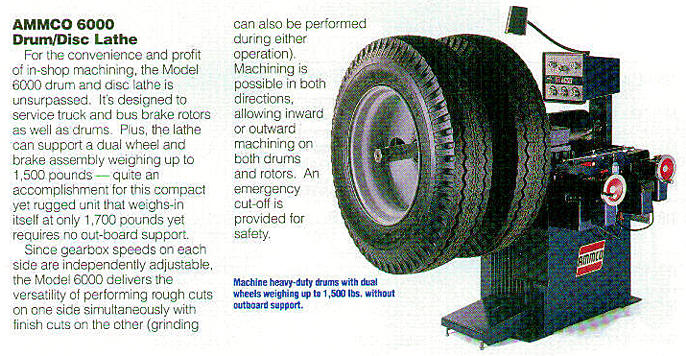

 AMMCO MODEL 6000 TRUCK LATHE. AMMCO MODEL TRUCK DRUM LATHE.  $7,800.00

VAN NORMAN MODEL 304 TRUCK DRUM LATHE. SUPER DUTY, DUAL WHEELS, REFURBISHED. WITH ADAPTORS.  $4,500.00


  Back to Brake Lathes   Back to Home  Contact Allstates



Allstate's Of America, Inc. 2595 NW 37TH. ST. MIAMI, FLORIDA 33142 USA        800 223 2573,   305 635-4525  Fax 305 635-5353      e-mail    Bob@allstates.com                http://www.allstates.com

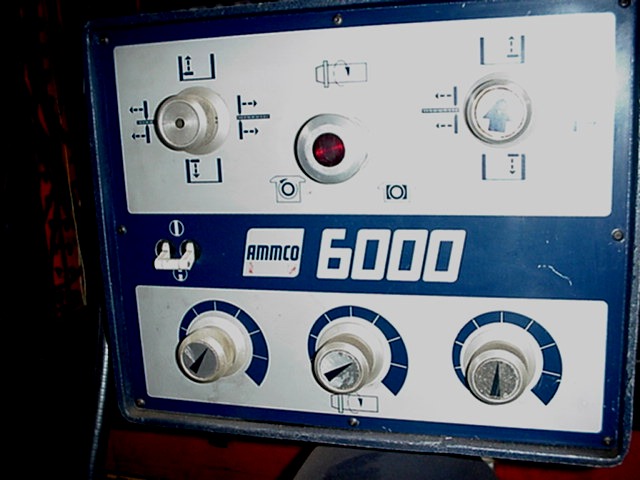

THIS AMMCO MODEL 6002 IS IDENTICAL TO THE MODEL 6000 EXCEPT IT DOES NOT HAVE THE OPTIONAL LEFT SIDE CROSS FEED AND SADDLE.

IT WILL RESURFACE DRUMS, ROTORS AND FLYWHEELS. INCLUDES A NICE SET OF ADAPTORS FOR LARGE SIZE DRUMS AND ROTORS.

OPTIONAL MODEL 6200 DUAL FACING TOOL MAY BE ADDED LATER ON FOR SURFACING BOTH SIDES OF LARGE ROTORS SIMULTANEOUSLY.

VERY NICE ORIGINAL CONDITION. HAS NOT BEEN USED VERY MUCH.

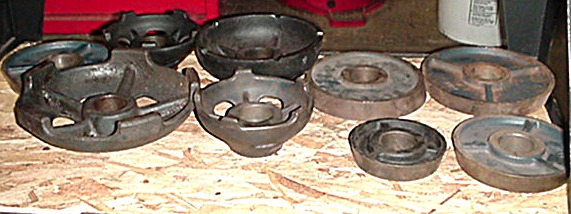

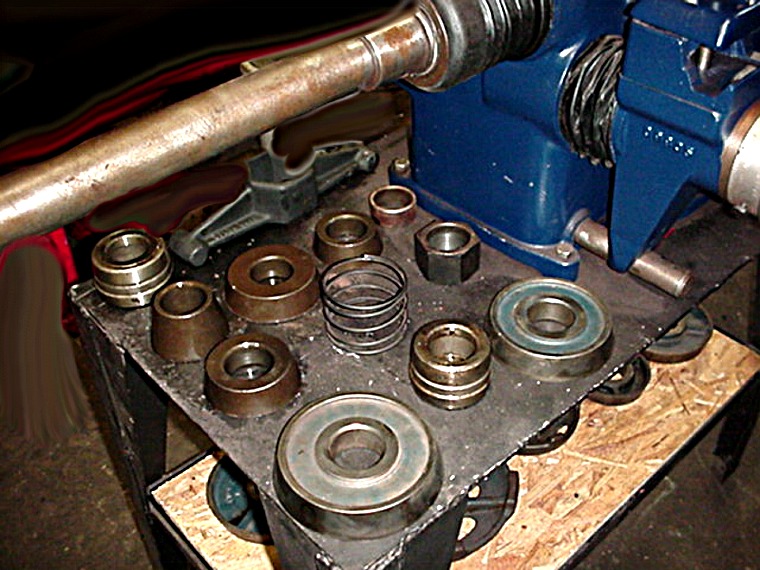

INCLUDES THE VERY HEAVY DUTY GRINDER ATTACHMENT, AND A SELECTION OF HEAVY DUTY ADAPTORS.

PRICED AT $ 7,800.00



FACTORY PRICE WAS $28,000.00

OVERALL LATHE HEIGHT 57"
SPINDLE TO FLOOR 39"
TURNING TRAVEL 18"
FACING TRAVEL 7"
SPINDLE SPEED, VARIABLE 20-140 RPM
FEED RATES, VARIABLE .0625IN./MIN.

.750IN./MIN

HANDWHEEL GRADUATIONS .001"
MAXIMUM LOAD  2.5" ARBOR 1500 LBS.
SPINDLE MOTOR 1.5 HP 180 VDC
ELECTRICAL REQUIREMENTS 220 VAC,

50-60HZ. 1PH.

LATHE WEIGHT 1600LBS.

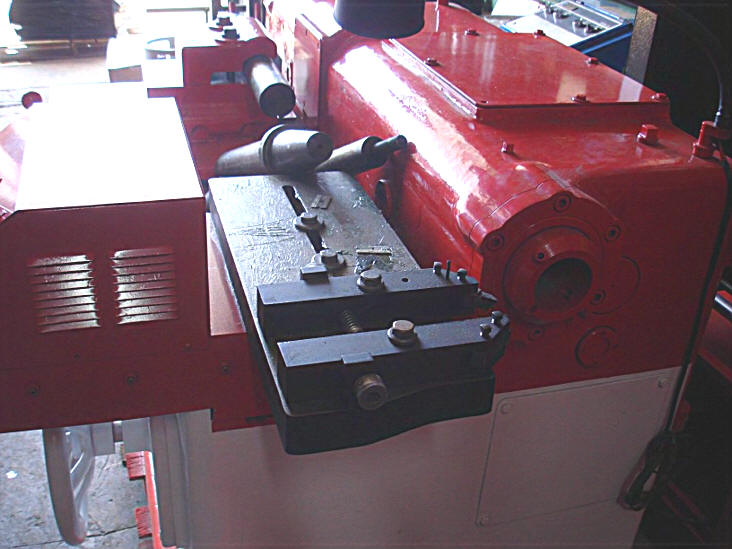

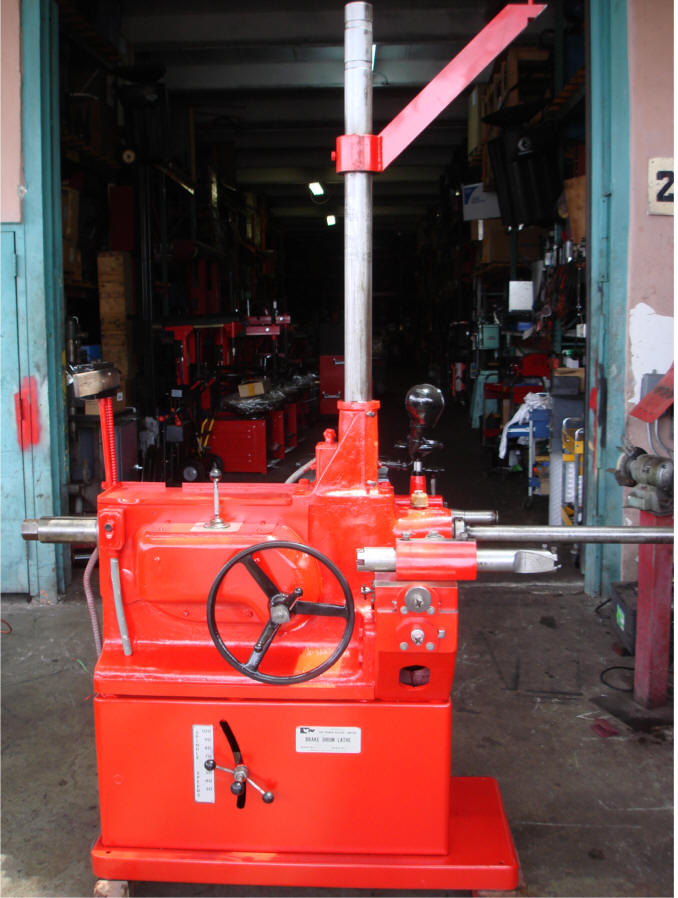

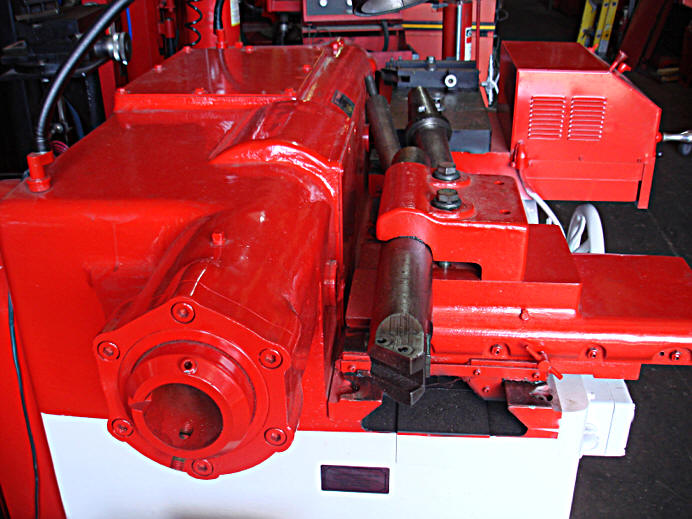

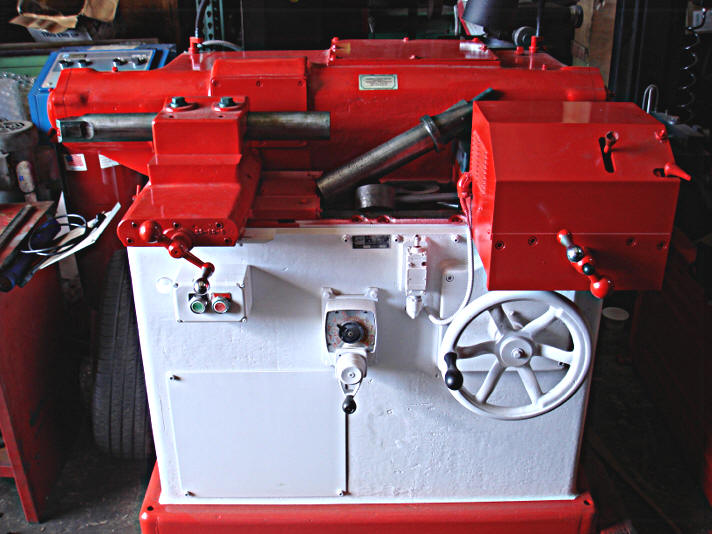

The Star Transfermatic Double Spindle Brake Drum Lathe, Model 53-DS, was designed specifically for buses, heavy duty trucks and trailers and airplane wheels.  Drums are bored on one spindle and mating linings are turned on the other by means of the exclusive Transfermatic method.  The drum turning arbor is of 2-1/2" diameter alloy steel, easily capable of handling the modern, heavy dual drums with tires mounted.  Boring bars are also 2-1/2" in diameter insuring clean, heavy cuts free of vibration.  Using the latest design and practice with carbide cutting tools, you will get a free cut and smooth finish in the drum -- a procedure that has been proven to be the best through millions of miles of testing.  The Transfermatic incorporates many of the fine features and precision manufacturing that have earned an outstanding reputation for Star as a builder of the hightest quality machinery for the automotive, truck, bus and aircraft industries.

  • The Transfermatic machine can reface a drum 16" deep with a maximum diameter of 24" with one continuous cut.  If necessary, the stroke can be increased to 24" and the depth to 30" by a simple design modification.
  • The speed selector allows an infinite adjustment from the lowest to the highest RPM -- standard is from 20 RPM to 90 RPM.  The speed can be changed in a matter of seconds.
  • Feeds available are .003", .005", .010" and .018" per revolution.
  • The Transfermatic machine provides a means of boring the drum and simultaneously turning the lining to the exact diameter of the newly refaced drum.  This method is now standard practice by the largest fleets of bus operators in the U.S.  The method has been proven with billions of miles of use.
  • There is a special reconditioning and field service program just for the Transfermatic Lathes.









STAR MODEL 2000 TRUCKS, BUSES, OFF-ROAD EQUIPMENT SK AND DRUM LATHE.

LIGHTLY USED. FIRST CLASS . 16" DEPTH CAPACITY 5" to 30" DISC CAPACITY.

GRANDE CAMIONS. RECTIFICADORA DISCO TAMBURAS.

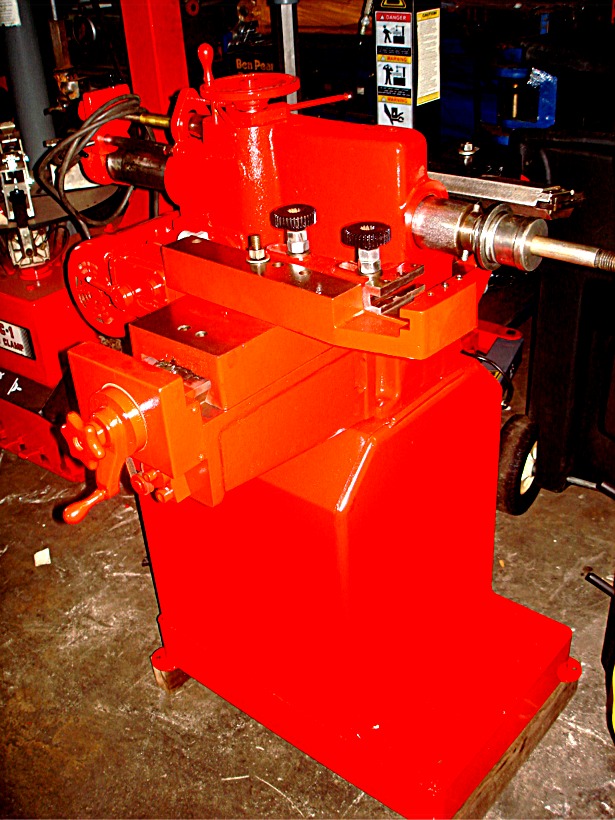

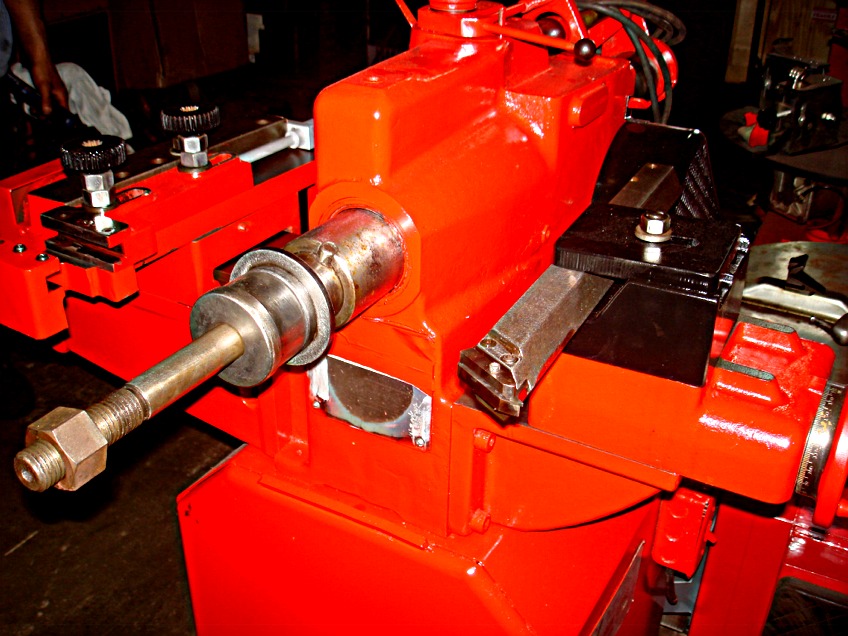

BEAUTIFUL, VERY LITTLE USE VAN NORMAN 204 CAR AND TRUCK DISK AND DRUM LATHE

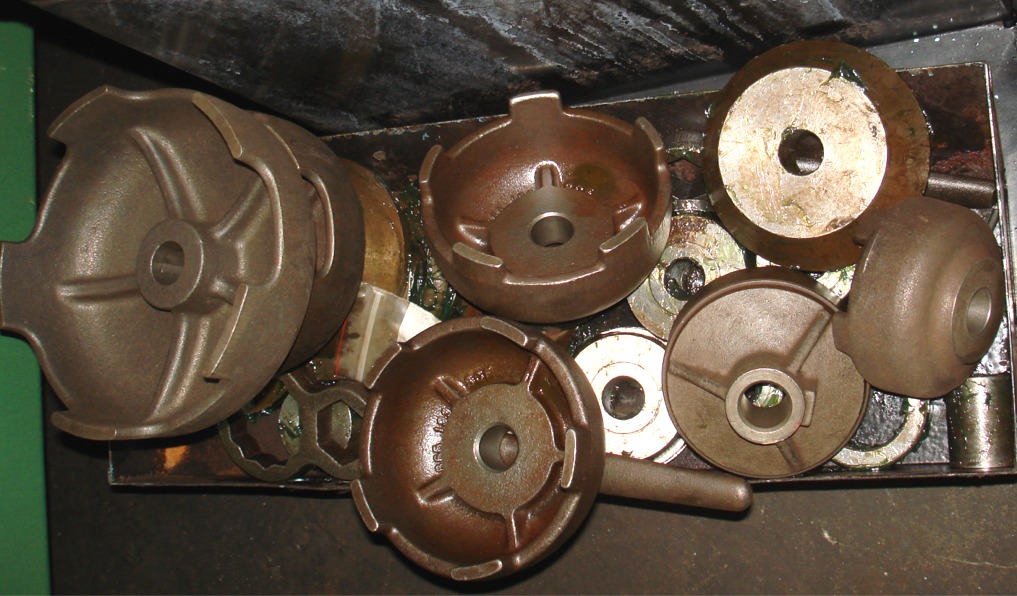

INCLUDES NICE ADAPTOR SET

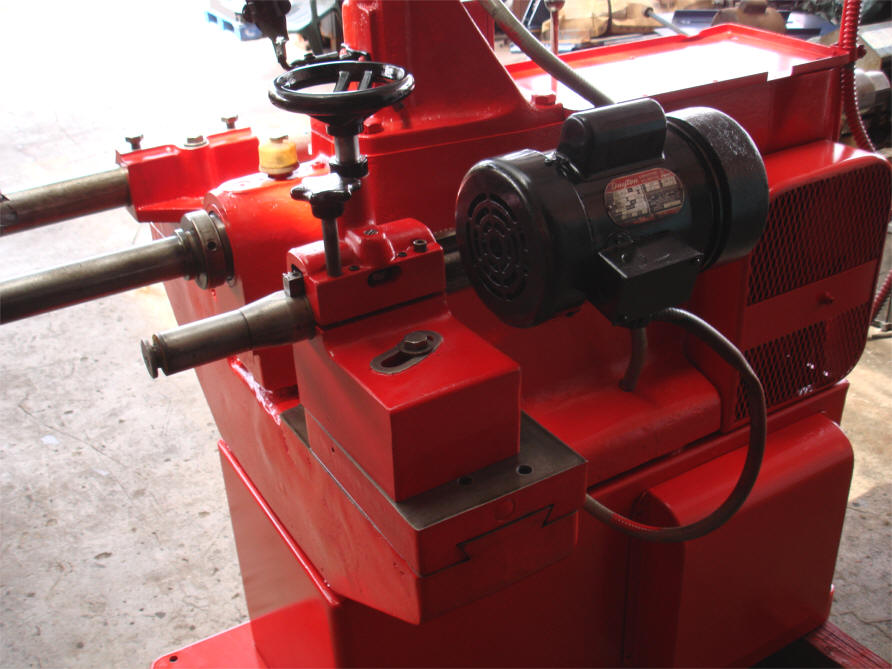

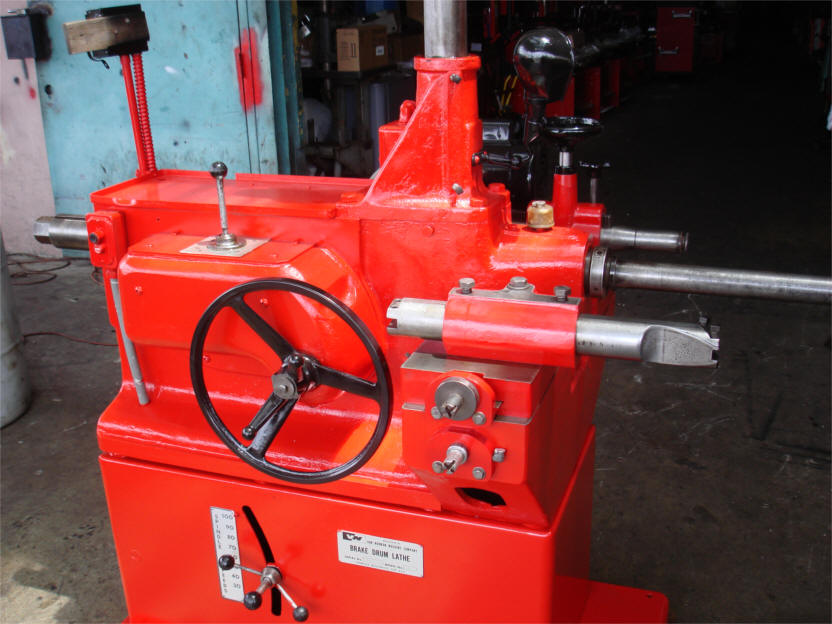

RECONDITIONED VAN NORMAN 304 TRUCK LATHE

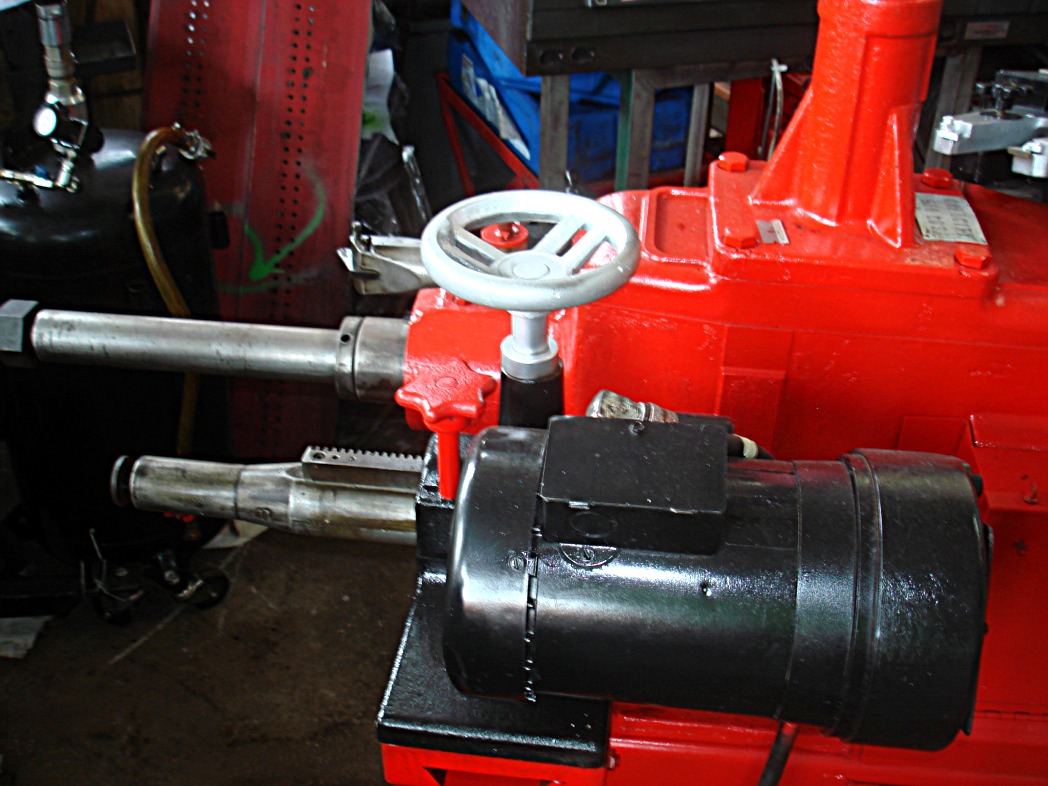

INCLUDES GRINDER

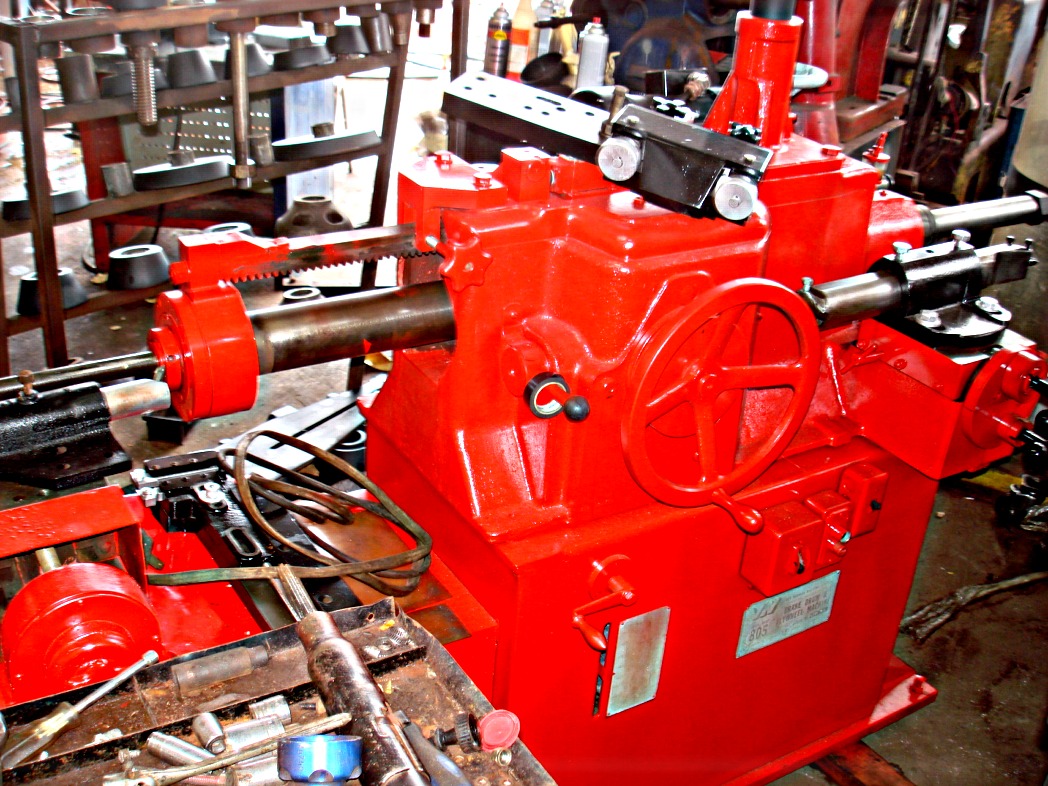

VAN NORMAN 305 DRUM LATHE FULLY RECONDITIONED, BEAUTIFUL QUIET

$7,500.00 with adaptors







 ONE INCLUDES THE ROTOR AND FLYWHEEL FACING ATTACHMENT SHOWN ON THE LEFT SIDE OF THE LATHE. THIS ONE INCLUDES ADAPTORS AND IS PRICED AT $7,500.00

Includes many adaptors and extra shafts of different sizes. flywheel and rotor tooling is included.







WE ALSO HAVE A MODEL 204 AVAILABLE, PRICED T $4,000.00

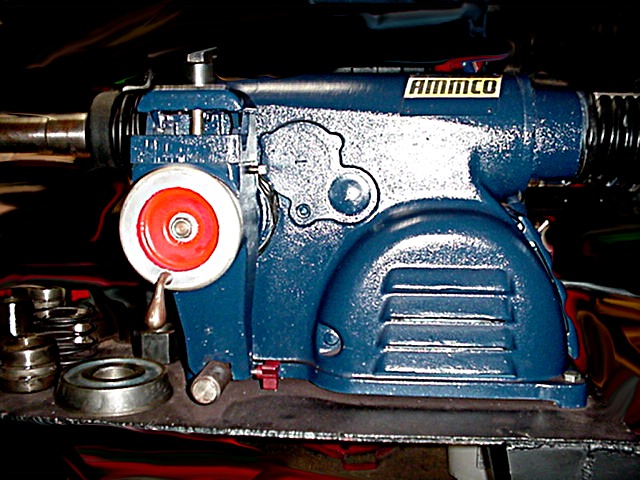

AMMCO MODEL 7700 HEAVY DUTY DRUM-FLYWHEEL LATHE
RECONDITIONED AMMCO  MODEL 7700 HEAVY DUTY TRUCK DRUM LATHE. INCLUDES TRUCK ADAPTOR SET, OUTBOARD SUPPORT AND STEEL BENCH. WILL HANDLE "DUAL" WHEELS WITH TIRES MOUNTED UP TO 600LBS.  HANDLES DRUMS FROM 6" TO 28"  WORKS GREAT. $ 3,800.00   SORRY  SOLD

ADD THE OPTIONAL AMMCO 7000 ROTOR LATHE WITH TRUCK ADAPTOR SET FOR $2,300 RECONDITIONED.
