ORBICUSHION 270 THREAD BUILDER 1999 REPOSSESSION  $25,000.00

ALMOST NEW. USED FOR ONLY THREE MONTHS. BANK REPO

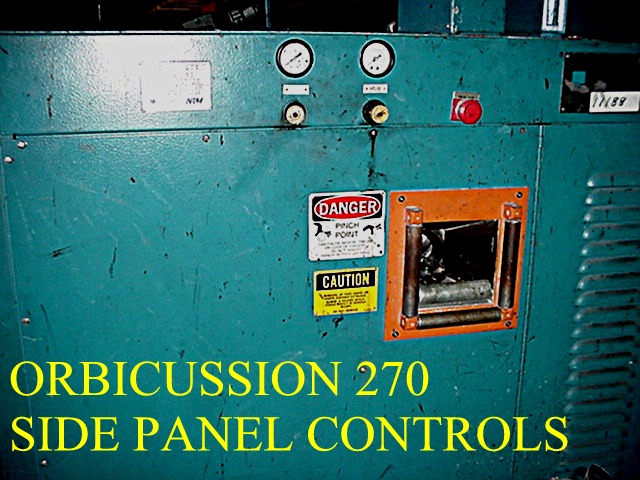

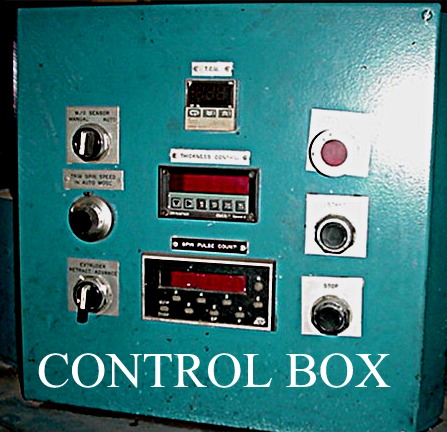

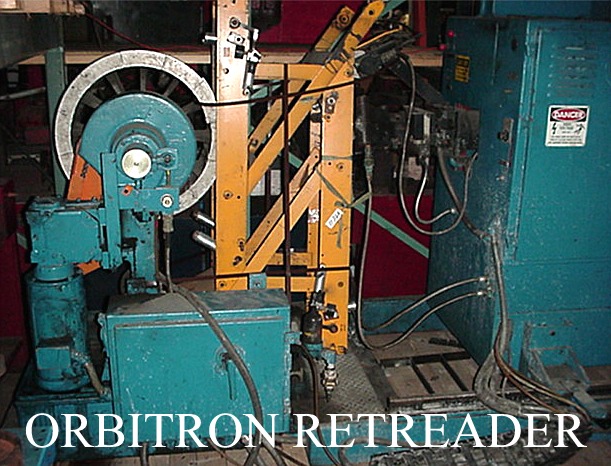

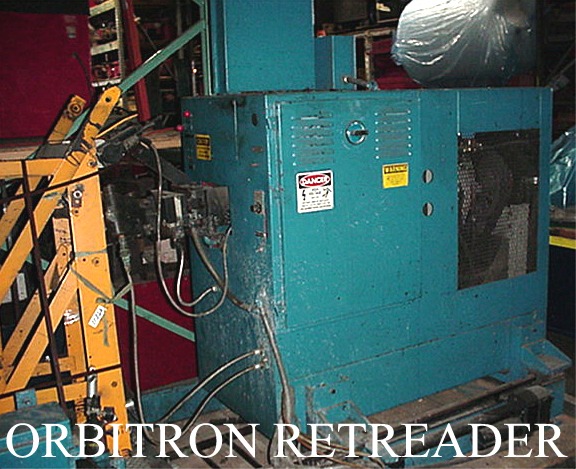

270 Orbicushion                    Technical Specs

 The Orbicushion applies hot extruded cushion gum directly onto a buffed tire casing in one revolution and represents the new generation in precure building. The result is an extremely versatile system that's not only easy to operate, but is dedicated to your precure building needs. Hot application of the cushion results in a superior bond to the tire casing eliminating the need for spraying tire cement and ensuring a more uniform end product. No other system offers such savings in time, material and labor.

ENHANCED MODULAR CONSTRUCTION
Orbicushion employs an extruder with a 3" screw mounted on an adjustable slide. Its special contoured die head with a rotatable feature allows for rapid setting of the cushion width. Setting the width will automatically adjust the tire speed. The spin station has an expandable hub powered by a variable speed, 1 HP DC motor. Also available as optional accessories are Precure Builders complete with a tread aligning unit, cutting mechanism and stitcher assembly and cross rails to allow the machine to shuttle between two or three spin stations with precure tread builders. In addition, a rope making die head (for extruder guns) is also available. All accessories are at additional cost. Each of the basic sections is modular and can stand alone. This allows flexibility for those who require either serving multiple builders for high production shops or independent build sections for the special needs.

SERVICE NETWORK
McNeil & NRM, Inc.offers worldwide network of Sales and Service offices





Model 270 -- ORBICUSHION MACHINE GENERAL SPECIFICATIONS

DIMENSIONS
	Extruder System
	Length 79" X Width 41" X Height 55" (2007 mm  X 1041 mm X 1397 mm)
	Floor space 80" x 64" (2032 X 1626 mm)
	Weight 2600 lbs. (1182 kg) 	Shipping weight 3200 lbs. (1455 kg)

	Spin Station (Build Section)
	Length 33"X Width 36"X Height 46" (838 mm X 914mmX1168 mm)
	Floor space 130" X 64" (3302 X 1626 mm)
	Weight 600 lbs. (273 kg)	Shipping weight 800lbs. (364 kg)

	Precure Builders
	Length 51" X Width 56"X  Height 60" (1295 mmX1422 mmX1524 mm)
	Weight 1200 lbs. (545 kg)  	Shipping weight 1500 lbs (682kg)
	Floor space for Orbicushion with two Builders:
                         174" X 105" (4420 X 2667mm)

UTILITY REQUIREMENTS
         Power 	200-208V, 3 Ph, 50/60 Hz*,150A
	                230 V, 3 Ph, 50/60 Hz*,125A
	                380 V, 3 Ph, 50 Hz**100A
	                415 V, 3 Ph, 50 Hz,100A
	                460 V, 3 Ph, 50/60 Hz,60A
	                550 V, 3 Ph, 60 Hz (with special transformer),50A
	      *  Part wind start available    **  Star-Delta available
        Air (Pneumatic)
	     125PSI @20CFM(8.79kg @.56 m3/min)for tire inflation and precure stitcher cylinder

TIRE SIZES
        Tire Diameters :  27" through 50" O.D. (686 - 1270 mm)
	Bead Diameter:  16.5" through 25" (420 - 635 mm) with multiple rims
	Cushion Gum thickness:- .040" through .090" (1.34 - 2.67 mm)
	Output Rate : 2.5 lbs to 3 lbs/min (1.14 - 1.36 kg/min)

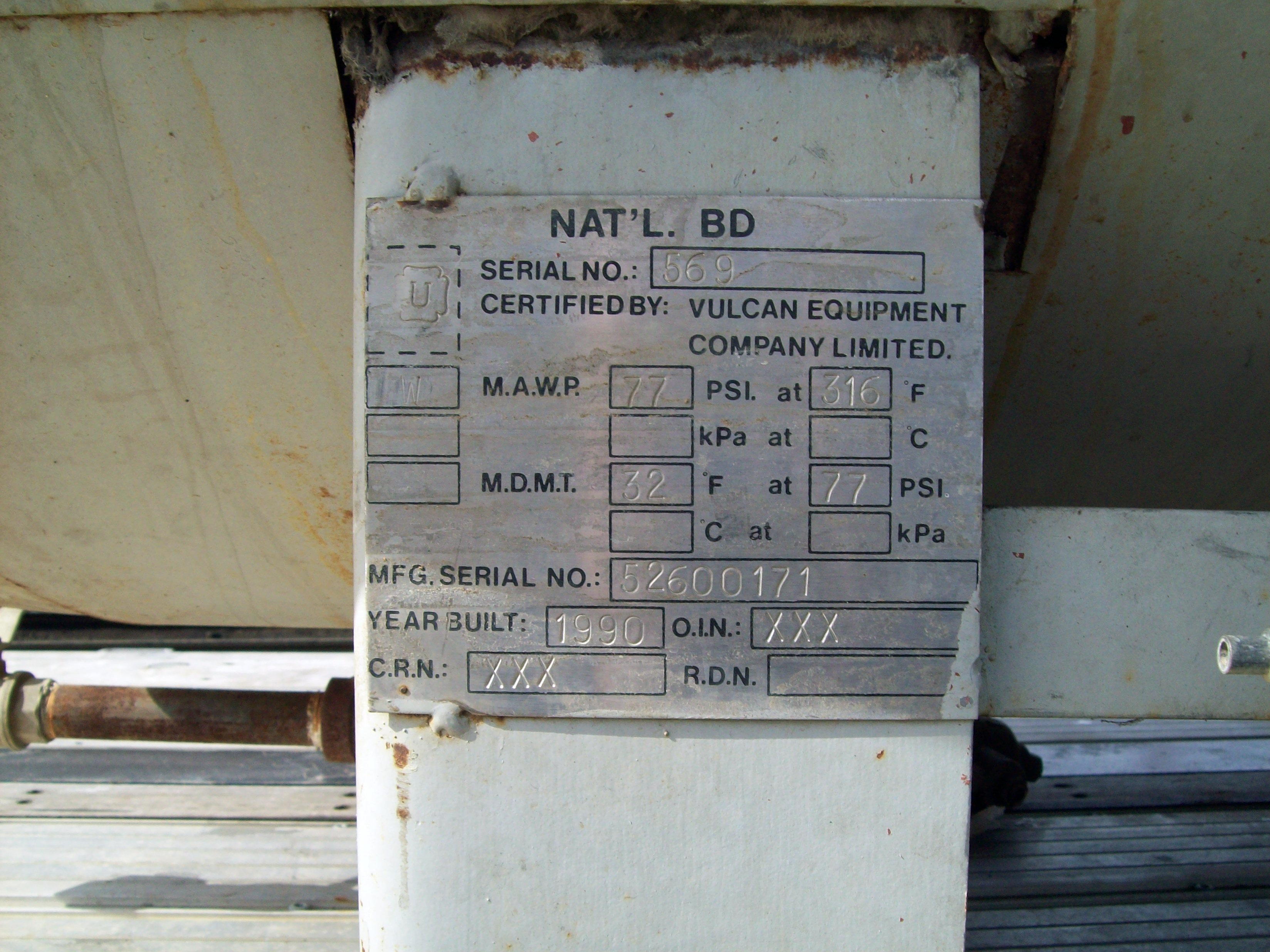

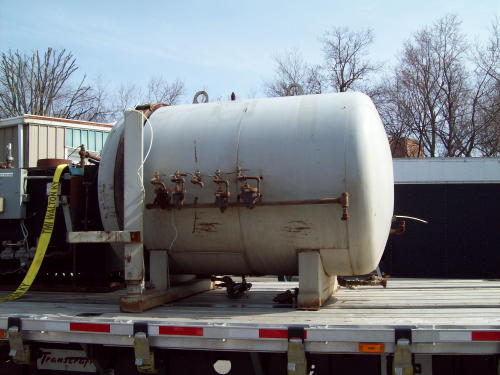

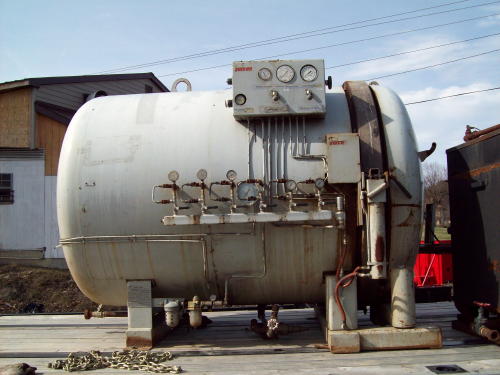

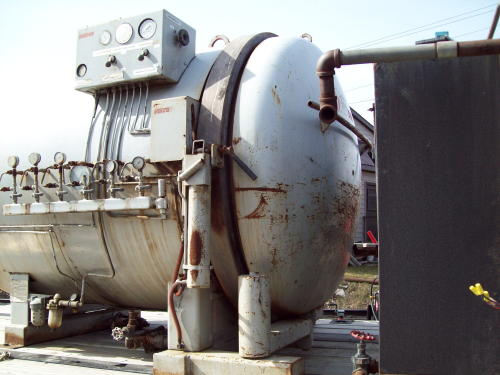

VULCAN VACUUM CURING CHAMBER

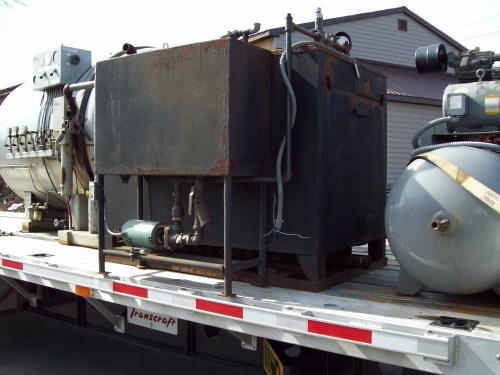

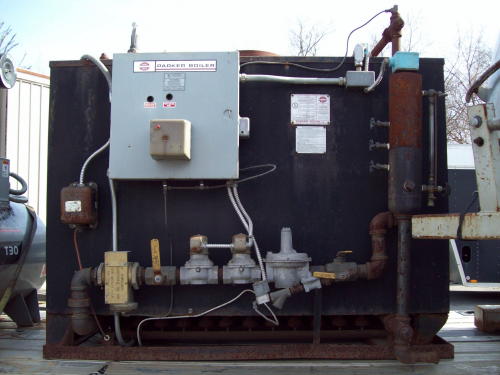

PARKER BOILER FOR RETREADING

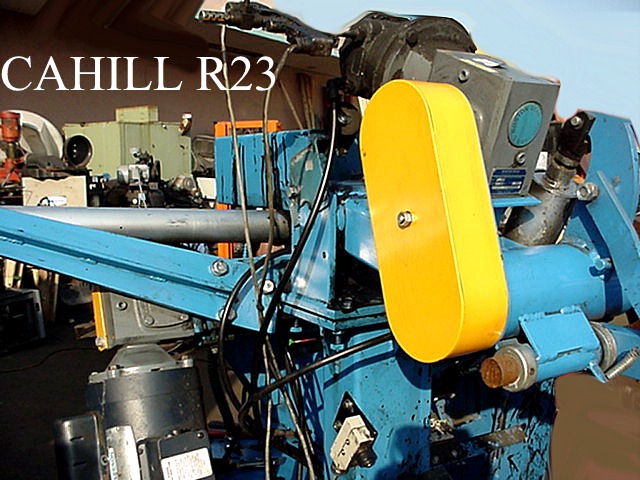

CAHILL R-23 THREAD BUILDER 1999 REPOSSESSION      SORRY THESE ARE SOLD

YOU WILL NEVER SEE USED MACHINES IN THE ALMOST NEW CONDITION OF THESE. SEE THE YELLOW AREA THAT WE WIPED CLEAN ON THE LOWER LEFT PHOTO.

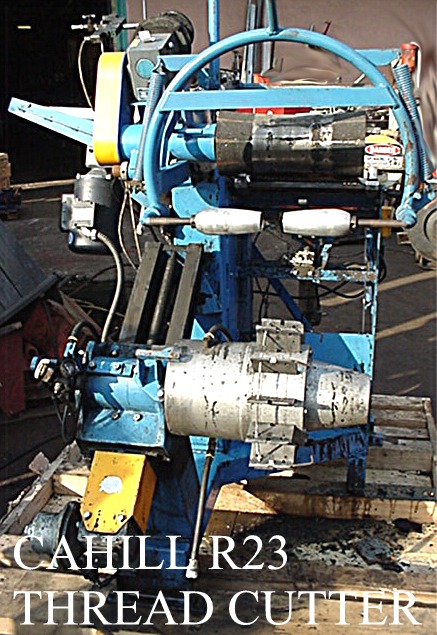

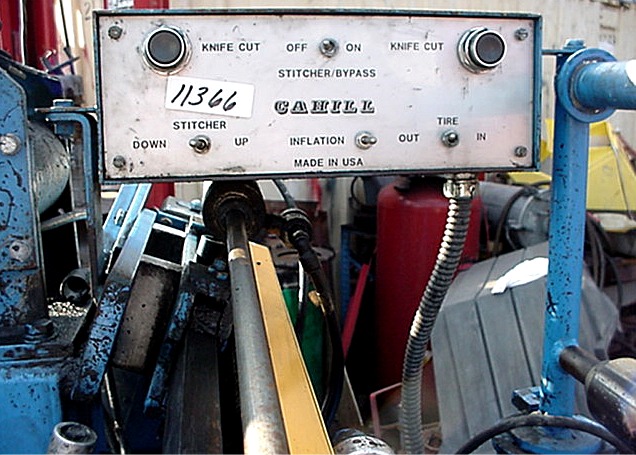

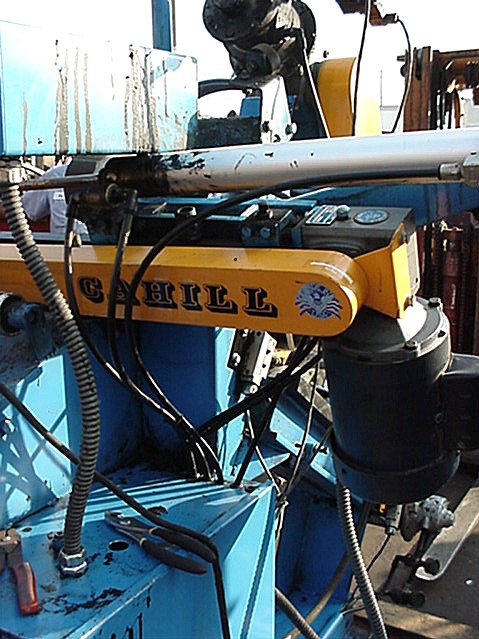

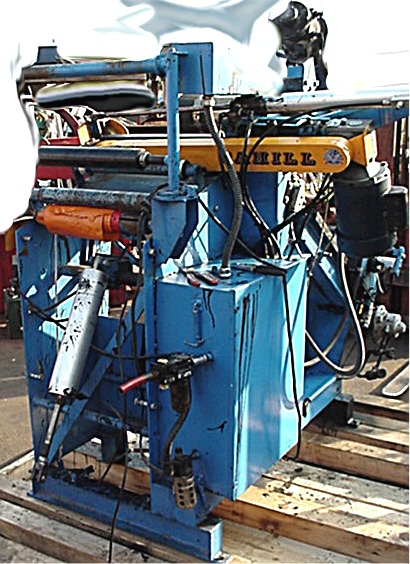

R 23 TREAD BUILDER


  • Builds pre-cure and die stock
  • Builds tires from 21.5 outside diameter to 52" outside diameter
  • Automatically cuts rubber to the proper length
  • Expanding chuck assembly
  • Contoured stitcher/drive roller
  • Carbide blade cuts rubber and texturizes ends at the same time
  • Safety engineered
  • Full cap stitcher (optional)
  • Line light (optional)
  • Powered by air and 115 VAC current





OUTSTANDING PERFORMANCE



  • The R-23 Tread Builder was designed for the production shops. It applies the cushion gum and the tread rubber separately to the tire. This requires the operator to make two applications to the tire allowing him to find nail holes in the casing prior to applying the tread rubber.
  • The tread cutter has been designed to cut the tread to the proper length. As the tread rubber is cut, the carbide coated cutter blade texturizes the butt ends of the rubber so that it is ready to be spliced.
  • The cutter is operated with an air over air system so that the cutter operates smoothly without jerks or lunges. This system uses no oil and eliminates the possibility of contamination of the tread and the mess usually associated with air over oil systems.
  • With the optional secondary stitcher the R-23 is capable of building full cap die stock rubber.
  • The R-23 Tread Builder operates mainly on compressed air using 115 volts AC current to operate the solenoid valves and the cutter motor. Air motors are used to eliminate drift when stopped. This provides a high degree of accuracy when measuring the tread rubber length.
  • Cushioned air cylinders are used, where necessary, to protect the cylinders and component from damage when traveling to their limits with no load.
  • Most machined components are manufactured on the latest computer numerical control equipment to guarantee accuracy and repeatability in machinery.

Due to our policy of continuous product improvement, there may be some differences in appearance and specification from those referred to in the above material.
