DIESEL FUEL INJECTION TESTER AND ADAPTOR KIT



     Back to Service Index   Back to Home  Contact Allstates

Allstate's Of America, Inc. 2595 NW 37 TH. ST. MIAMI, FL. 33142

 800 223 2573,   305 635-4525  Fax 305 635-5353      e-mail    Bob@allstates.com                http://www.allstates.com





CLICK HERE TO SEE 20 HORSEPOWER FUEL INJECTION PUMP TESTER



Click to see Diesel Timing Light Kit

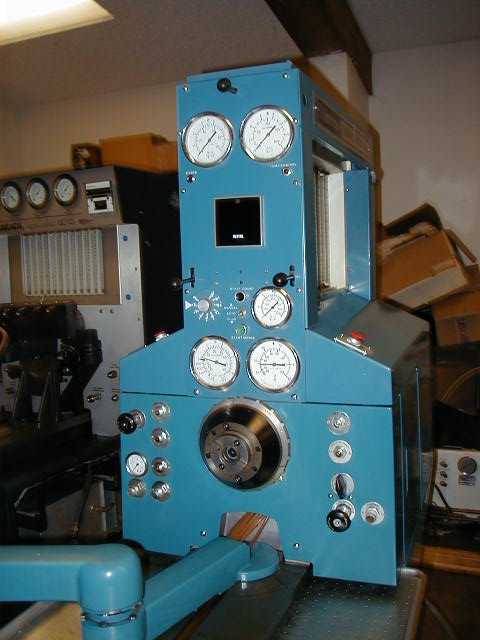

HARTRIDGE 1150 SERIES FUEL INJECTION TEST STAND 740/110 HF100 PUMP UNIT

TAKE A GOOD LOOK!! ONLY 16.2 HOURS!!!

15 Horsepower.

Almost new.

Only 16 hours use.










A Hartridge HA700 10 HP test stand for testing and calibrating most makes and models of mechanical diesel fuel injection pumps including Bosch, American Bosch, Cummins, CAV, Kiki, Zexel, Simms, Yanmar. An essential piece of equipment for a diesel fuel injection shop. It is a Hartridge Type 01 UV, 7.4 kW thyristor-controlled direct drive 60 cycle, 239v, 3-phase motor. Serial number 787-106/B/6. It incorporates a closed loop, zero-droop speed control, back leakage flow gauge, 8 cylinder piston-in-graduate metering system, and duel built-in dc power supplies. Basic mounting bracket, anti backlash coupling and injector mount are included. Not included are the pump, injectors, test lines and VE pump adapter. It has been in very light, intermittent, non-production use for the ten years  .


A video made on November 25, 2008 shows the test stand in operation. It has been posted on YouTube.

http://www.youtube.com/watch?v=gcmSHR0jrYE

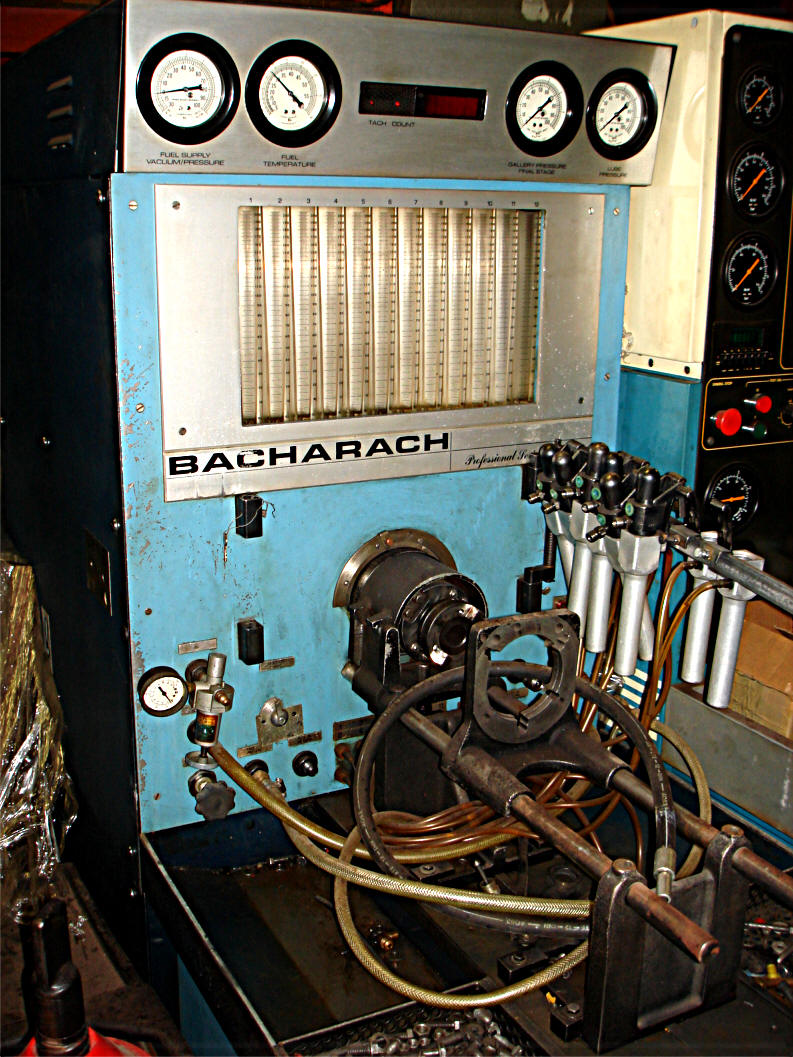

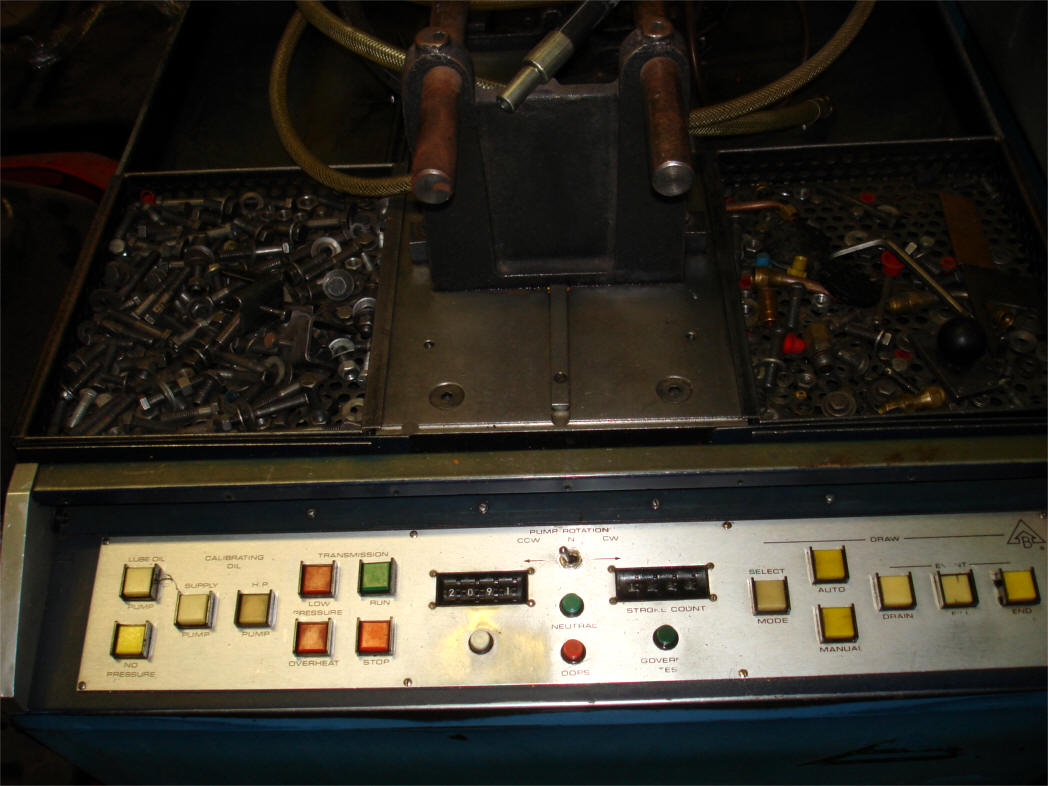

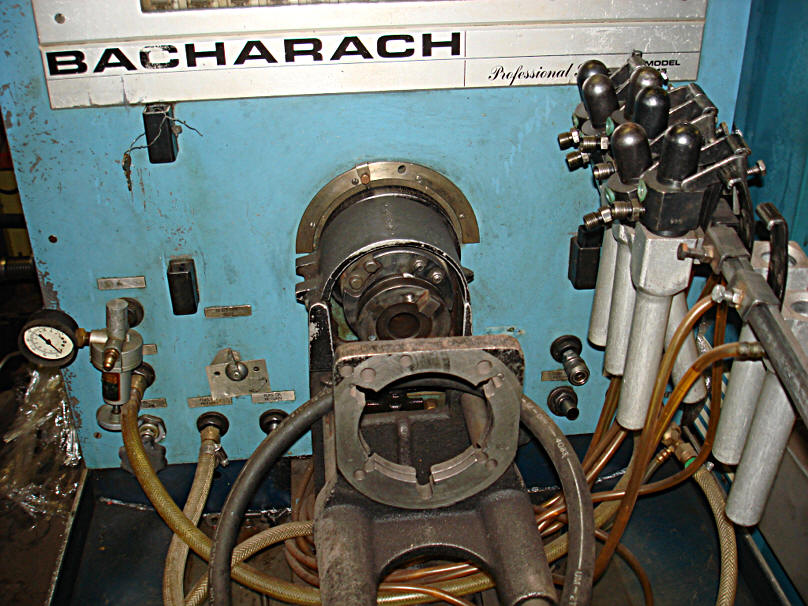

BACHARACH MODEL 15 TWELVE (12 CYLINDER)  15 HORSEPOWER DIESEL PUMP TESTER
15 HP Bacharach model 15 test bench with very little use on it.

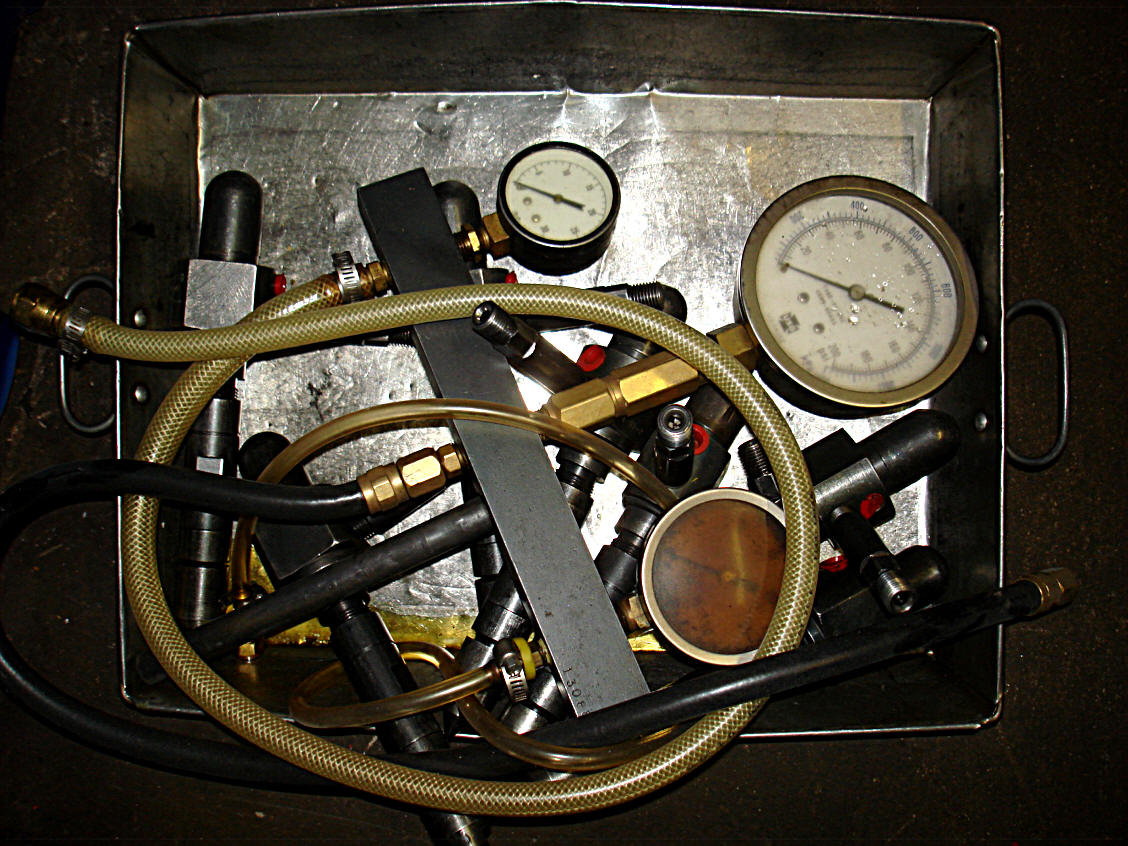

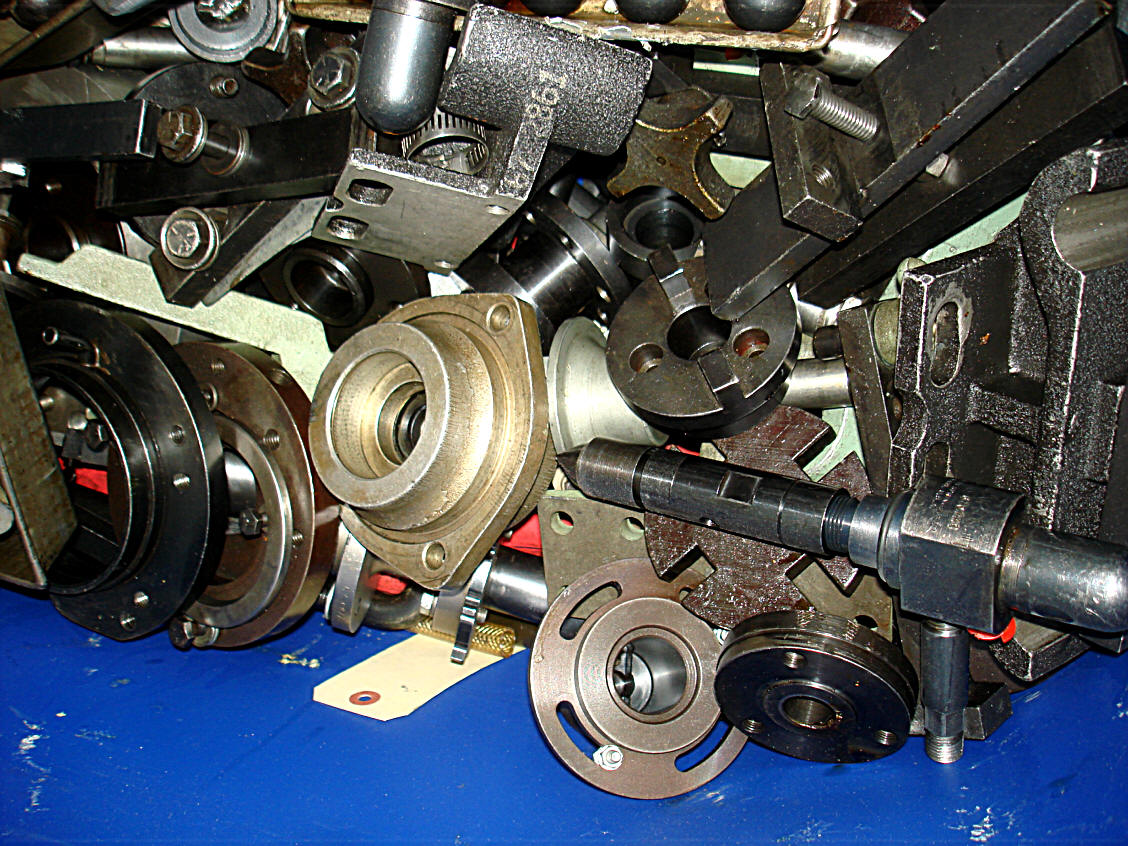

Loaded with tooling and accessories. Perfect condition.

Can test 12 cylinder pumps.

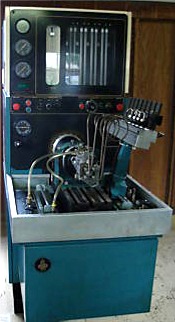

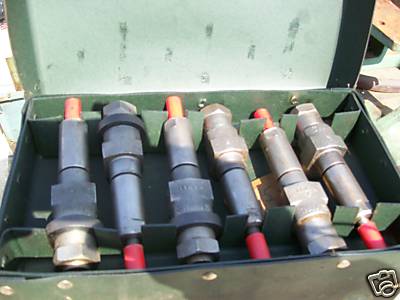

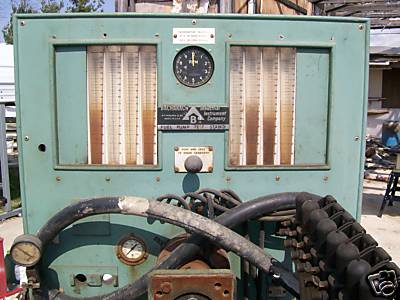

Bacharach Model 7000 5hp. This is 3 phase. It has some accessories with it plus the calibrating injectors. Purchased this from a John Deere dealer about 8 years ago. It was working when they took it out and quit rebuilding pumps themselves.

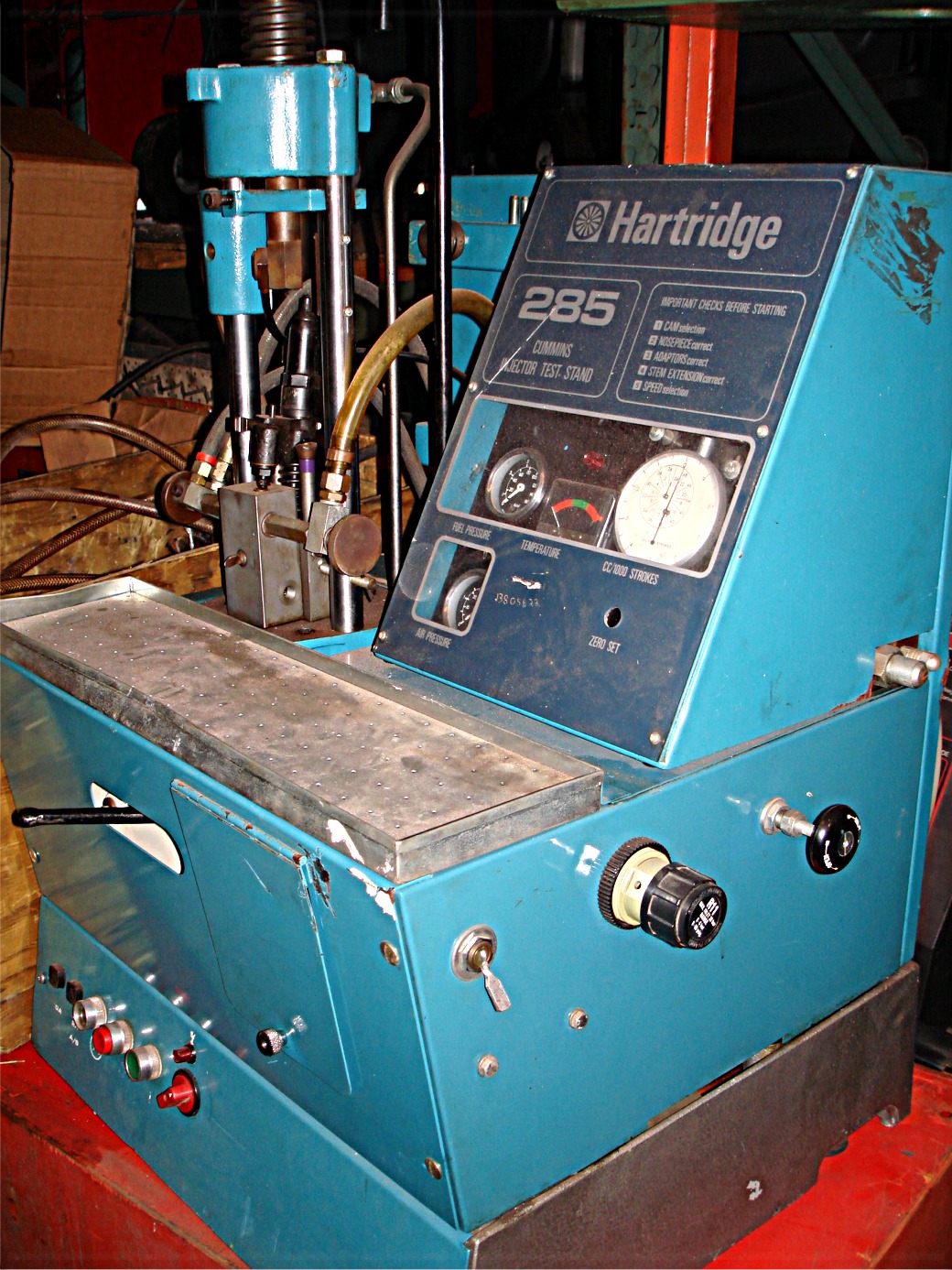

Hartdrige model 285 Diesel calibrator. Beautiful condition with

very little use on it. Includes many accessories





CUMMINS SERIES 120 DIESEL FUEL INJECTION PUMP

TEST AND CALIBRATION STAND.

WORKS WITH ALL CUMMINS PT AND AFC FUEL PUMPS.

COMES WITH MANUALS FOR OPERATION AND SERVICE.


CLICK TO SEE MANUAL-SPECIFICATIONS



HA123 Test Stand

The HA123 Test Stand tests all Cummins PT pumps including the high flow KV12 and KV16 types (with an optional adaptor kit HF016). The HA123 Test Stand also incorporates features that enable A.F.C. pumps and pumps fitted with aneroid valves to be tested. To comply with latest standards, the flowmeters are calibrated to the current Cummins test oil specification.

HA123





HARTRIDGE MODEL 2500  15 HP  12 CYLINDER, BROCHURE

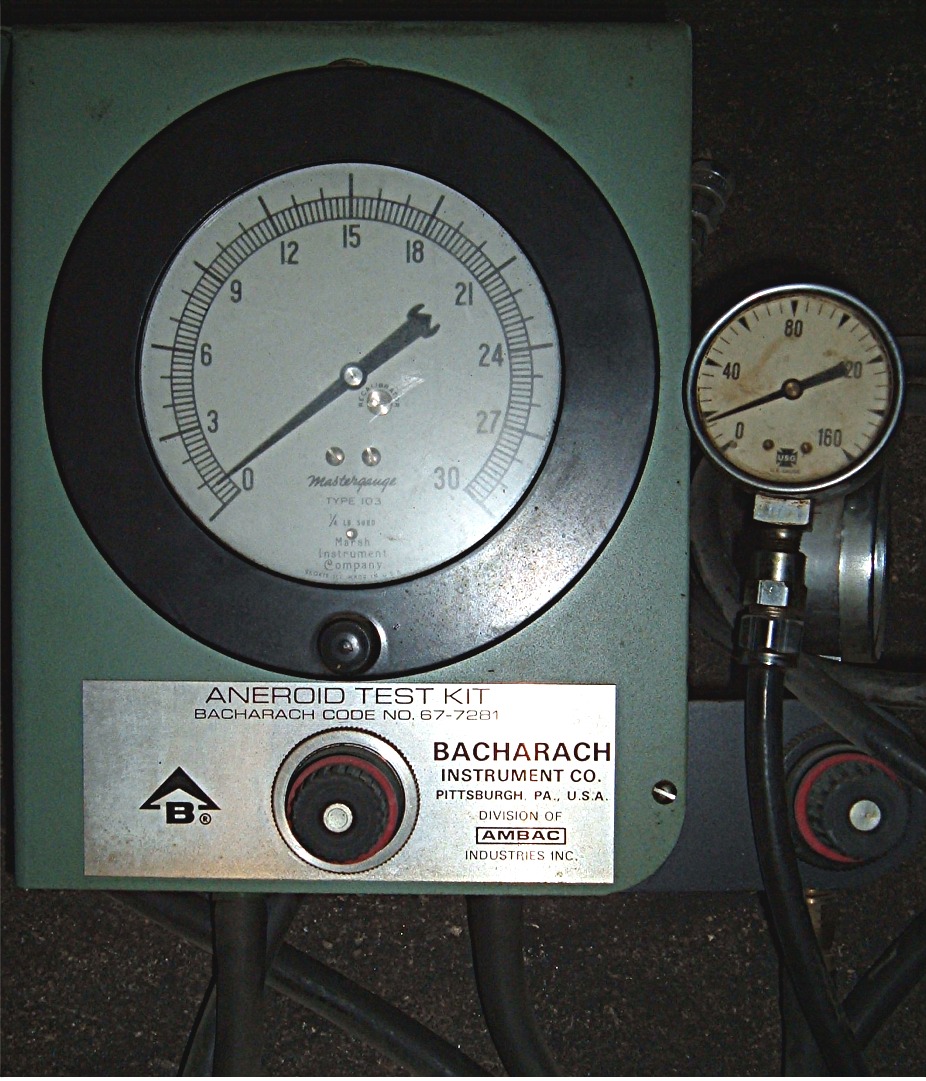

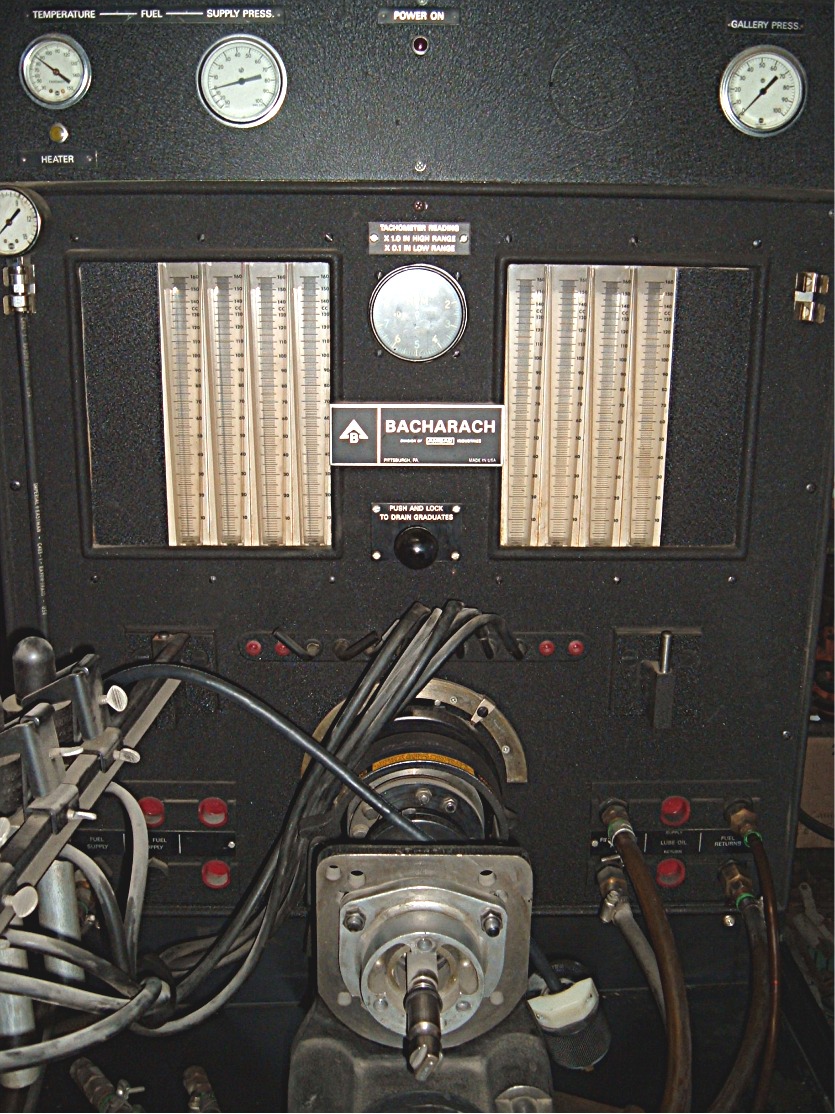

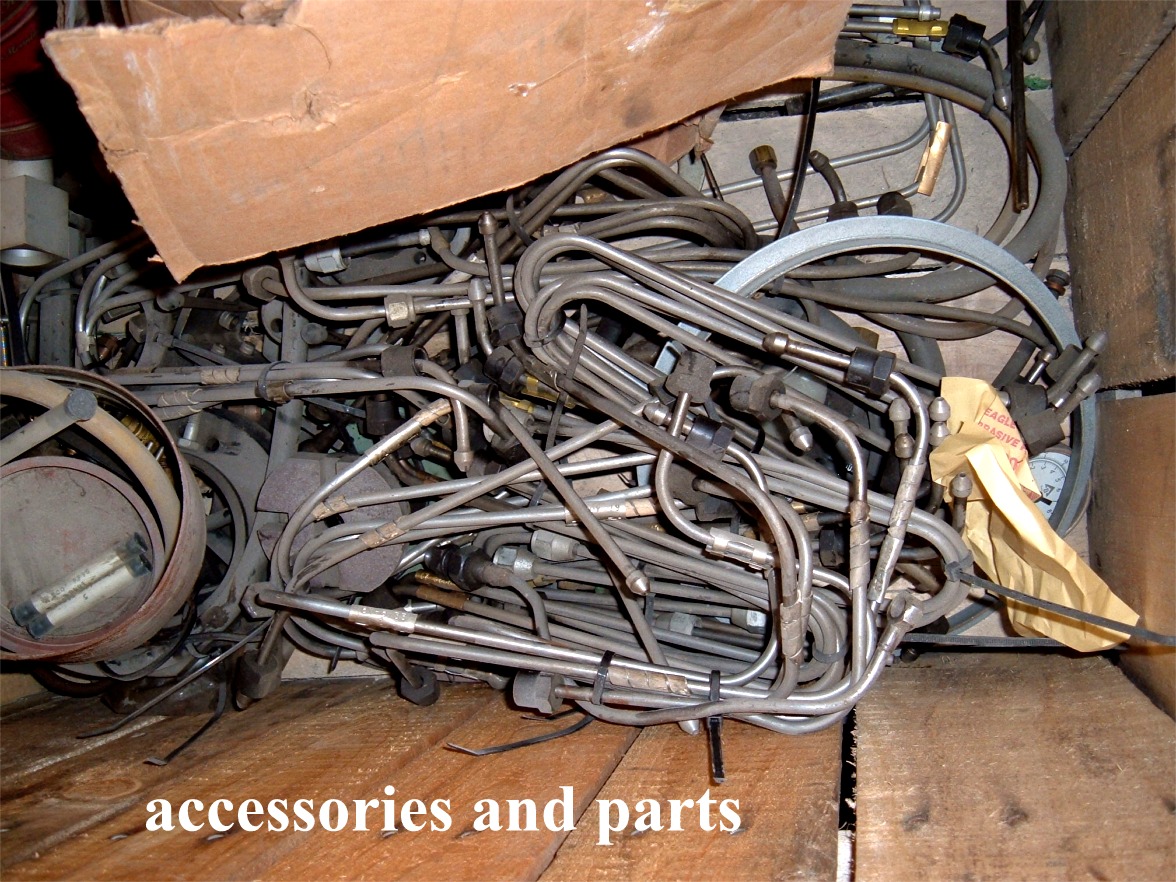

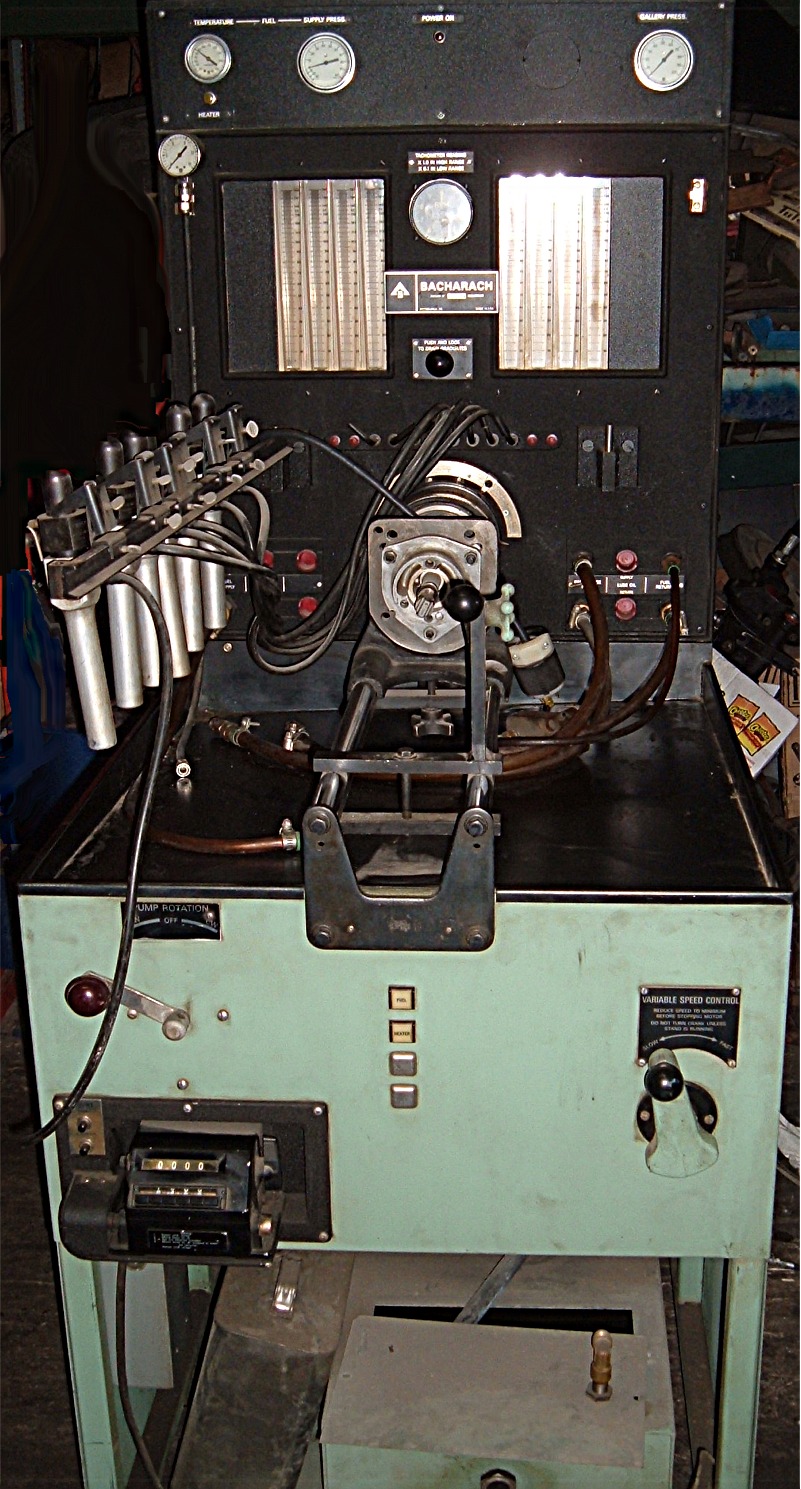

Bacharach 7.5 HP Diesel Test bench with accessories. Great condition













CARBONCLEAN DUAL MCS 352

Works on both Diesel and Gasoline

Two-line System for more

 effective cleaning

Portable - 12 volt power

Service Benefits include:

Improved performance

improved Mileage

Emissions Reduction

Technical specifications

Power supply 12 volts DC

Timer 0  - 60 minutes

Tanks 2 external 2 litre

Gasoline pump - 30 gals. hour

Diesel pump - 72 gal. low pressure

Fuel pressure gauges

Filter 2 replaceable spin-on filters

Ship weight  85 lbs.

Ship height   41"

Cabinet  Rotomolded

One year warranty

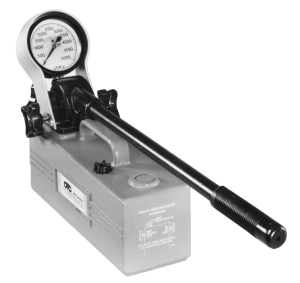

For troubleshooting diesel fuel injector nozzles, you need this nozzle testing system. You can test for leakage "pop-off" pressure, spray pattern, and chatter. With proper adapters you can troubleshoot nozzles on certain American or imported cars and trucks, and agricultural and construction equipment.

Nozlrater features a rugged, yet lightweight, reservoir that holds a big 7/10 gallon of fuel. It is equipped with a 2-micron filter that traps impurities and is easily replaceable. The large, easy-to-read high pressure, dual scale gauge is protected by a special guard and includes a maximum indicator needle to record maximum pressure reached.

Totally portable for field use - weighs just less than 16 lbs. empty - or bench-mount it using the holes in the base.



Specifications:
Overall Width 5-3/4"
Overall Length (includes handle) 26"
Overall Height 11-1/4"
Weight (empty) 15 lbs., 10 oz.
Max. Pressure 5000 p.s.i. (350 bar)
Max. Reservoir Capacity .692 Gallons of diesel fuel (160 cu. in.)
Usable Reservoir Capacity .628 Gallons of diesel fuel (145 cu. in.)
Outlet Port For 3/8" tube
Gauge Calibrated 0-5000 p.s.i. (350 bar). Has 3-1/2" dial face with maximum reading indicator needle.
Gauge Connection 1/4" NPT female
Stroke of 1/2" Diameter Piston 3/4"
Volume Per Full Stroke .147 cu. in. (2.4 cc)
Intake Filter 2 Micron



Use with Diesel Nozzle Tester Adapter Set No. OTC 4201



PRICE WITH ADAPTOR SET IS $1,450.00      17 adaptors to test all popular engines





BACHARACH MODEL 875 DIESEL FUEL PUMP TEST AND CALIBRATE STAND. WAS IN A TECHNICAL SCHOOL AND NEVER USED IN PRODUCTION. LOOKS ALMOST LIKE A NEW ONE.
