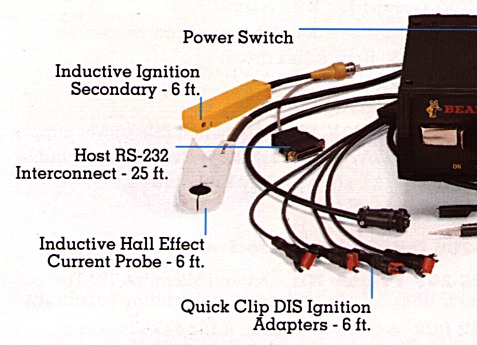

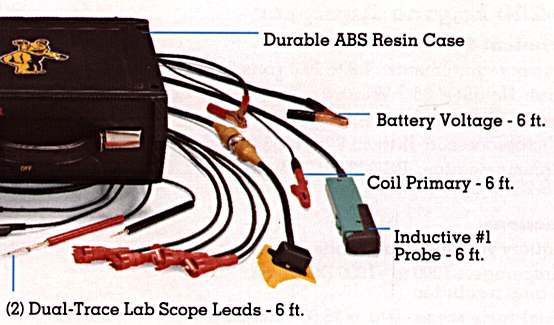

The Bear analyzer module is connected to the host computer and is easily transported to the vehicle.

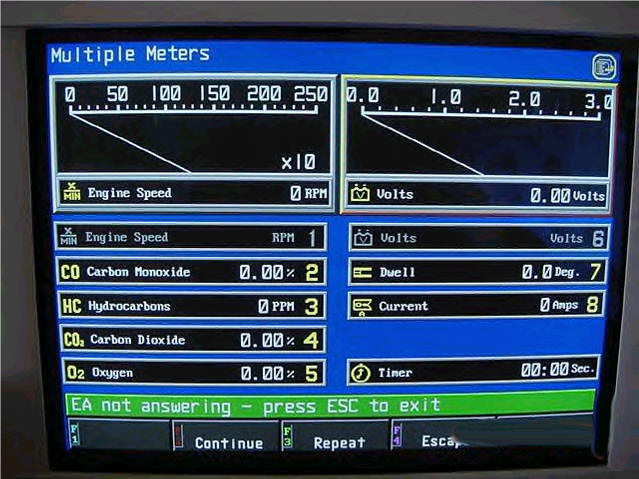

MULTIPLE METERS

Select the test values that are to be displayed in analog meter or digital format. Change the meters from volts, ohms, RPM, amps, dwell, timing or 4 gas. All basic engine adjustment readings are available on one easy to read and use screen.

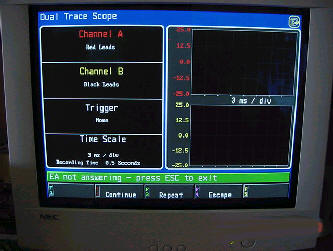

DUAL TRACE LAB SCOPE.

 Two isolated sets of leads allow complete dual-trace lab scope capability. Adjustable cursors for precise measurement of time, voltage and frequency. Special mode allows waveforms to be superimposed for accurate comparison.

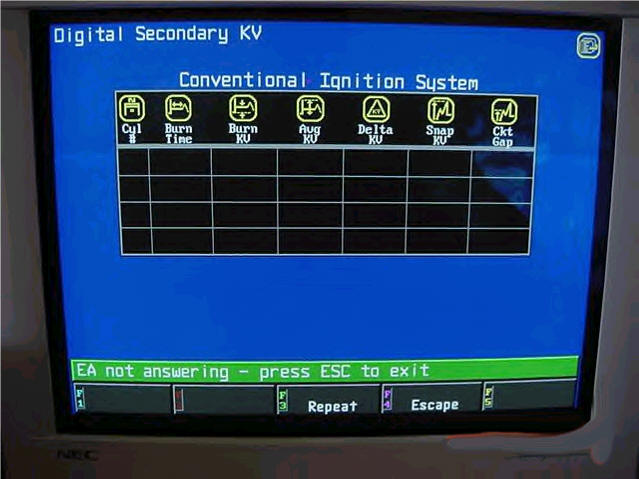

DIGITAL SECONDARY KV

 Digital display of all DIS and conventional ignition firing voltages, including both compression and exhaust firings. No inline connectors or adaptors. All inductive hookups for fast testing.

CYLINDER MISS RECALL.

Stores consecutive cylinder firings including waveforms, sparkplug burn voltage and burn time. Individual cylinder firings may them be played back to easily identify intermittent cylinder misfires.

CRANKING COMPRESSION.

The BEA has the ability to measure the relative cranking compression of each cylinder based on starter current draw. This allows the technician to isolate cylinder compression faults quickly.

BATTERY-STARTER-CHARGING.

Complete electrical system testing capabilities and related system diagnostics. Test parameters include battery, starter and alternator diode condition, charging current and regulator voltage.

POWER CHECKS

The Bear engine analyzer offers three different cylinder power tests for testing flexibility including a unique cylinder performance test for DIS ignition systems.

PARADE PEAKS

Live cylinder KVs are displayed in bar graph form by automatically tracking minimum and maximum cylinder firing voltages. Average KV is calculated and displayed graphically.
