Shanghai Boring Bar

Return to Machine Index   Return to Home  Contact Allstates

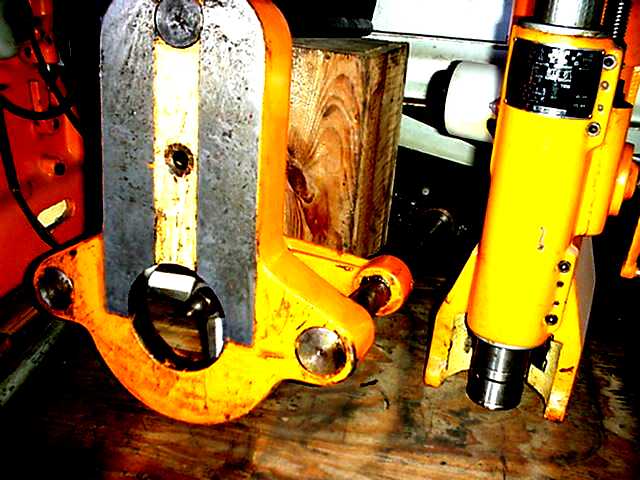

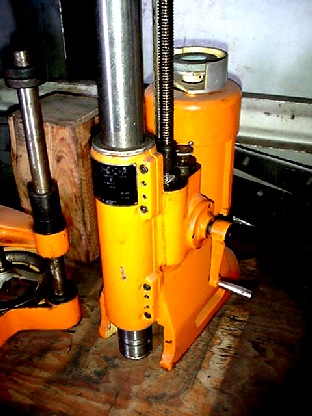

This is the small engine boring bar, shown with the INCLUDED small cylinder stand. the complete tool kit is also included.




Model

 T8014A

T8016A

Boring diameter

65 140 mm

80 165 mm

Max. boring depth

300 mm

400 mm

Spindle speed

250, 380 r/min

200, 300 r/min

Spindle feed

0.11 mm/r

0.12 mm/r

Spindle quick reset

636 mm/sec

780 mm/sec

Overall dimensions

320x330x850 mm

360x345x1100 mm

Machine weight

62 kg

85 kg





WE STOCK THE MODEL T8014A. IT IS A KWIKWAY COPY.
